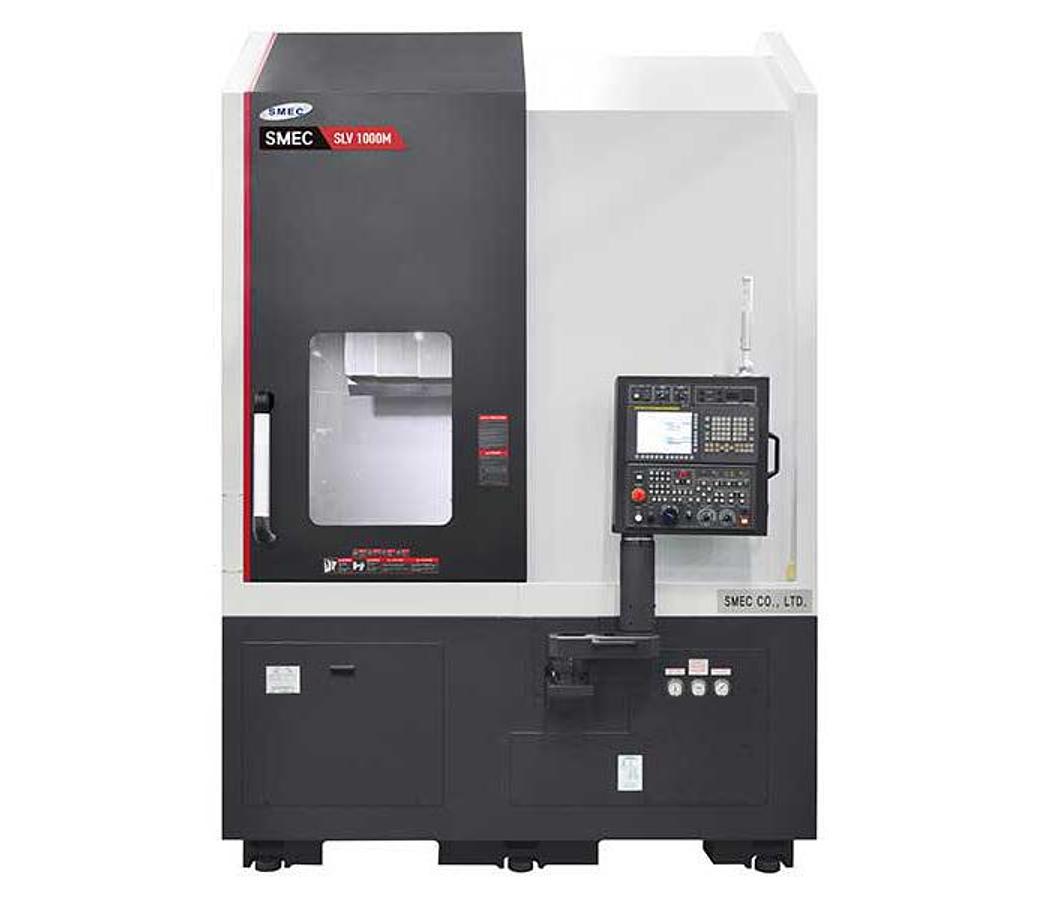

2025 SMEC SLV 1000[M]-A Vertical Turning Center

2025 SMEC SLV 1000[M]-A Vertical Turning Center

or
Call 213-393-6196

Description

Capacity Chuck size (inch) 24 Max Turing Dia. (mm) 1000 Max bar working Dia. (mm) Max Turning Length (mm) 955 Swing Over Bed(mm) 1100 Travel Travels (mm) X: 540 / Y: / Z: 955 Rapid Travels Rate (X/Y/Z) X: 20 / Y: / Z: 20 Spindle Spindle Speed (RPM) 1800 Spindle Motor (Cont./Max.) (KW) 37 / 55 Draw Tube ID (mm) Turret Number of Tool 12 [BMT85] Machine Size Length (mm) 2510 Height (mm) 3030 Width (mm) 3934 Weight (kgf) 17000 (): Option / []: Mill type Equipped With:

Specifications

ManufacturerSMEC
ModelSLV 1000[M]-A
Year2025
ConditionNew
