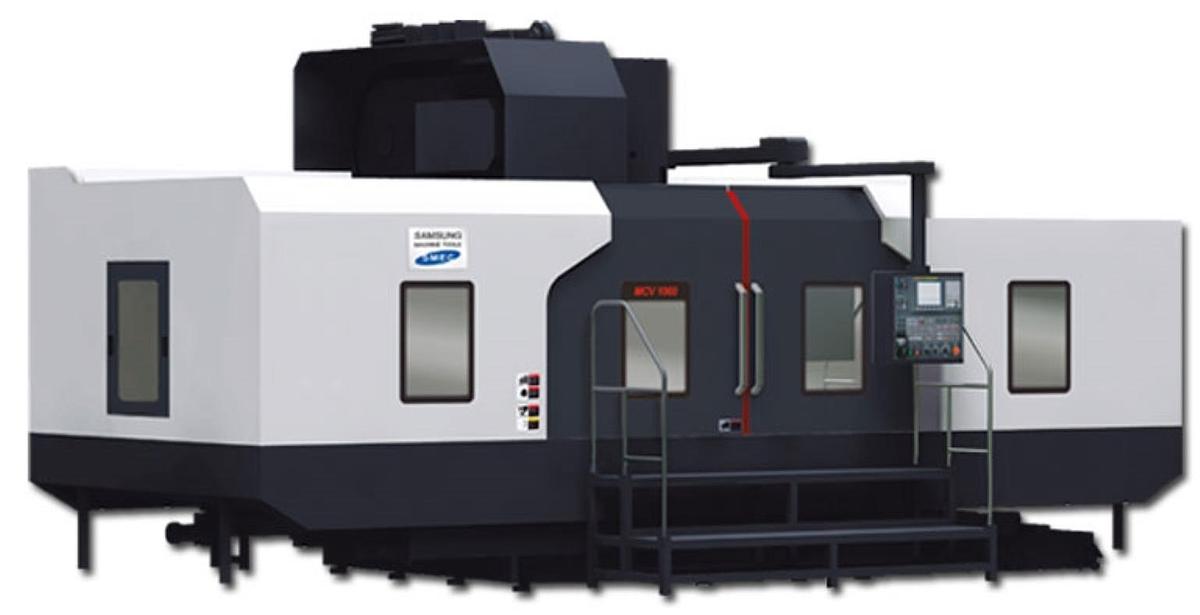

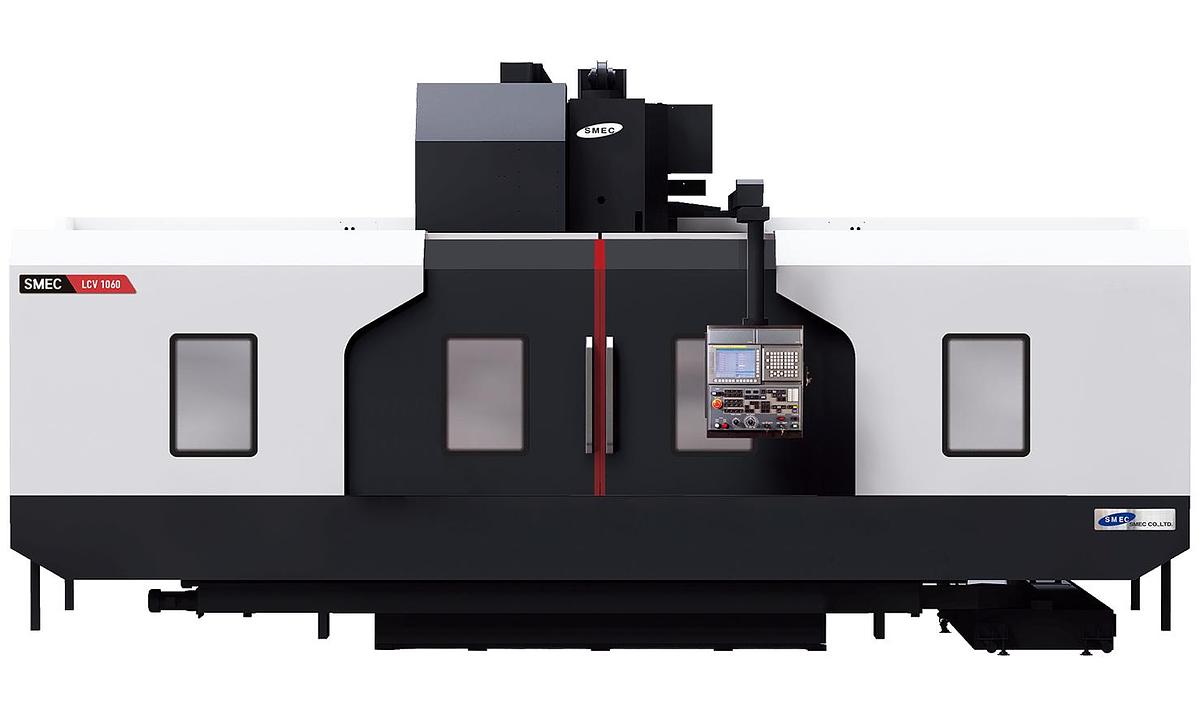

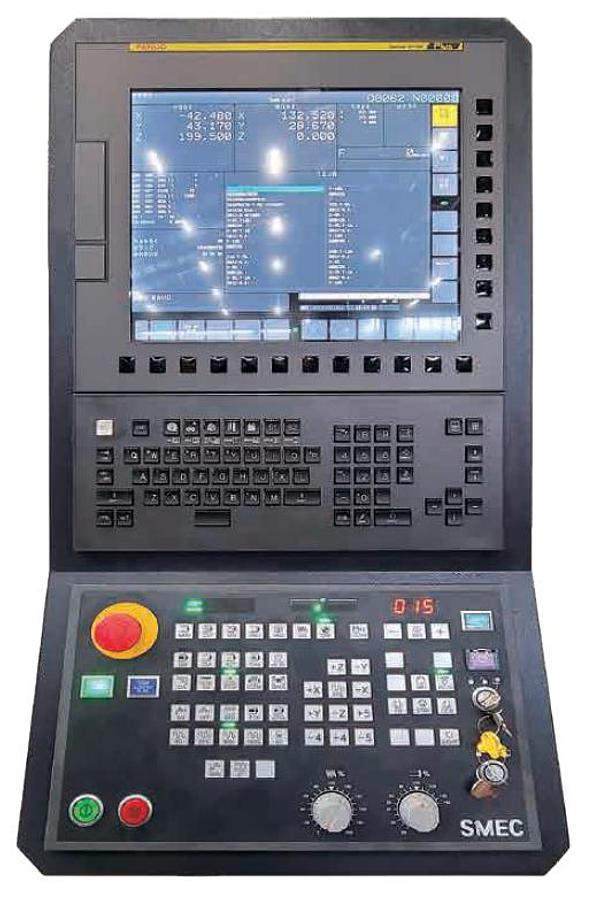

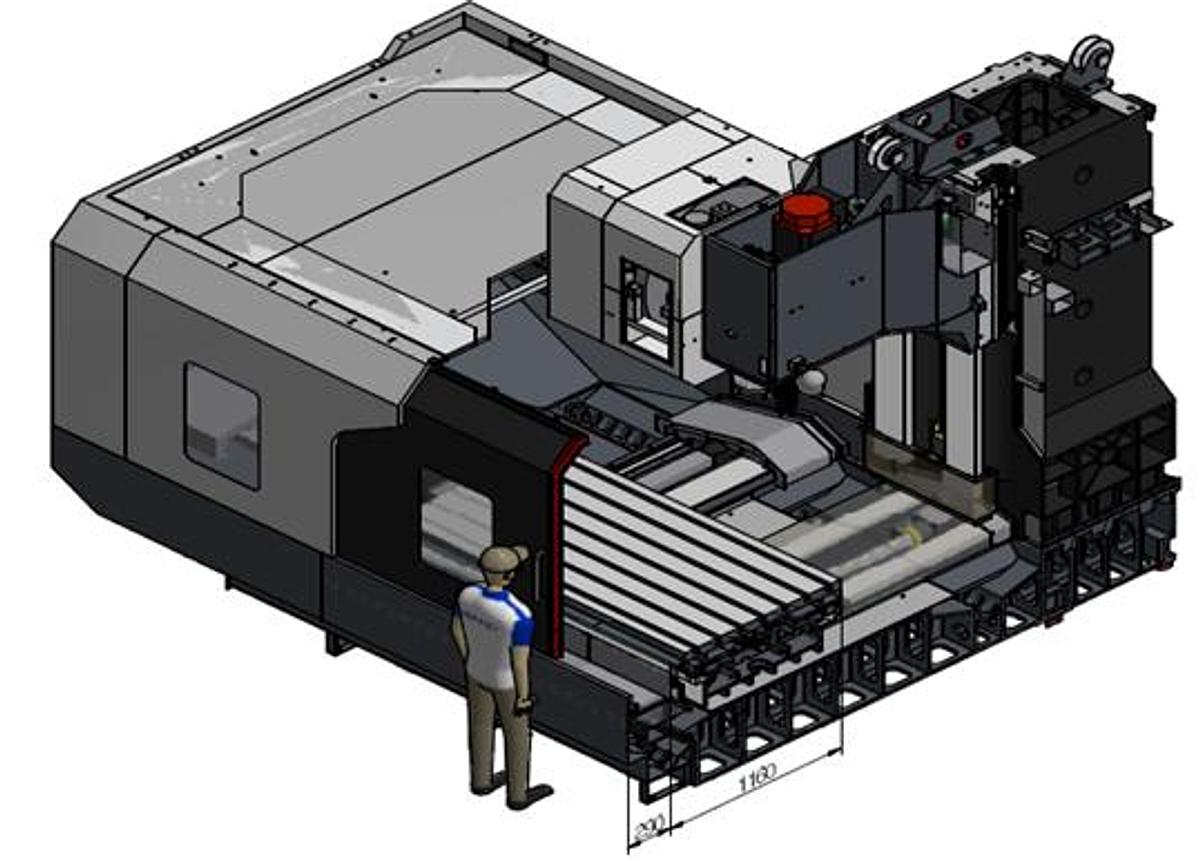

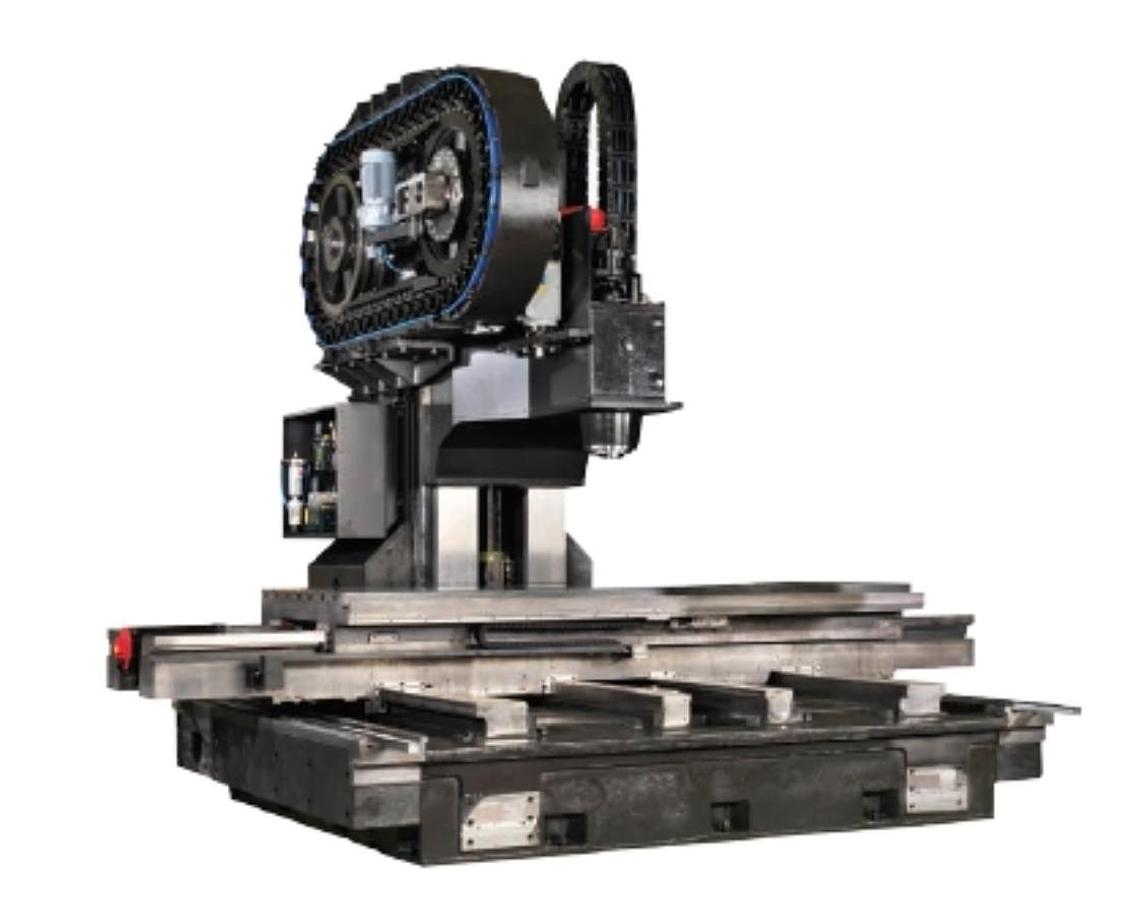

2025 SMEC LCV 850 Box Guide Type Machining Center

CAPACITY X axis travel 78.74" Y axis travel 33.46" Z axis travel 31.50" Table size 80.71" x 33.46" Table loading capacity 6,614 lbs. Table T-slot spacing x width (5)- 4.33" x 0.7" SPINDLE Distance from tabletop to spindle nose 7.87"~ 39.37" Distance from column to spindle center 37.40" Spindle taper CAT50 Spindle speed 6,000 rpm AC spindle motor (30 min) 25 hp Maximum spindle torque (Max) 565.7 ft.-lbs. Spindle Drive Method 2 Speed Gearbox AUTO TOOL CHANGER Magazine capacity 40 Tool shank CAT50 Pull stud type 90� type Maximum tool diameter [adjacent empty] 4.33" [7.87"] Maximum tool length 11.81" Maximum tool weight 33.1 lbs. Tool selection method Random Tool changing time (T-T) 2.5 seconds FEED RATE Rapid traverse (X / Y / Z) 787 ipm / 787 ipm / 630 ipm Cutting feed rate ipm 394 ipm SERVO DRIVE SYSTEM Feed motor (X / Y / Z) 10 hp / 8.1 hp / 10 hp Ballscrew diameter (X / Y / Z) 1.97" / 1.97" /1.97" Axis feed thrust, Continuous (X / Y / Z) 4,824 lbs/ 6,038 lbs/ 4,846 lbs Slide ways (X / Y / Z) Box Way Slide Way Span (X / Y / Z) 26.77" / 104.39" / 25.59" Slide Way Width (X / Y / Z) 5.71" / 7.87" / 8.27" Position accuracy �0.0001" Repeatability �0.00008" GENERAL Floor space (L x W x H) 165" x 217" x 148" Machine weight 39,683 lbs. Power required 48 kVA Voltage 220V + 10% / 3 Phase Equipped With:SMEC OPTION PACKAGE: 6,000 rpm with Spindle Cooling Unit 40 Tools Double Arm ATC 290 psi (Max) Through-Spindle-Coolant System Oil Skimme Enclosed Splash Guard 4th Axis Interface Prep Kit Renishaw Probe Ready Kit (OMI-2T) Rigid Tapping Manual Guide i AI Contour Control II Z-Axis HP Upgrade with 4,846 lbs. Continuous Thrust Lift Up Chip Conveyor Spindle Air Blow, External Coolant Gun 3 Color Tower Light ADDITIONAL OPTIONS: RENISHAW-PR - Renishaw OMP60 (AA) Spindle Probe RENISHAW-TS - Renishaw OTS (AA) Tool Setter
