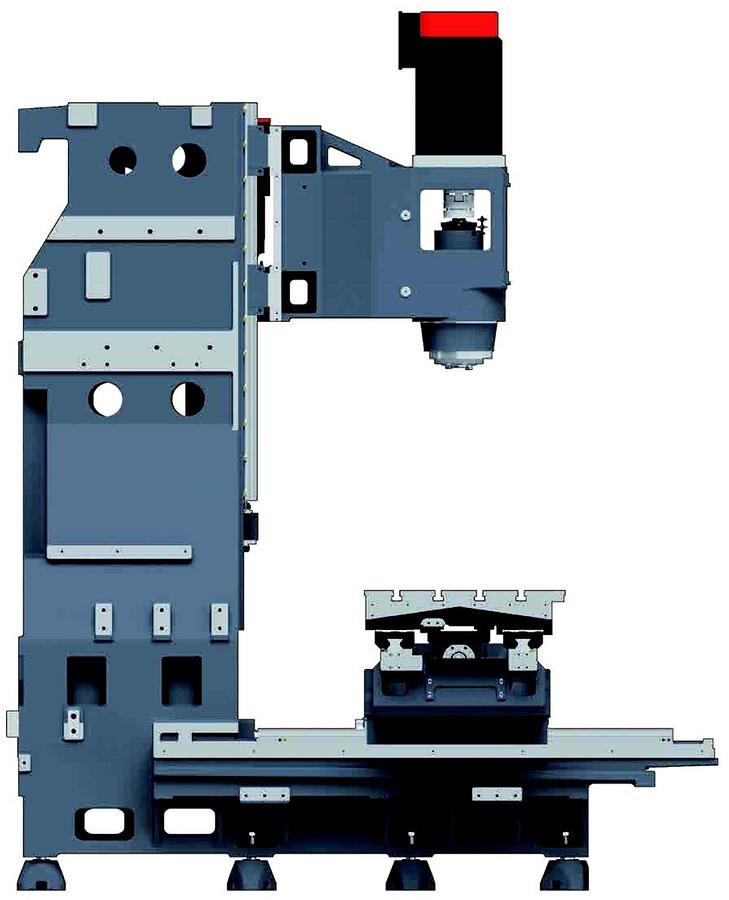

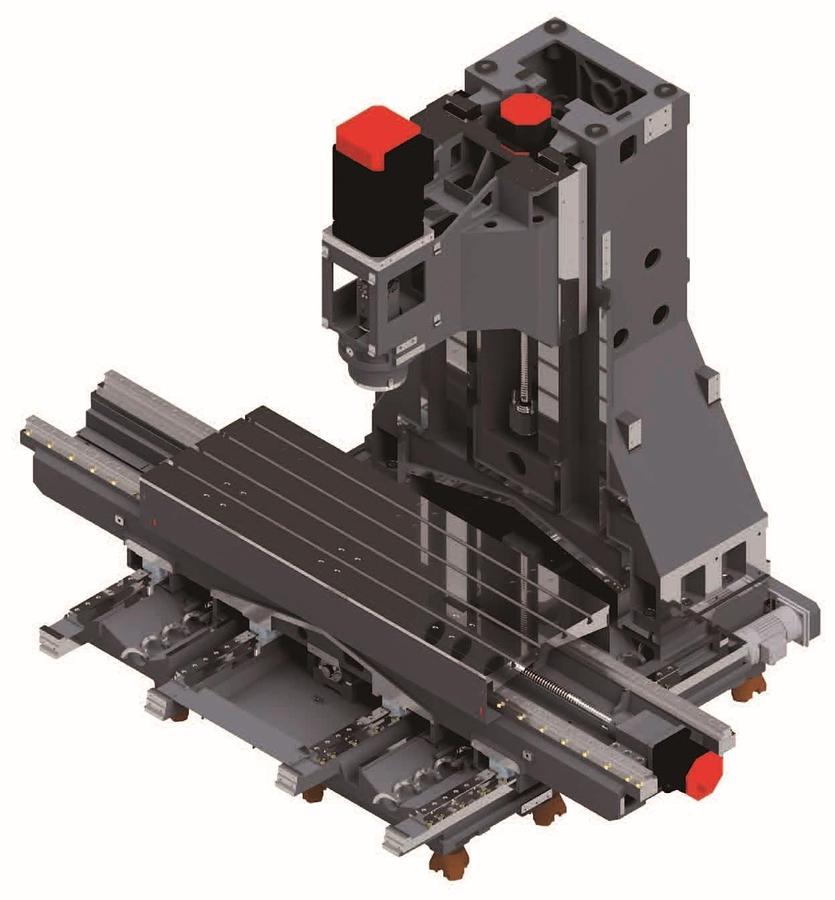

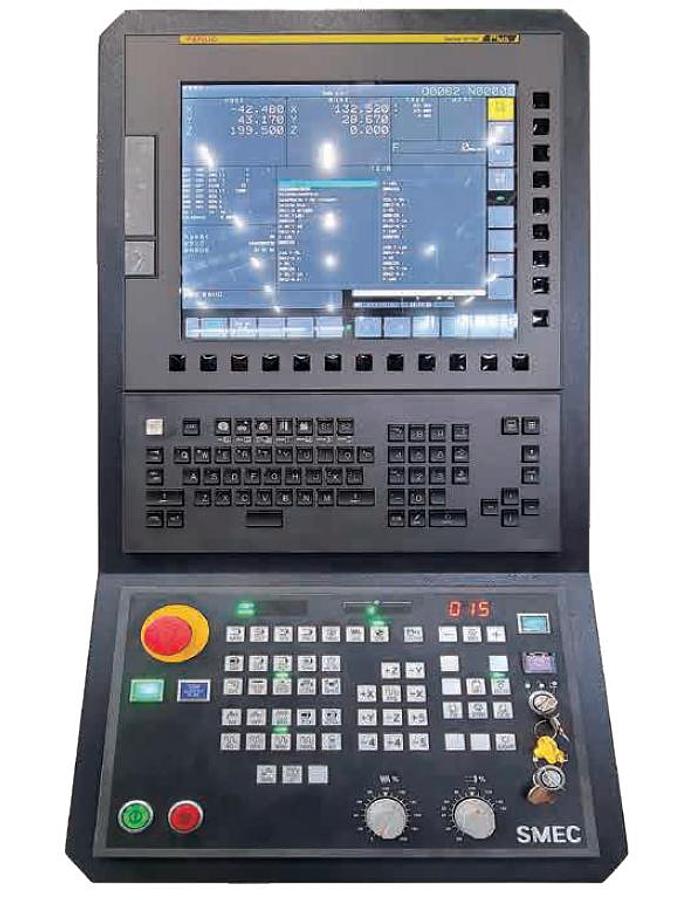

SMEC HYST 6700 12K DIRECT Hybrid Type Machining Center

CAPACITY X axis travel 53.15" Y axis travel 26.38" Z axis travel 25.60" Table size 26.38" x 61.03" Table loading capacity 2,866 lbs. Table T-slot spacing x width (5) - 4.93" x 0.71" SPINDLE Distance from table top to spindle nose 7.88"~33.47" Distance from column to spindle center 25.60 Spindle taper CAT40 (Big Plus) Spindle speed 12,000 rpm AC spindle motor (Max) 25 hp Maximum spindle torque (Max) 86.8 ft.-lbs. Spindle Drive Method Direct Drive AUTO TOOL CHANGER Magazine capacity 30 Tool shank CAT40 (Big Plus) Pull stud type MAS P40T-1 Maximum tool diameter [adjacent empty] 3.15" [4.93"] Maximum tool length 11.82" Maximum tool weight 17.64 lbs Tool selection method Memory Random Tool changing time (T-T) 1.3(60Hz) sec. FEED RATE Rapid traverse (X / Y / Z) 1,417 ipm/ 1,417 ipm/ 1,181 ipm Cutting feed rate ipm 590.56 ipm SERVO DRIVE SYSTEM Feed motor (X / Y / Z) 4 / 4 / 7 (kw) Ballscrew diameter (X / Y / Z) 1.57" / 1.57" / 1.57" Axis feed thrust, Continuous (X / Y / Z) 3498 / 3419 x 4862 lbs. Slide ways (X / Y / Z) LM Guide / LM Guide /Box Guide Slide way span (X / Y / Z) 18.97�� / 42.12" x 16.92" Slide way width (X / Y / Z) 1.77" / 1.77" / 4.72" Position accuracy �0.0001" Repeatability �0.00008" GENERAL Floor space (L x W x H) 176.70" x 99.49" x 119.89" Machine weight 22,046 lbs. Power required 32 kVA Voltage 220V �10% / 3 Phase CNC system Fanuc 0i-MF PLUS (15" LCD) SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 146" x 124" x 146" (27,338 lbs.) Crate #2 (Chip Conveyor) TBD ( TBD lbs.) Crate #3 (Oil Cooler) TBD ( TBD lbs.) Equipped With:STANDARD EQUIPMENT Built-in Y-Axis (internal) screw conveyors Programmable and data protection key switch Machine work light: LED LAMP Coolant system with separate coolant tank Telescopic way covers Table enclosure splash guard Spindle load meter Lubrication system Portable manual pulse generator Leveling tools Transportation parts Machine Manuals: one (1) each (Instruction, Operating, Part List, Electric Circuit Diagrams) Fanuc Manuals: one (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators volumes 1 and 2) in USB SMEC A PACKAGE: 12,000 rpm with Spindle Cooling Unit 30 Tools Double Arm ATC 290 psi (Max) Through-Spindle Coolant System Oil Skimmer 4th Axis Interface Prep Kit Renishaw Probe Ready Kit (OMI-2T) Rigid Tapping Manual Guide i AI Contour Control II SMEC A VALUE PACKAGE: (Worth $11,400 - No Charge) Chip Conveyor Spindle Air Blow, External Coolant Gun 3 Color Tower Light 4th Axis Interface, Alpha Drive up to 250mm Table ............. $ 5,520.00 Renishaw OMP60 (AA) Spindle Probe ................................... $ 4,880.00 Renishaw OTS (AA) Tool Setter ............................................. $ 2,540.00
