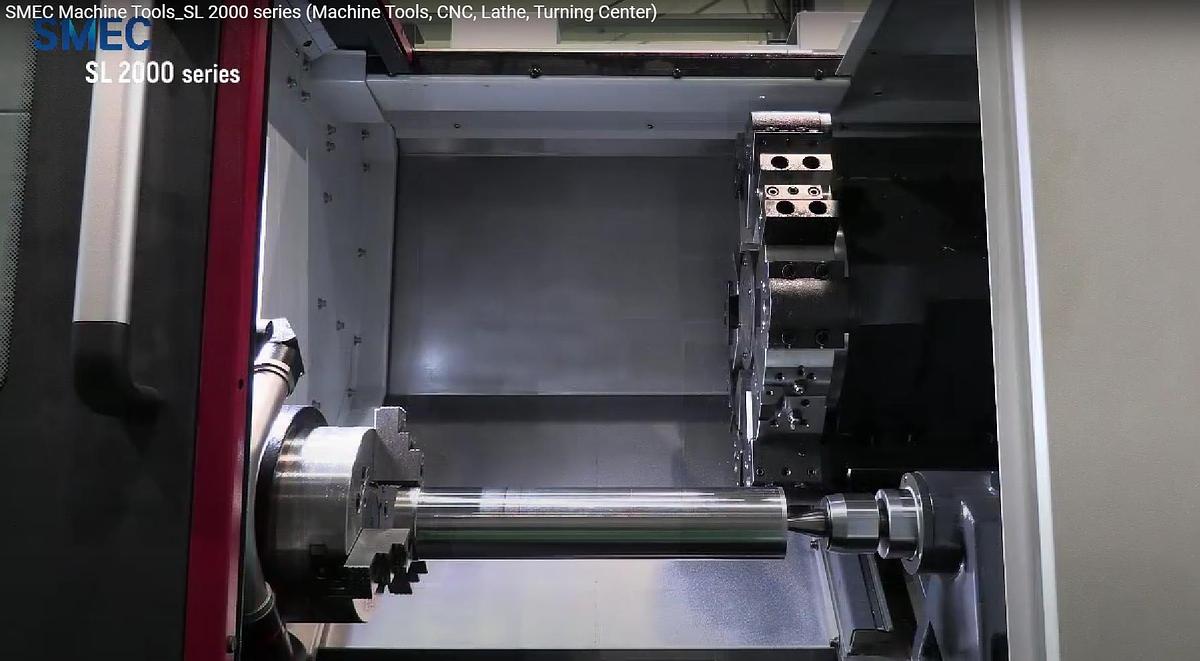

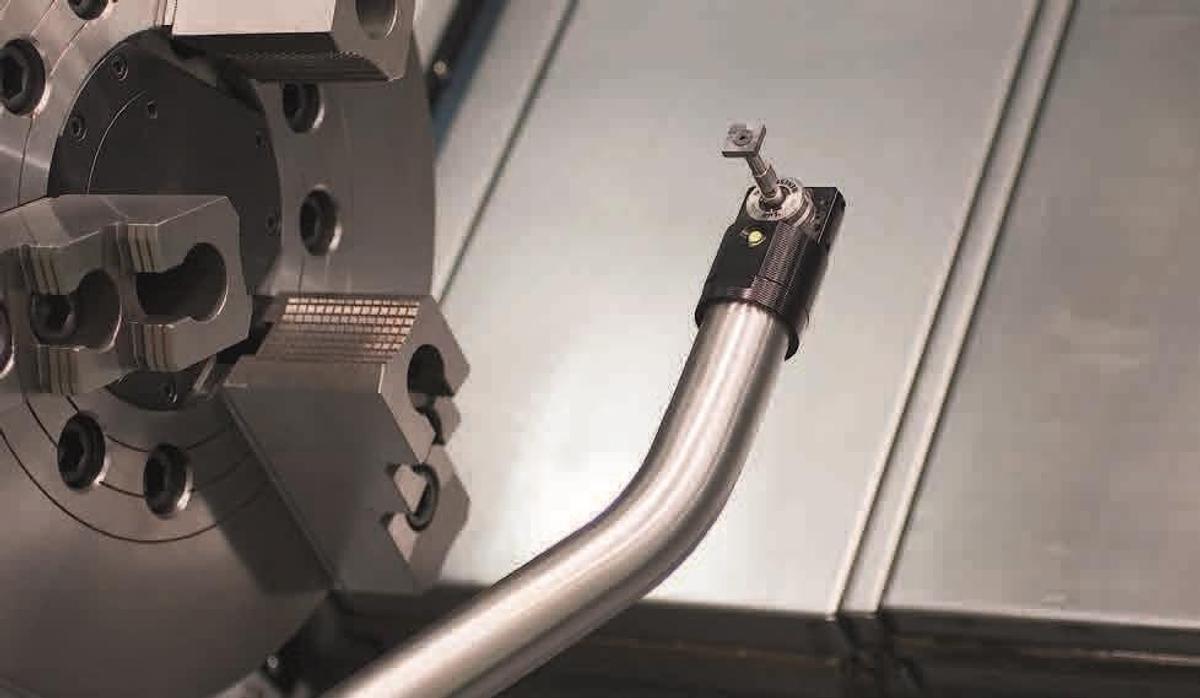

SMEC SL 2000A Box Guide Way Turning Center - **SERIAL NUMBER** S2000AE-00071

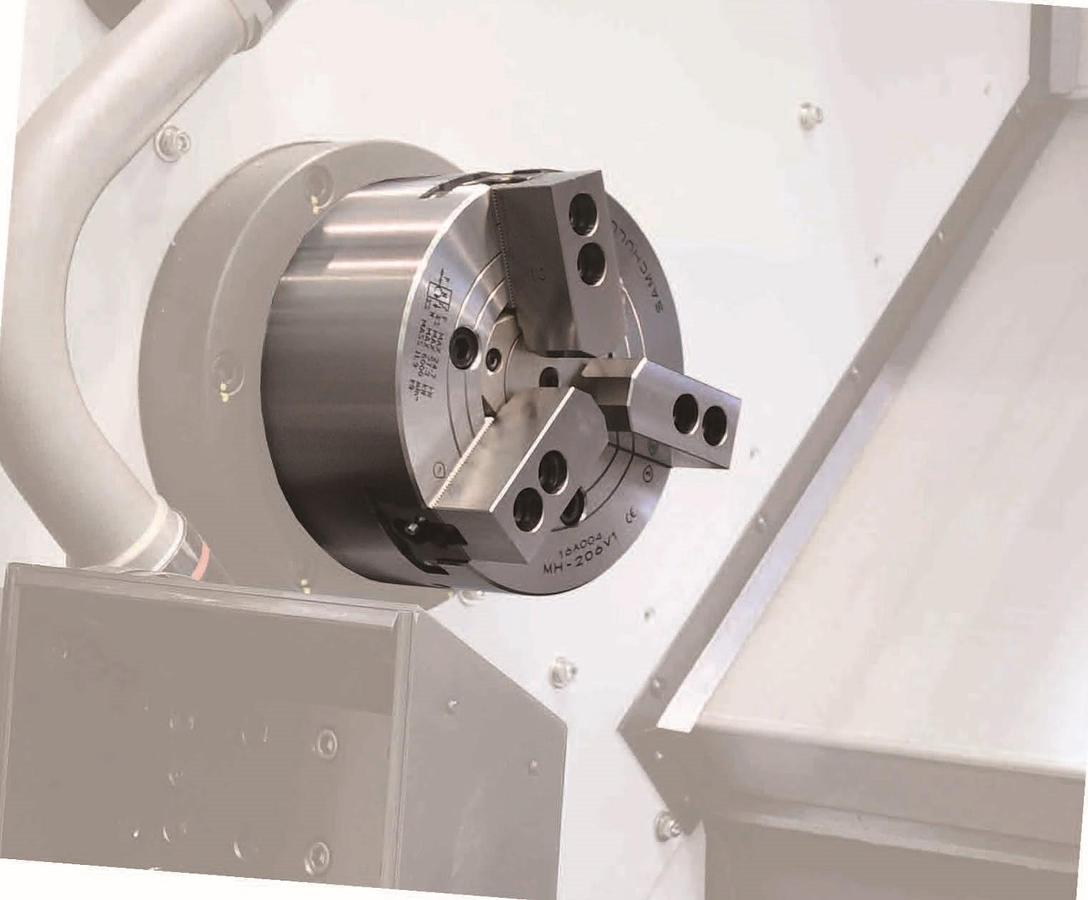

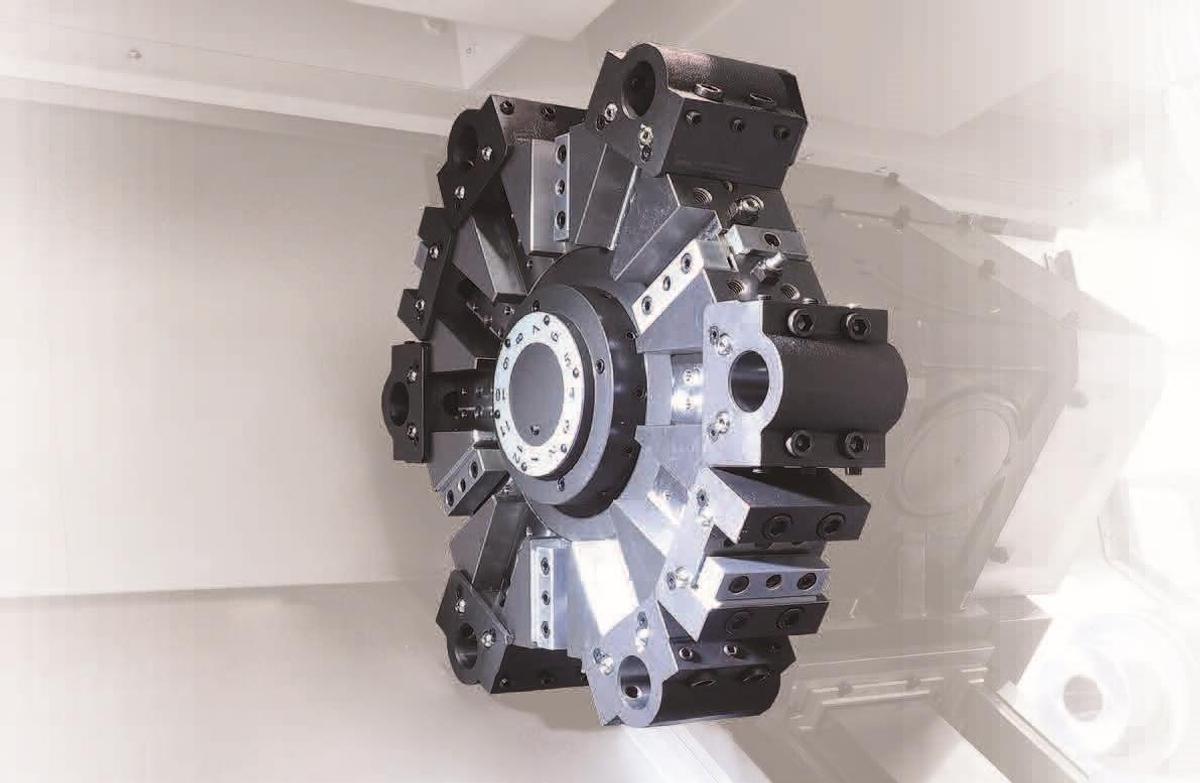

CAPACITY Swing over the bed 22.44" Swing over the cross slide 18.11" Maximum turning diameter 14.17" Maximum turning length 21.25" MAIN SPINDLE Chuck size 6" Spindle nose A2-5 (ASA) Main spindle motor (Duty / Cont.) 25 / 20 hp Spindle speed 6,000 rpm Bore diameter 2.40" Draw tube ID 2.04" Spindle torque (Max) 173.7 ft.-lbs. Spindle drive method Belt BED, SLIDE & CARRIAGE X axis travel 8.26" Z axis travel 22.04" Rapid traverse (X / Z) 944 ipm/1181 ipm Guide ways (X / Z) Box Way Bed structure 45deg Slant bed Ballscrew diameter (X / Z) 1.10" / 1.57" Axis feed thrust, Maximum (X/Z) 3,432 lbs./ 5,720 lbs. Repeatability (X/Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Tools (12) OD (12) ID Turret indexing speed 1 station 0.15 seconds Curvic coupling 3 Piece hyd clamp/Servo index Coupling diameter / Clamp force 6.57" / 7,833 lbs. Tool size (turning and facing) 1" Tool size (boring bar maximum diameter) 1.58" Turret index repeatability �0.00012" TAILSTOCK Tailstock center (Taper) MT #4 (Live Center) Quill diameter 2.95" Quill travel (by hydraulic) 3.14" Maximum thrust of quill 1135 lbs. COOLANT SYSTEM Coolant pump motor ( 1.2 hp / 65 psi) 3 hp (145 psi) Coolant tank capacity 53 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 3.7 gal. Hydraulic oil required (or equivalent) ISO VG32 Way lubrication tank capacity 0.48 gal. Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor Space Requirements (LxWxH) 147" x 61" x 76" Machine Weight 8,160 lbs. Power Consumption 31 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC Model Fanuc 0i-TF PLUS Display Unit 10.4" TFT LCD Color Monitor SHIPPING DIMENSIONS (L x W x H, Weight) Machine and Chip Conveyor 146" x 91" x 85", 10,362 lbs. Equipped With:STANDARD EQUIPMENT Machine work light, LED type Chip and coolant splash guarding (full coverage) 6" diameter hydraulic thru-hole chuck package 12 Station turret (Capable & ready for 1,000psi through-turret coolant) Lubrication system Rigid tapping on main spindle Chuck foot switch Front door interlock Hydraulic pressure interlock from main hydraulic line Foundation kit (plates only) One (1) set of adjusting tools Machine Manuals: one (1) each (Electric Diagram, Maintenance, Parts List, Operation / Maintenance) Fanuc Manuals: one (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators volumes 1 and 2) in USB SMEC A PACKAGE: Tool Presetter Auto Parts Catcher Oil Skimmer Programmable Tailstock (Body and Quill) Barfeeder Interface Manual Guide i Chip Conveyor - Side Discharge 145 PSI Coolant Pump* 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light
