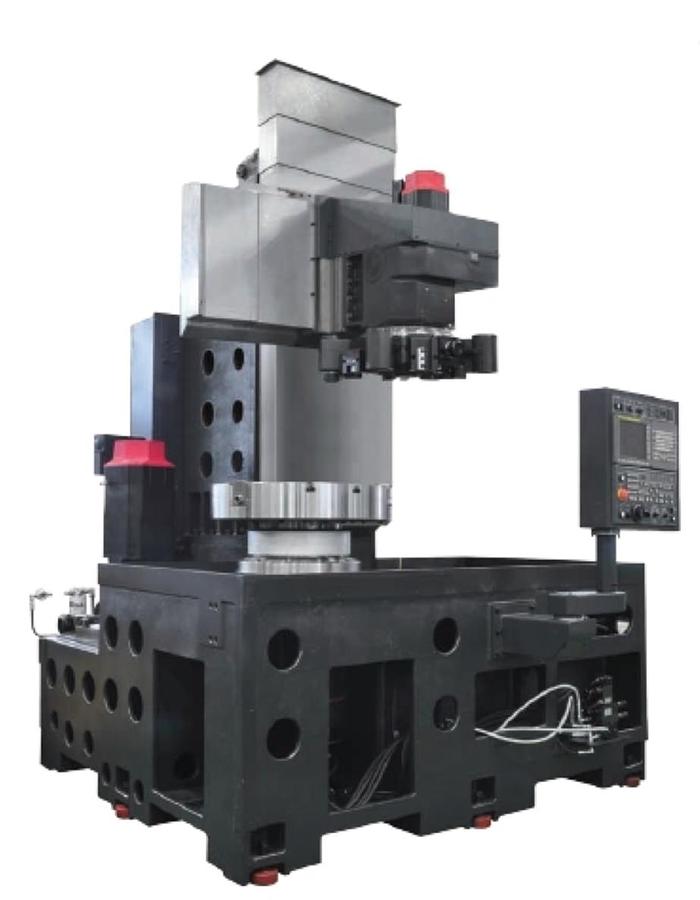

2023 SMEC SLV 1000M

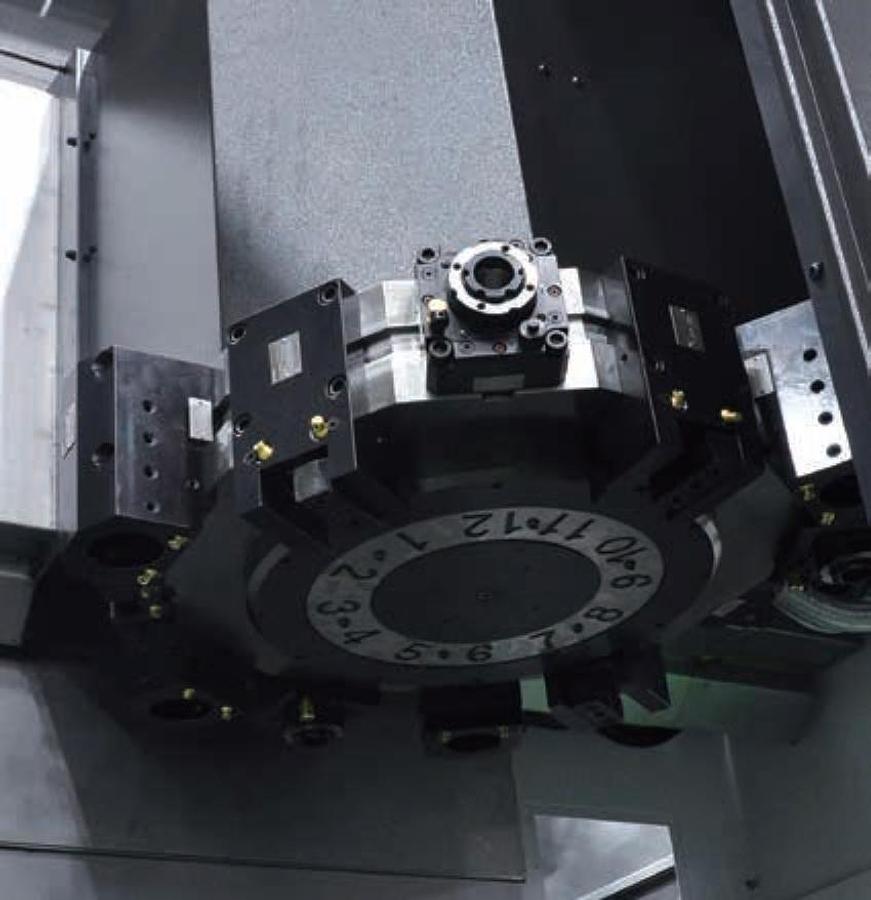

MACHINE SPECIFICATIONS CAPACITY Swing over the bed 43.30" Swing over the cross slide 31.29" Maximum turning diameter 39.36" Maximum milling diameter 32.55" Maximum turning length 37.59" SPINDLE Chuck size 32" Spindle nose A2-15 Main spindle motor (Cont./Max) 50 / 73.7 hp Spindle speed 800 rpm Spindle torque (Max) 3,706.7 ft.-lbs. Speed ranges 2 Speed gear + BELT C axis minimum programmable angle 0.001 deg C axis position accuracy 0.01 deg C-axis repeatability +0.0056 deg TURRET Number of tool stations 12 Tools Servo (BMT 85) Turret indexing speed 1 station 0.30 seconds Curvic coupling 3 Piece hydraulic clamp / Servo index Coupling diameter / Clamp force 12.64" / 33,484 lbs. Tool size (turning and facing) 1.25" �� Wedge clamp Tool size (boring bar max dia) 3" Rotary tool speed 3,000 rpm Rotary tool spindle motor 14.7 hp Rotary tool spindle torque 155.0 ft-lbs. Turret index repeatability �0.00020" MACHINE SIZE Floor space requirements (L x W x H) 99" x 178" x 155" Machine weight 37,920 lbs. Power consumption 80 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC model Fanuc 0i-TF PLUS Display unit 15" TFT LCD Color Monitor SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 153" x 114" x 163", 41,446 lbs. Crate #2 (Chip Conveyor) 118" x 86" x 79", 3,086 lbs. Equipped With:SMEC A PACKAGE: 32" Chuck 2 Speed Gear Box Oil Skimmer Manual Guide i Z-Axis HP Upgrade with 4,831 lbs. Continuous Thrust SMEC A VALUE PACKAGE: Chip Conveyor - Rear Discharge 145 PSI Coolant Pump 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light
