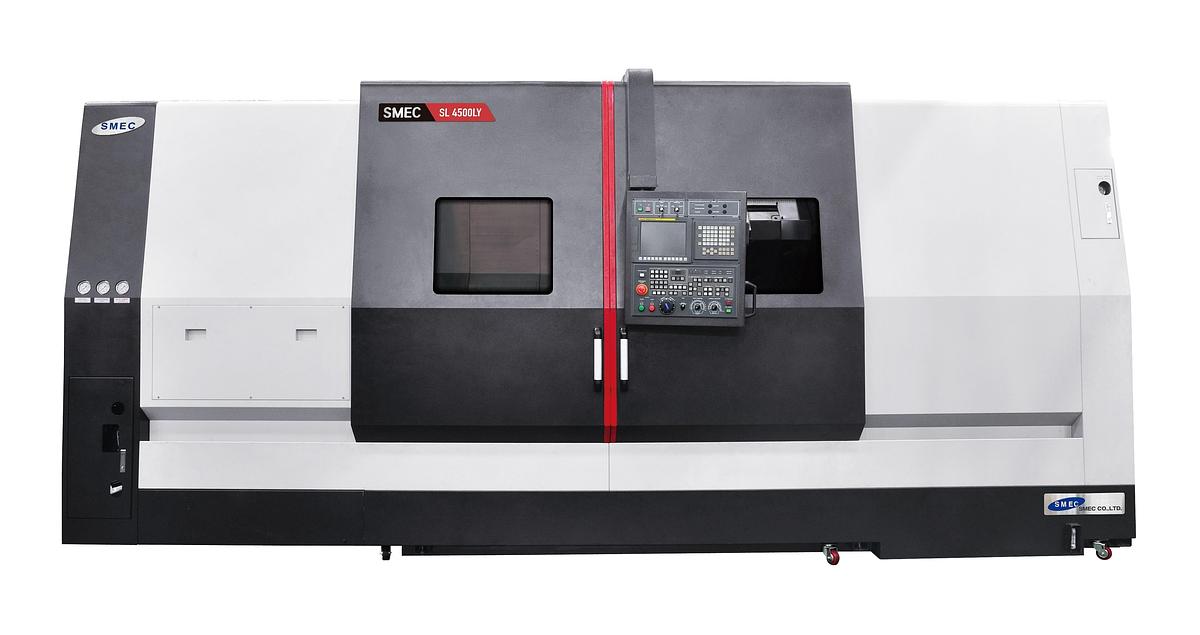

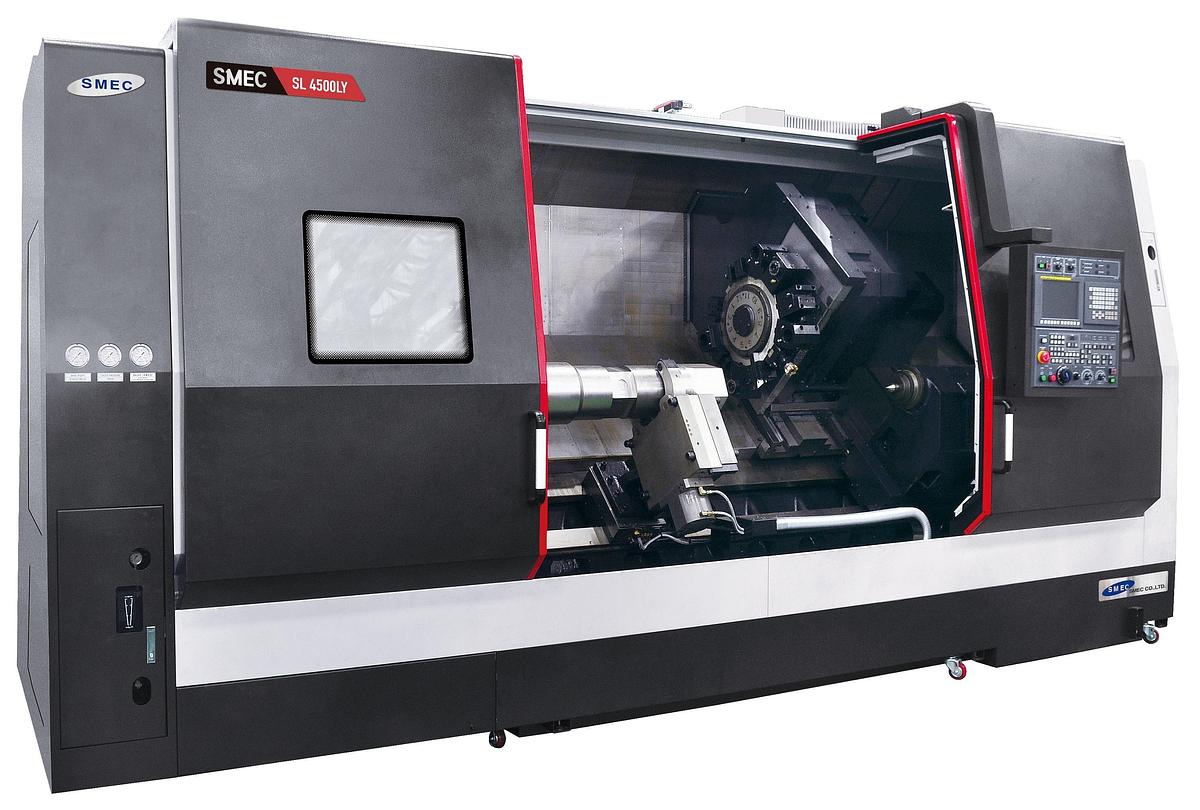

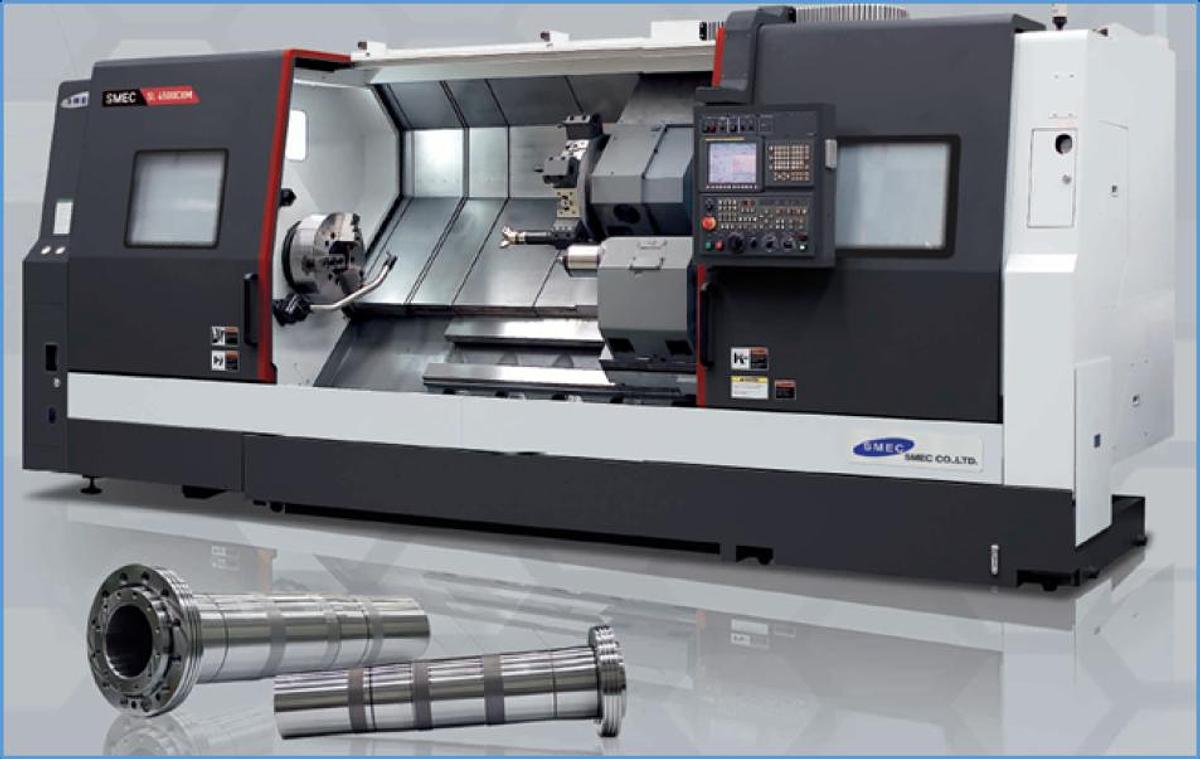

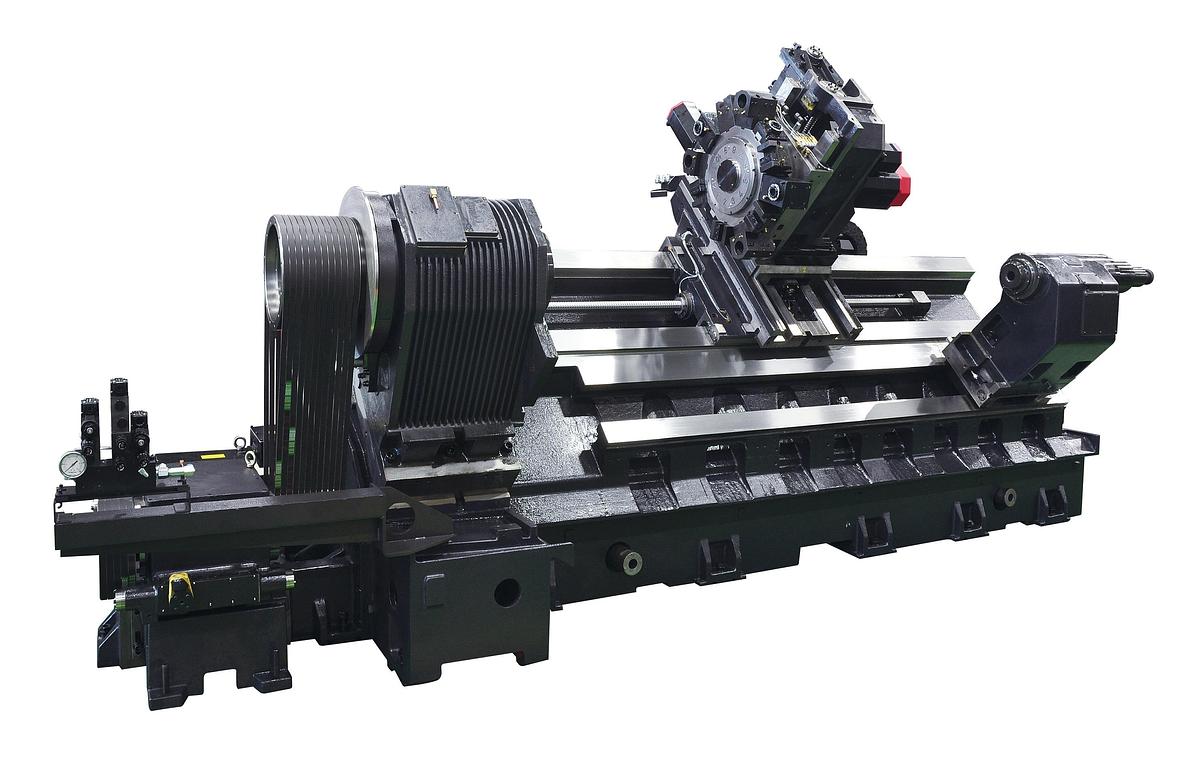

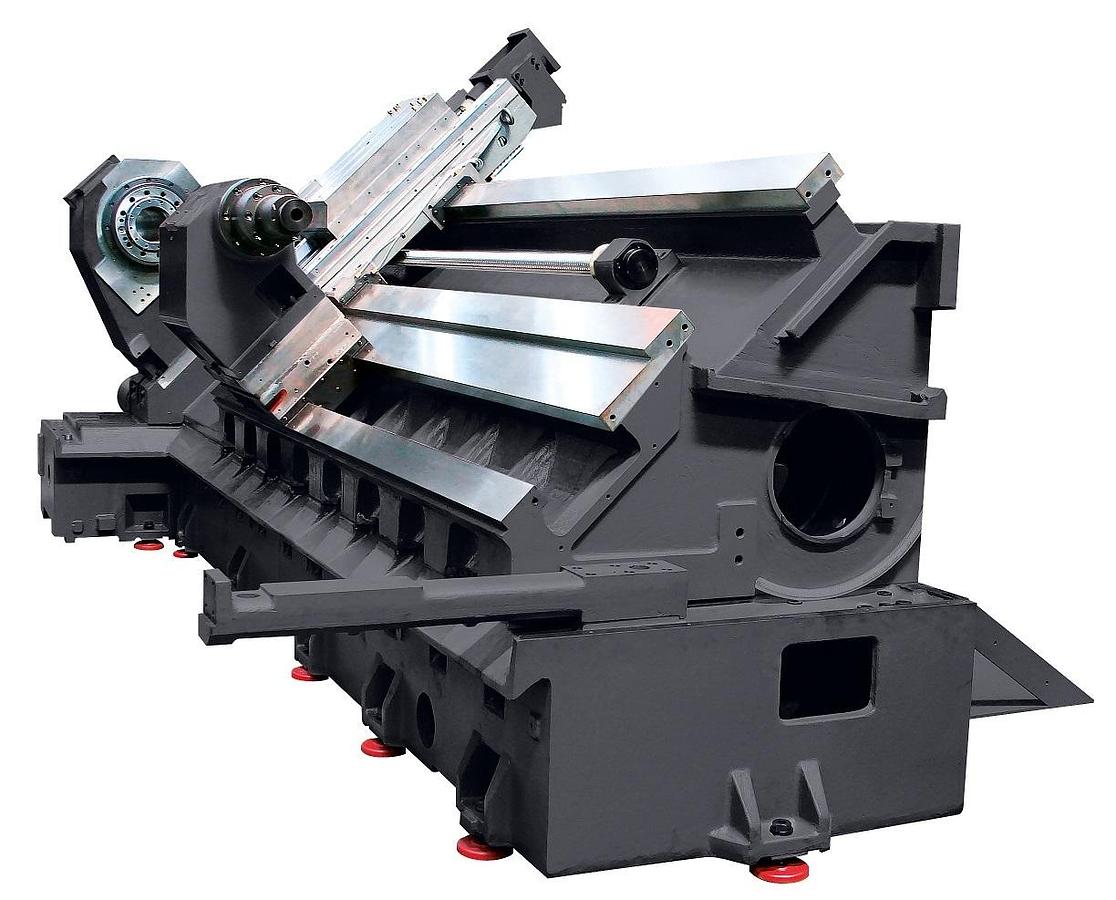

SMEC SL 4500CX (2200mm) CNC Lathe (24" Chuck)

CAPACITY Swing over the bed 30.51" Swing over the cross slide 24.80" Maximum turning diameter 27.17" Maximum turning length 88.78" SPINDLE Chuck size 24" Spindle nose A2-15 Main spindle motor (Max / 30min.) 50 / 40 hp Spindle speed 1,200 rpm Bore diameter 7.12" Draw tube ID 6.56" Spindle torque (Max) 3,101 ft-lbs. Spindle drive method 2-Speed gear BED, SLIDE & CARRIAGE X axis travel 13,78" Z axis travel (1000) 91.73" Rapid traverse ipm (X / Z) 787 / 787 Guide ways (X / Z) Box Way Bed structure 45-deg Slant bed Ballscrew diameter (X / Z) 1.57" / 1.97" Axis feed thrust, Continuous (X / Z) 10,550 lbs. / 13,771 lbs. Repeatability (X / Z) +0.00008" / +0.00012" TURRET Number of tool stations 12 Tools (12) OD (12) ID Turret indexing speed (1 station) 0.2 seconds Curvic coupling 3 Piece hydraulic clamp / Servo index Curvic coupling diameter / Clamp force 9.96" / 18,524 lbs. Tool size (turning and facing) 1.25" - Wedge clamp Tool size (boring bar maximum diameter) 2.5" TAILSTOCK Tailstock center (taper) MT#5 (Built-in) Quill diameter 6.30" Quill travel (by hydraulic) 5.91" Maximum thrust of quill 7,062 lbs. COOLANT SYSTEM Coolant pump motor (1.2 hp / 65 psi) 3 hp (145 psi) [value package]* Coolant tank capacity 105 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 6.34 gal. Hydraulic oil required (or equivalent) ISO VG32 Way lubrication tank capacity 0.79 gal. Way lubrication oil required (or equivalent) ISO VG68 MACHINE SIZE Floor space requirements (L x W x H) 257" x 129" x 92" Machine weight 30,865 lbs. Power consumption 60 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC model Fanuc 0i-TF PLUS Display unit 10.4" TFT LCD Color Monitor SL5500C SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 229" x 89" x 101" (32,408 lbs.) Equipped With:STANDARD EQUIPMENT Tool presetting system (tool presetter) - Tool set-up / Tool wear compensation Machine work light Chip and coolant splash guarding (full coverage) Programmable tailstock (programmable tow-along tail body and programmable quill) Big Bore (C): 24 Diameter Hydraulic thru-hole chuck 12 Station turret + (Capable & ready for 1,000psi through-turret coolant) Lubrication system Rigid tapping on main spindle Chuck foot switch Front door interlock Hydraulic pressure interlock from main hydraulic line Foundation kit (plates only) One (1) set of adjusting tools Machine Manuals: one (1) each (Electric Diagram, Maintenance, Parts List, Operation / Maintenance) Fanuc Manuals: one (1) each (Manual Guide i, Operations, Parameter, Maintenance, Operators volumes 1 and 2) in USB SMEC A PACKAGE: Tool Presetter Oil Skimmer Programmable Tailstock (Body & Quill) Built-in Tailstock Bearings MT #5 Barfeeder Interface Manual Guide i SMEC A VALUE PACKAGE: Chip Conveyor - Side Discharge 145 PSI Coolant Pump* 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light CONTROL OPTIONS ADDED UPON INSTALLATION BY QUAN LE: Fanuc option - Arbitrary speed threading - A02B-0339-R672 - List Price : $ 975.00 (**NO CHARGE**) Fanuc option - Spindle Speed Variation (requires modifaction to the Ladder) - $500 (**NO CHARGE**)
