2018 SMEC SM 400DH

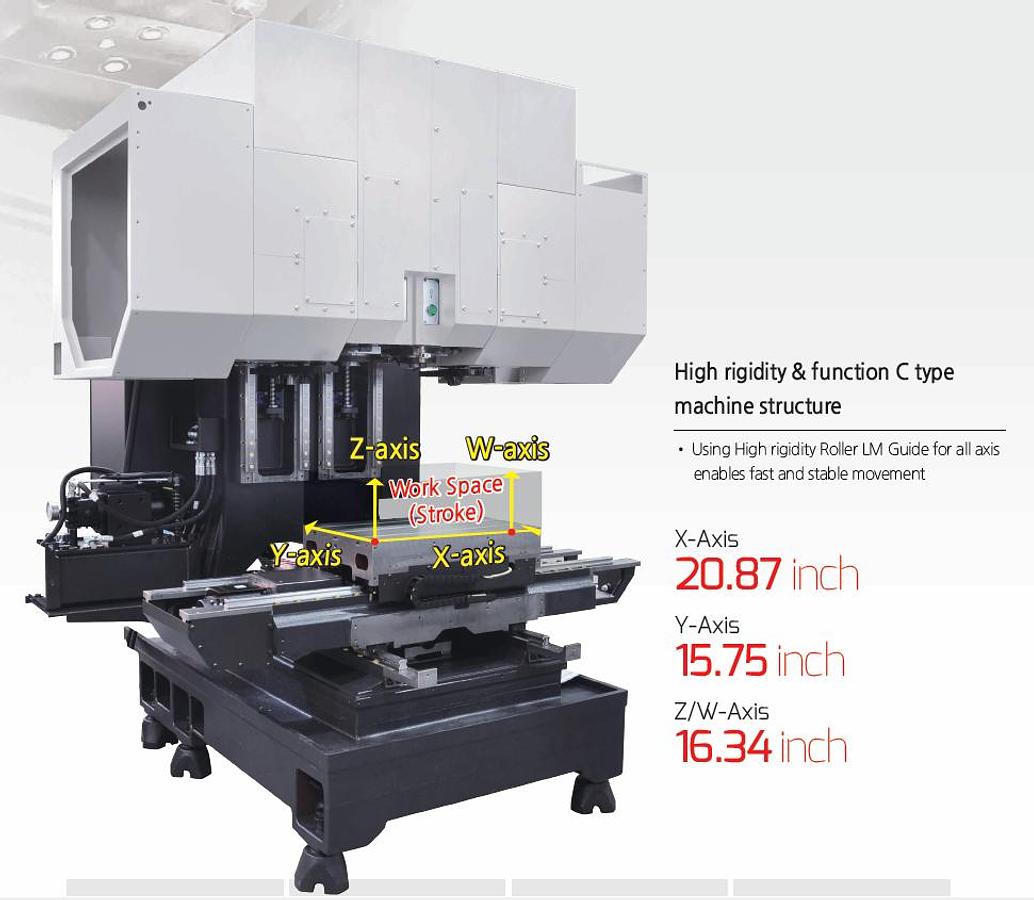

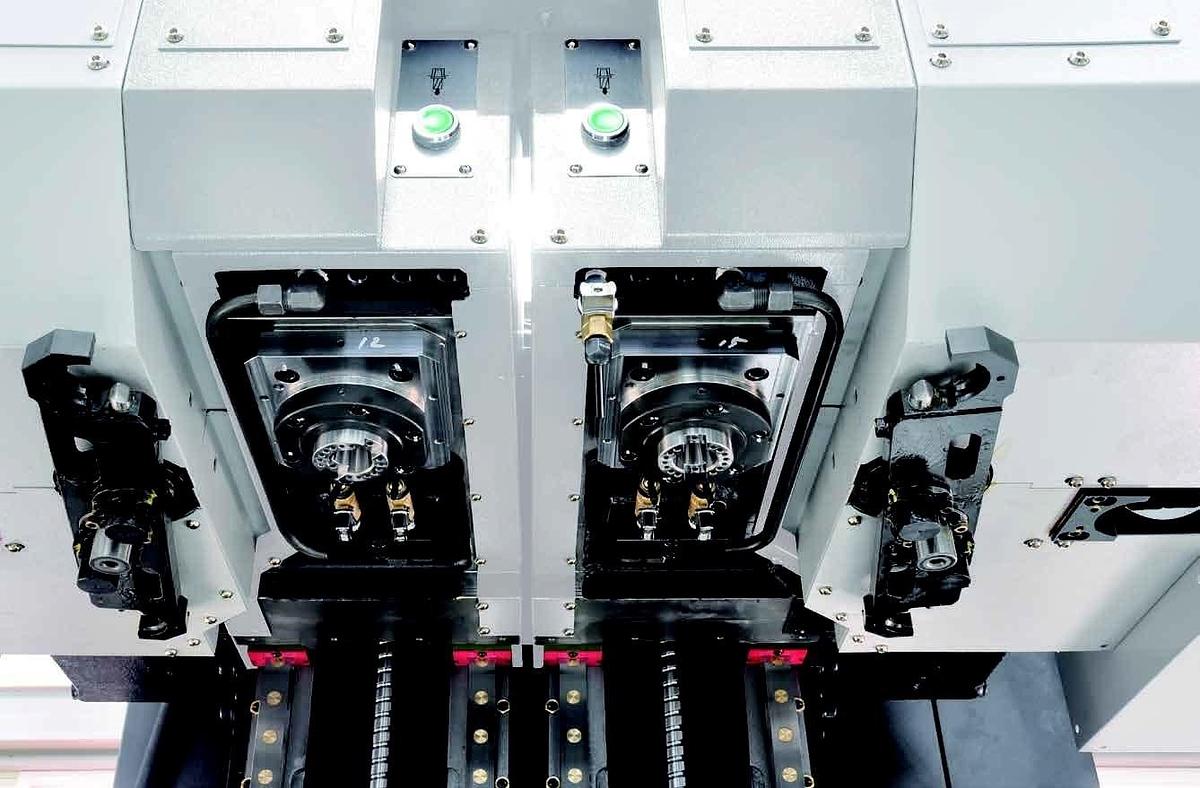

CAPACITY X axis travel 20.87" Y axis travel 15.75" Z axis travel 16.34" Table size 15.75" x 29.53" Table loading capacity 661 lbs. Table T-slot spacing x width (3) - 4.92" x 0.55" SPINDLE (x 2) Distance between spindles 11.81" Distance from table top to spindle nose 7.09" - 23.43" Distance from column to spindle center 15.75" Spindle taper BT30 (Big Plus) Spindle speed (Standard) 12,000 rpm (Standard) - AC spindle motor (Max / Duty / Cont) 12 / 7.5 / 5 hp - Maximum spindle torque (Max) 21.2 ft-lbs. AUTO TOOL CHANGER (x 2) Magazine capacity 20 ATC (x2) Tool shank BT30 Pull stud type MAS 403 P30T-1 Maximum tool diameter [adjacent empty] 2.36" [4.72"] Maximum tool length 7.48" Maximum tool weight 6.6 lbs. Tool selection method Random Tool changing time (T-T) 0.8 seconds FEED RATE (Z x 2) Rapid traverse (X/Y/Z) 2,362 ipm/2,362 ipm/1,890 ipm Cutting Feed rate ipm 787 ipm SERVO DRIVE SYSTEM (Z x 2) Feed motor (X/Y/Z) 4.02 hp / 4.02 hp / 4.02 hp Ballscrew diameter (X/Y/Z) 1.26" / 1.26" / 1.26" Axis feed thrust, Continuous (X/Y/Z) 1,616 lbs/1,583 lbs/2,017 lbs Slide ways (X/Y/Z) Cross Roller Guide Slide way span (X/Y/Z) 12.3" / 20.8" / 9.3" Slide way width (X/Y/Z) 0.91" / 1.10" / 1.10" Position accuracy �0.0002" Repeatability �0.00008" GENERAL Floor space (L x W x H) 107.0" x 107.4" x 102.9" Machine weight 9,259 lbs. Power required 40 kVA Voltage 220V + 10% / 3 Phase CNC SYSTEM CONTROL Fanuc 0i-MF SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 142" x 91" x 101", 10,120 lbs. Crate #2 (Coolant Tank) 105" x 30" x 78", 1,650 lbs. Equipped With:12,000 rpm Spindle Includes Hi-Torque, Dual Winding Type Motor and Coolant Thru-Spindle Prep. SMEC A PACKAGE: Spindle Cooling Unit 20 Tools (x 2) Double Arm ATC Coolant Gun Full Enclosed Splash Guard Coolant Bed Flush Rigid Tapping Big Plus Spindle Z-Axis HP Upgrade with 2,017 lbs. Continuous Thrust Optional Equipment: MM1284801A Lift Up Chip Conveyor $ 6,310.00
