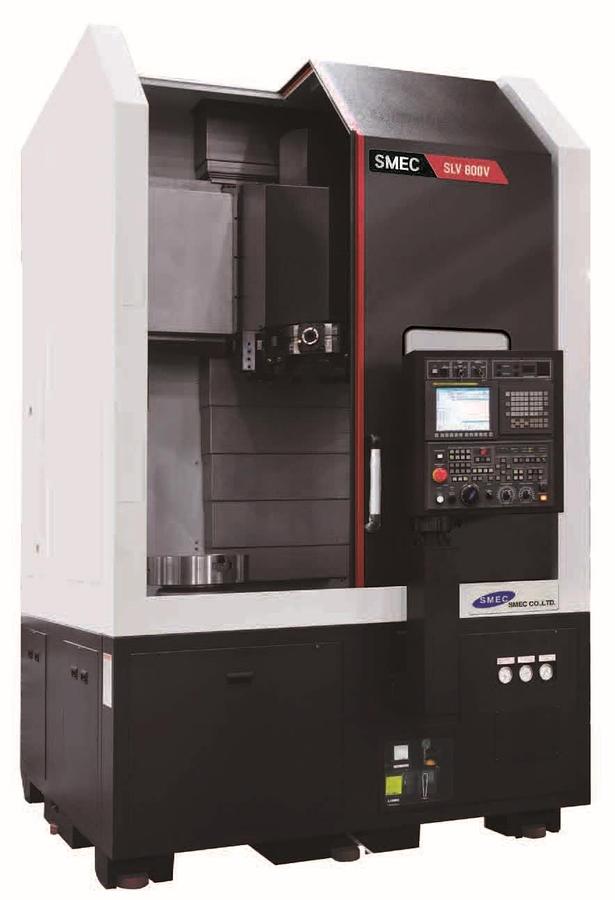

SMEC SLV 800 Vertical Turning Center (RH)

CAPACITY Swing over the bed 35.04" Swing over the cross slide 29.13" Maximum turning diameter 32.67" Maximum turning length 31.50" SPINDLE Chuck Size 18" Spindle nose A2-11 (ASA) Main spindle motor (Duty / Cont.) 50 / 40 hp Spindle speed 2,000 rpm Spindle bearing diameter (front) 6.29" Spindle torque (Max) 1,937.57 ft.-lbs. Speed ranges 2 Speed gear box SLIDE & CARRIAGE X Axis travel 16.93" Z Axis travel 31.50" Rapid traverse X 787 ipm Rapid traverse Z 787 ipm Guide ways (X / Z) Box way Ballscrew diameter (X / Z) 1.57" / 1.97" Axis feed thrust, Continuous (X / Z) 2,797 lbs. / 4,831 lbs. Repeatability (X / Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Tools servo (BMT 75) Turret indexing speed 1 station 0.3 seconds Curvic coupling 3 Piece hydraulic clamp/Servo index Coupling diameter / Clamp force 7.87 / 17,776 lbs Tool size (turning and facing) 1-1/4" �� Wedge clamp Tool size (boring bar max diameter) 2-1/2" Turret index repeatability �0.00012" MACHINE SIZE Floor space requirements (L x W x H) 81" x 169" x 138" Machine weight 24,251 lbs. Power consumption 65 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC model Fanuc 0i-TF PLUS Display unit 15" TFT LCD Color Monitor SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 150" x 91" x 148", 26,455 lbs. Crate #2 (Chip Conveyor) 150" x 30" x 70", 3,968 lbs. Equipped With:SMEC A PACKAGE : 18" Chuck 2 Speed Gear Box Manual Guide i Z-Axis HP Upgrade with 4,831 lbs. Continuous Thrust Chip Conveyor - Rear Discharge 145 PSI Coolant Pump 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light Tool Presetter Assembly - Renishaw HPRA Kit Removable type - (*To Be Installed during initial set up of machine*)
