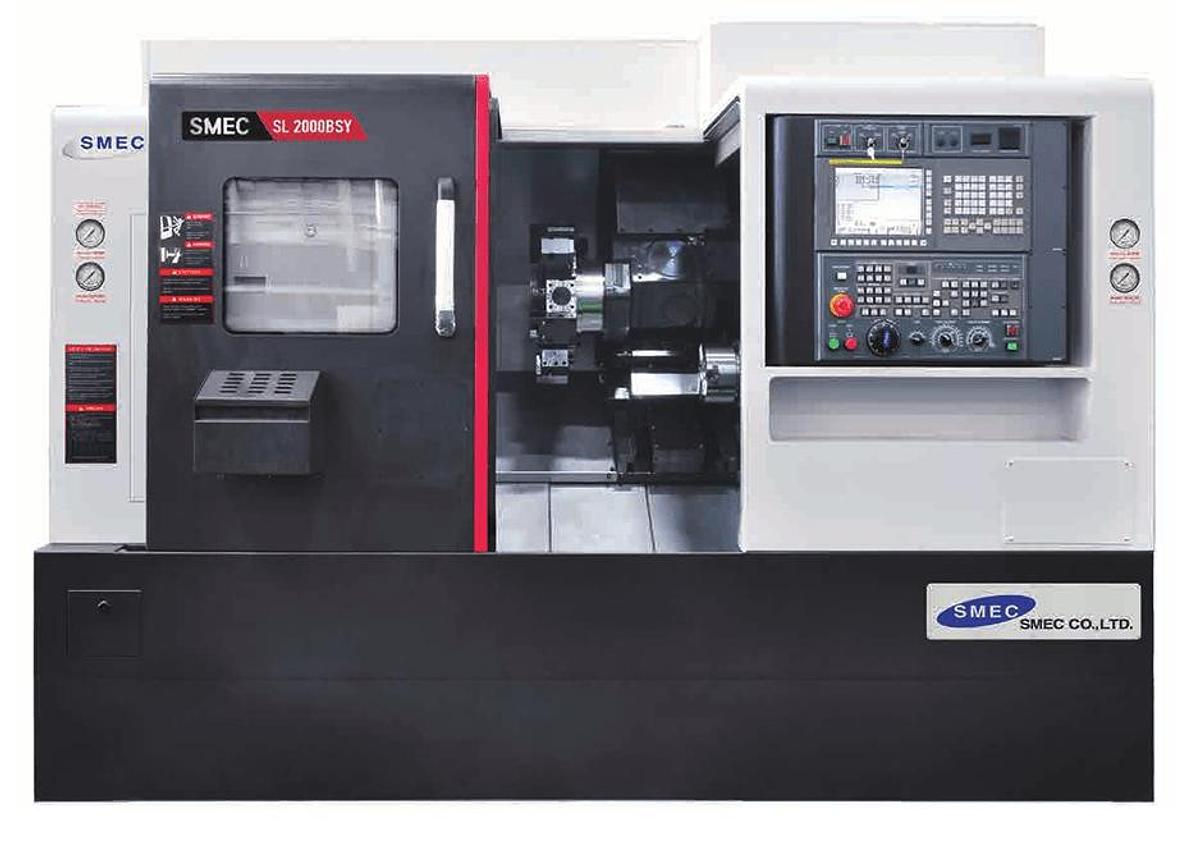

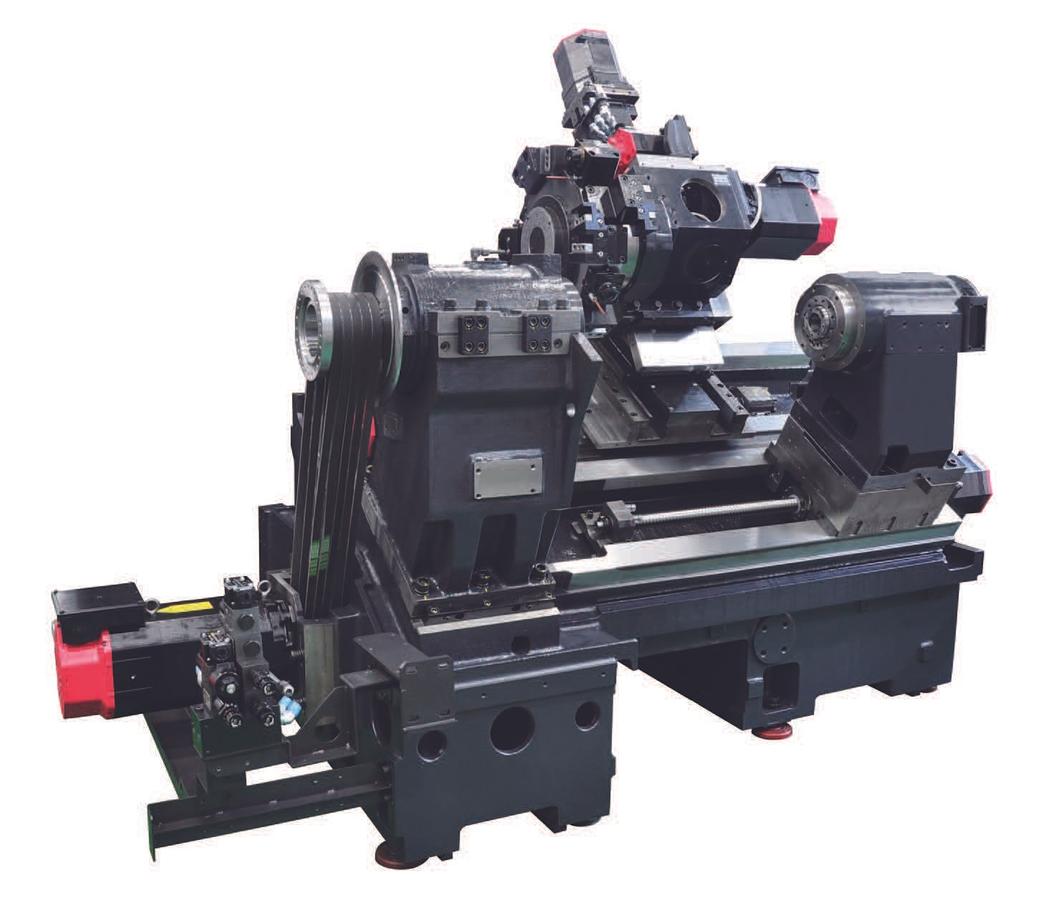

SMEC SL 2000BSY

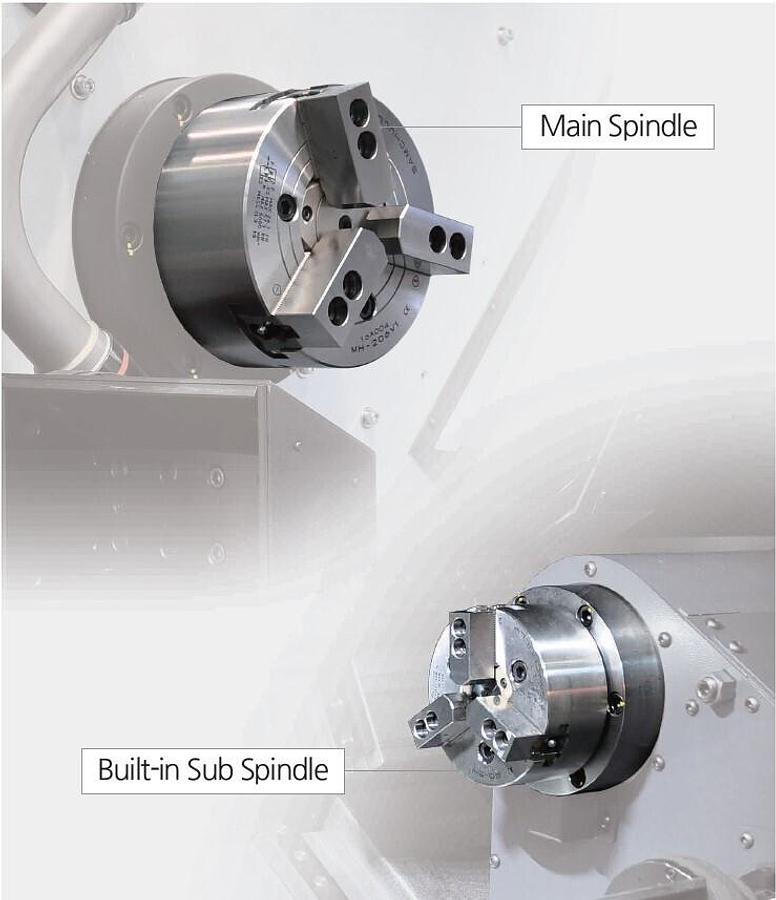

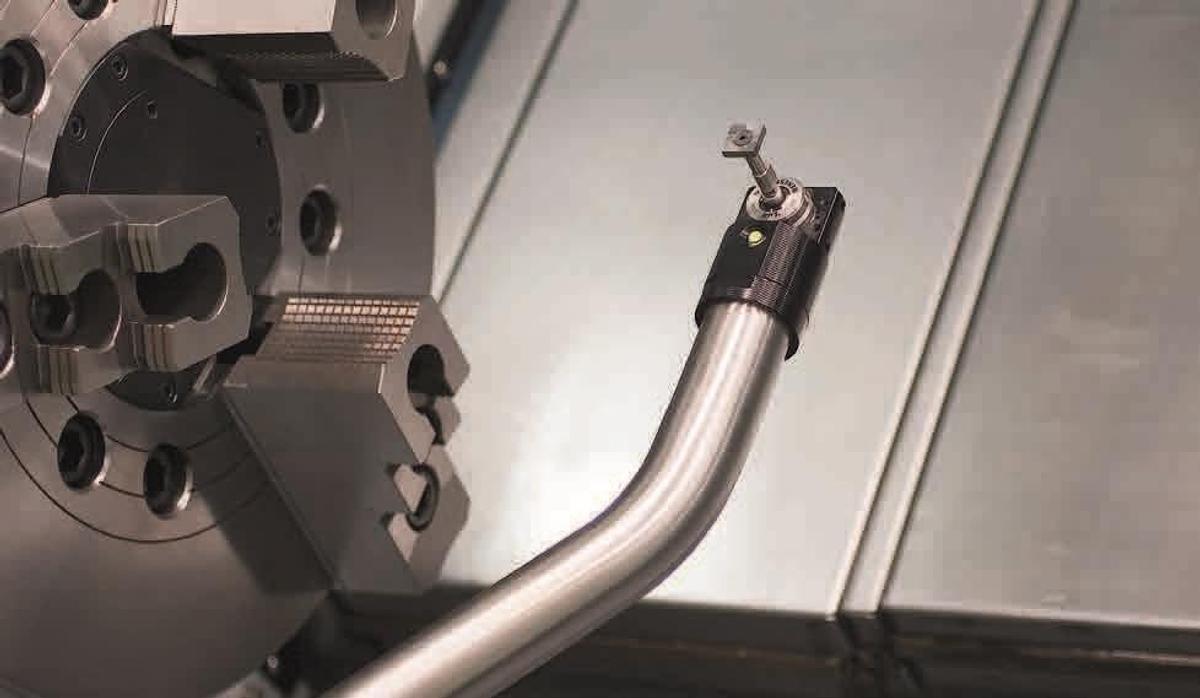

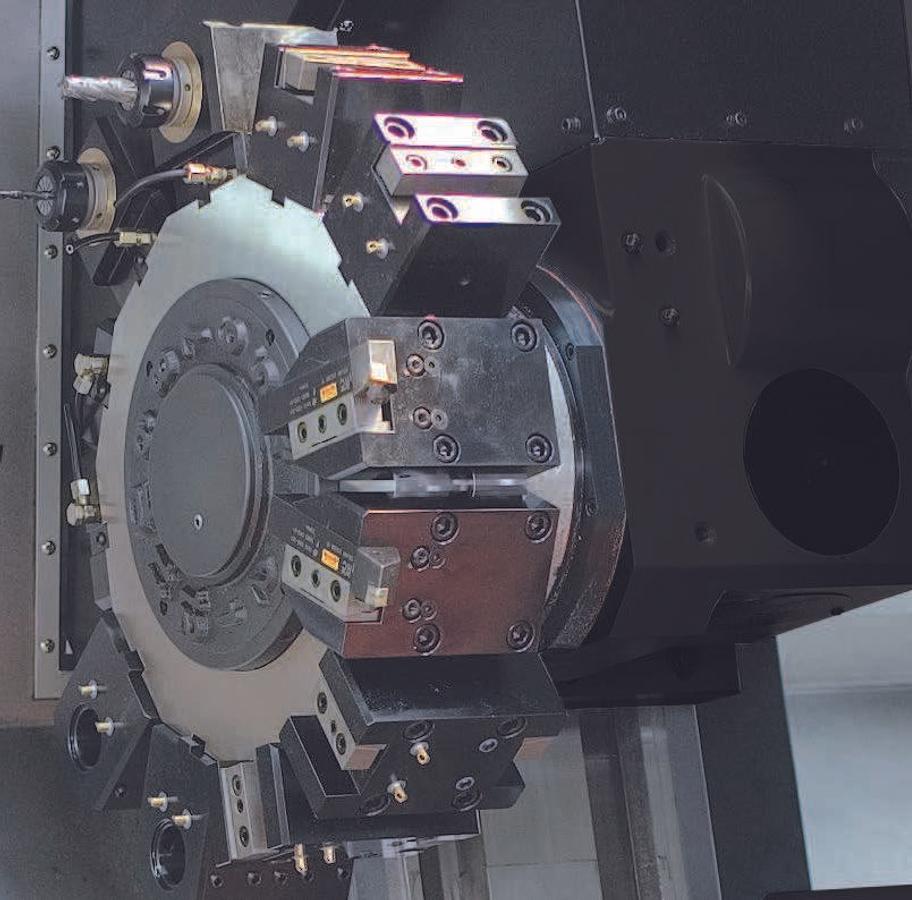

CAPACITY Swing over the bed 25.59" Swing over the cross slide 21.26" Maximum turning diameter 15.55" Maximum turning length 17.72" MAIN SPINDLE Chuck size 8" Spindle nose A2-6 (ASA) Main spindle motor (Max/Duty/Cont.) 25 / 20 / 15 hp Spindle speed 4,500 rpm Bore diameter 2.99" Draw tube ID 2.68" Spindle torque (Max) 154.4 ft-lbs Spindle drive method Belt C axis minimum programmable angle 0.001 deg C axis position accuracy 0.0015 deg C-axis repeatability �0.0056 deg SUB SPINDLE Chuck size 6" Spindle nose A2-5 (ASA) Spindle motor 10 / 7.5 hp Spindle speed 6,000 rpm Bore diameter 1.77" Draw tube ID 1.42" Spindle torque 38.3 ft-lbs C axis minimum programmable angle 0.001 deg C axis position accuracy 0.015 deg C-axis repeatability �0.0056 deg BED, SLIDE & CARRIAGE X/Y/Z/ZB axis travel 9.25"/4.13"/22.83"/22.83" Rapid traverse (X/Y/Z/ZB) 945 ipm/394 ipm/1,181 ipm/945 ipm Guide ways Box Way Bed structure 30-deg Slant bed Ballscrew diameter (X/Y/Z/ZB) 1.42"/1.42"/1.57"/1.57" Axis feed thrust, Maximum (X/Y/Z/ZB) 4,449lbs/8,898lbs/6,780lbs/8,136lbs Repeatability (X / Y-Z-ZB) X, Y �0.00012", I / IB �0.00020" TURRET Number of tool stations 12 (24) Tools (BMT55) Turret indexing speed (1 station) 0.15 seconds Curvic coupling 3 Piece hydraulic clamp/Servo index Coupling diameter / Clamp force 7.05" / 10,439 lbs. Tool size (turning and facing) 1" �� Wedge clamp Tool size (boring bar max dia.) 1.58" Rotating tool rpm 5,000 rpm Rotating tool spindle motor 7.5 hp Rotating tool spindle torque 25.8 ft-lbs. Turret index repeatability �0.00012" COOLANT SYSTEM Coolant pump motor 1.5 hp (65 psi) Coolant tank capacity 44.9 gal System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 3.7 gal. Hydraulic oil required (or equiv) ISO VG32 Way lubrication tank capacity 0.79 gal Way lubrication oil required SO VG68 MACHINE SIZE Floor Space Requirements (L x W) 162.4" x 69" Machine Weight 9,959 lbs. Power Consumption 47 kVA Voltage 220V�10 / 60 Hz, 3 phase CNC CNC Model Fanuc 0i-TF PLUS Display Unit 15" TFT LCD Equipped With:SMEC OPTION PACKAGE: Tool Presetter Oil Skimmer Barfeeder Interface Parts Ejector-Pneumatic Air Blow for Main/Sub Spindle Coolant Flush Thru Sub-Spindle Manual Guide i Helical Interpolation Z-Axis HP Upgrade with 2,750 lbs. Continuous Thrust Chip Conveyor - Side Discharge Internal Parts Catcher / Parts Conveyor 145 PSI Coolant Pump 2 Sets of Hard Jaws 6 Sets of Soft Jaws 3 Color Tower Light
