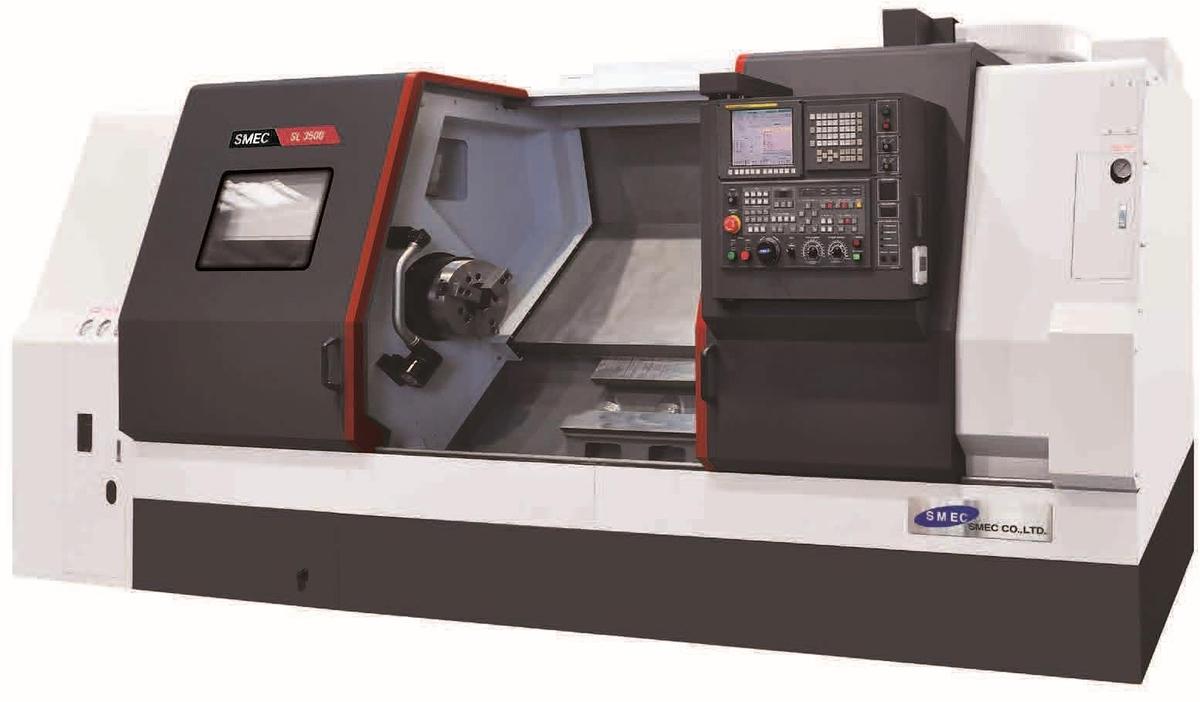

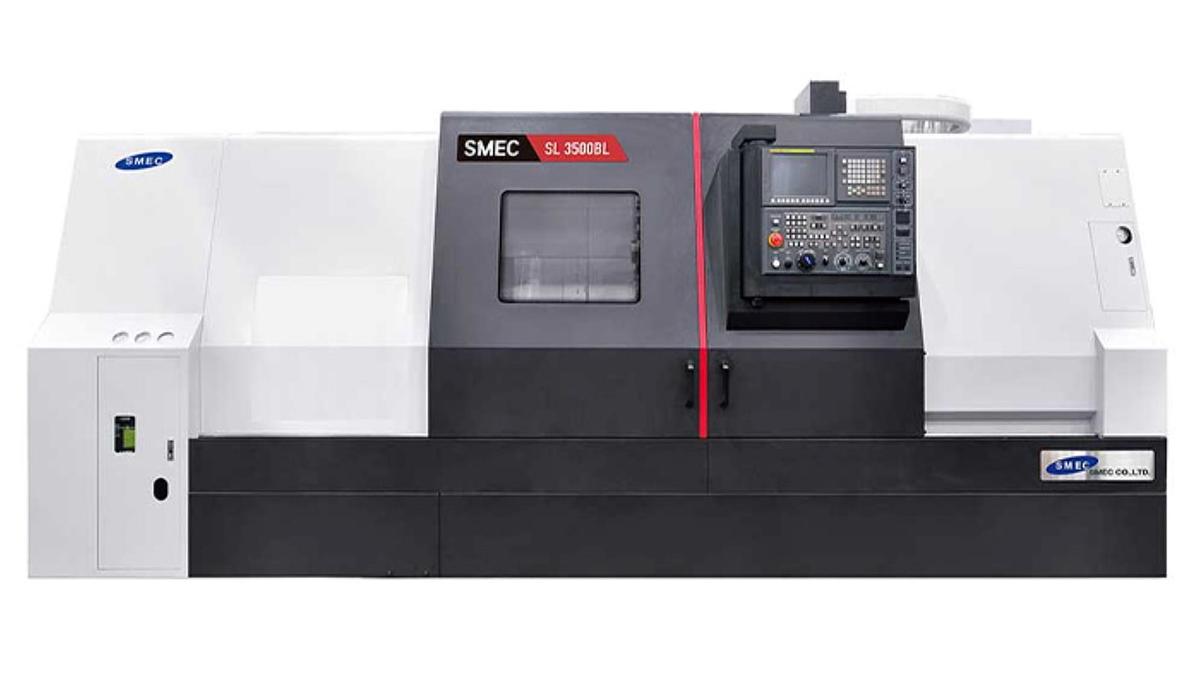

SMEC SL 3500B (18" Chuck CNC Lathe)

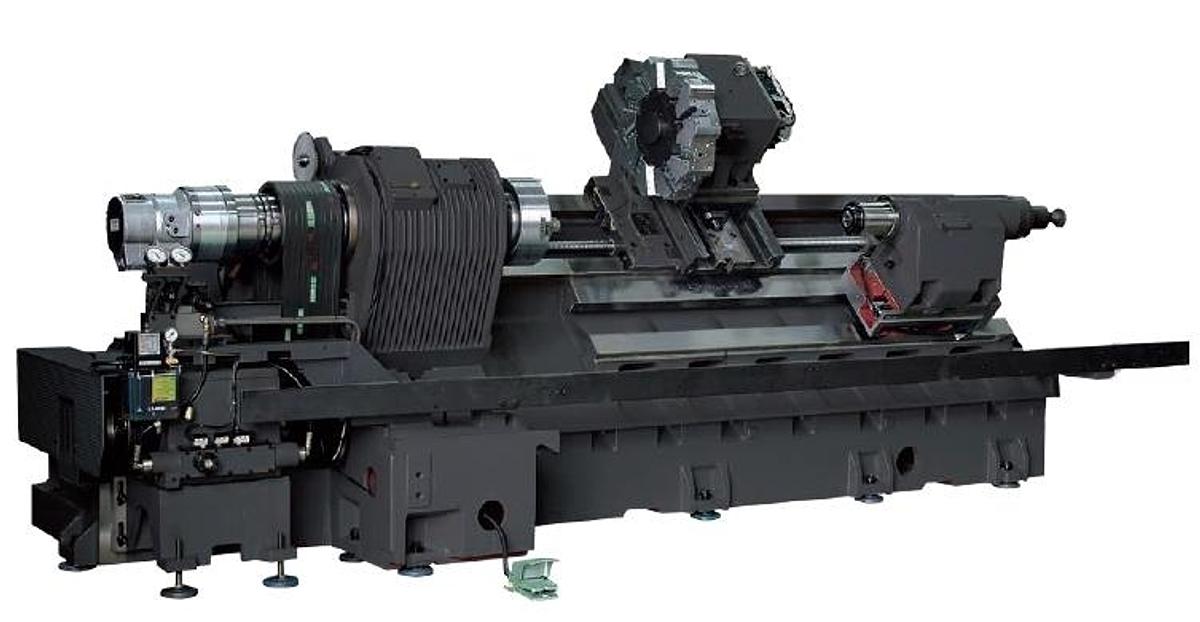

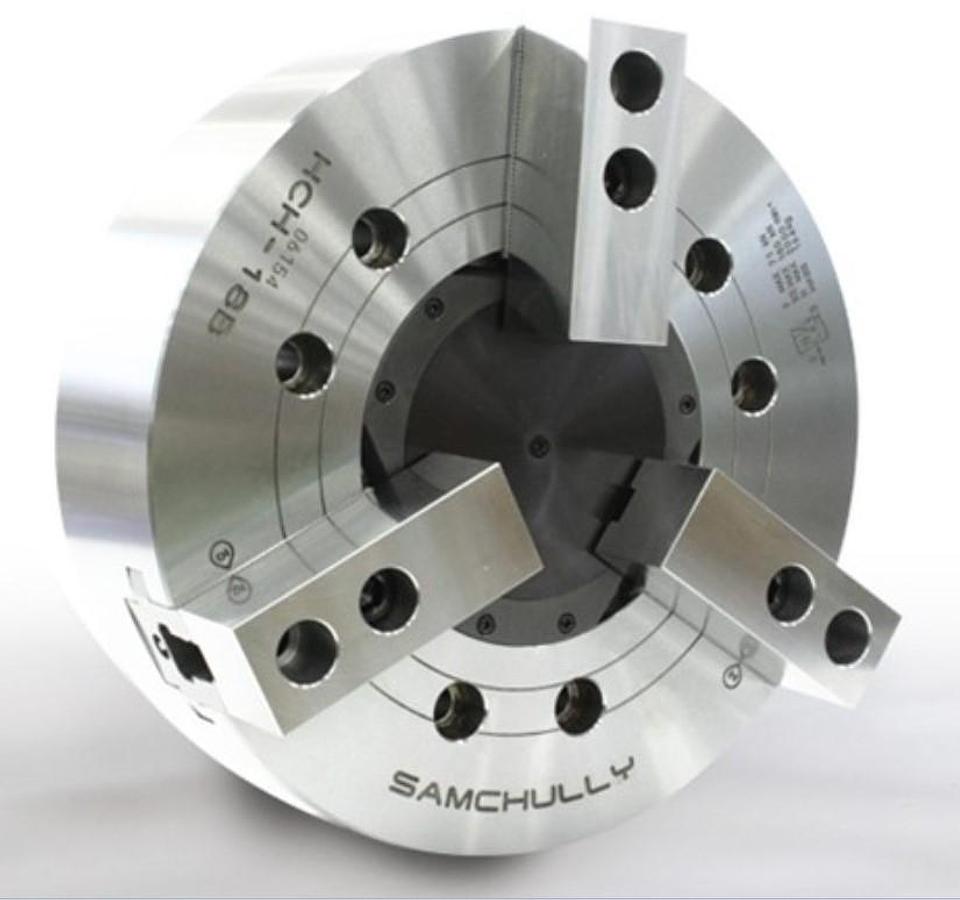

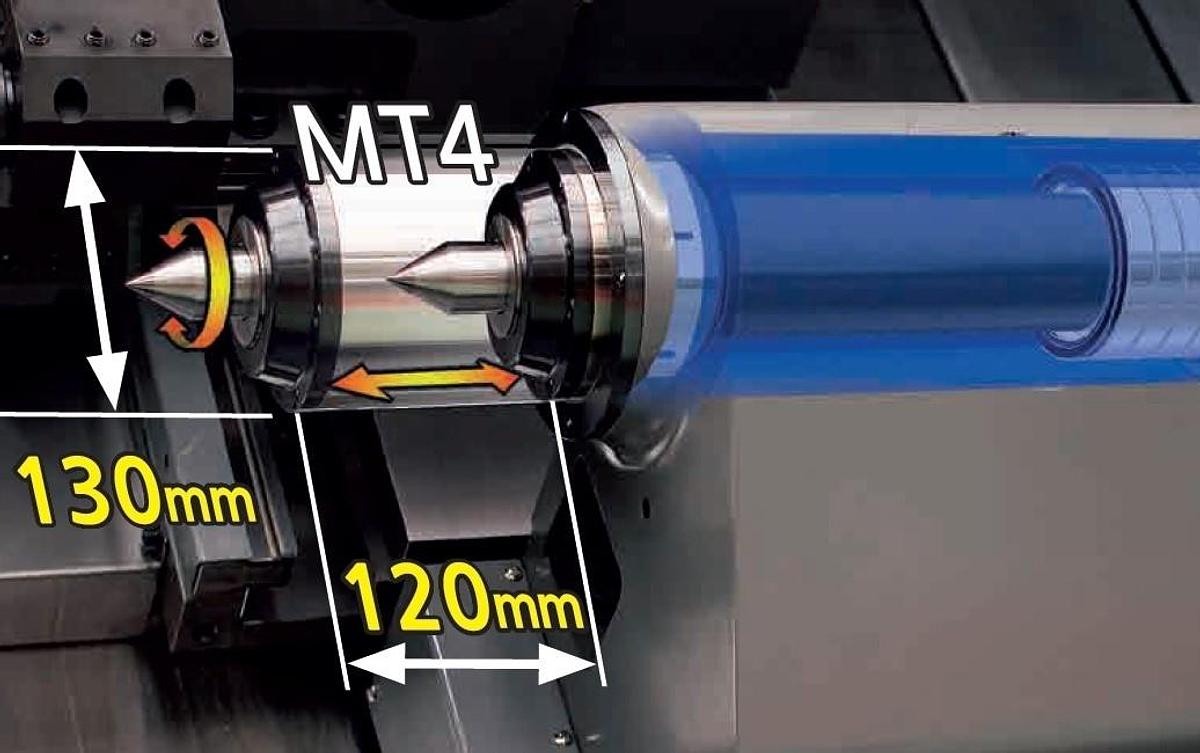

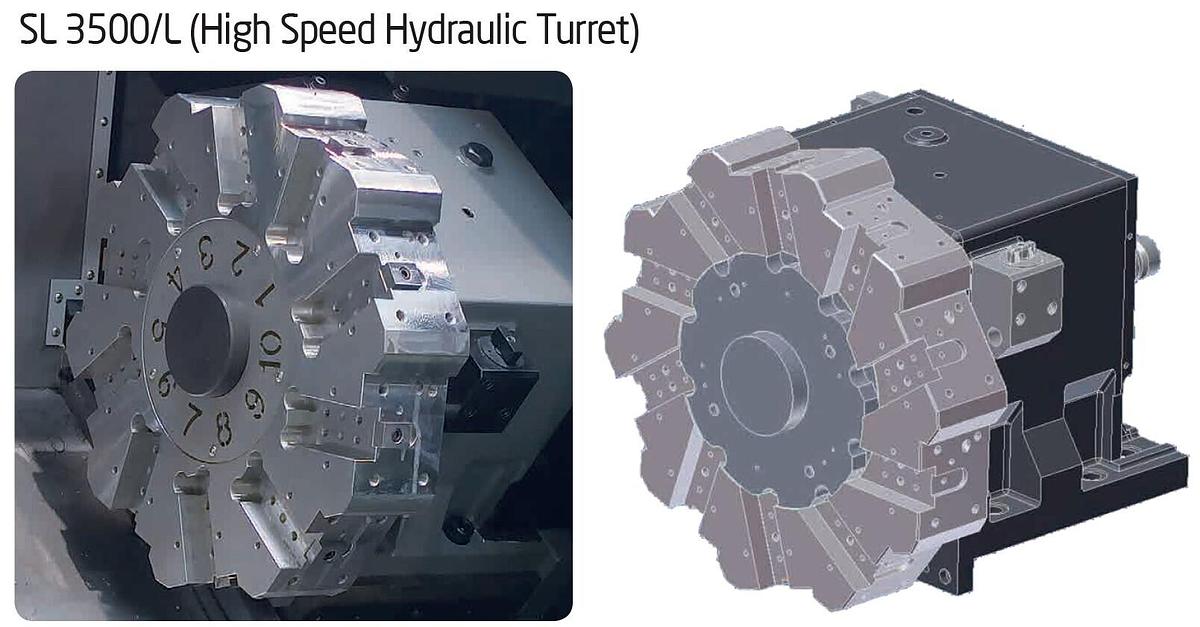

CAPACITY Swing over the bed 26.77" Swing over the cross slide 19.88" Maximum turning diameter 19.69" Maximum turning length 30.71" SPINDLE Chuck size 18" Spindle nose A2-11 (ASA) Main spindle motor (Cont/Duty/Max) 25/29/35 Spindle speed 1,800 rpm Bore diameter 5.20" Draw tube ID 4.63" Spindle torque (Max) 1,711.3ft-lbs Spindle drive method 2 Speed gear box BED, SLIDE & CARRIAGE X axis travel 11.02" Z axis travel 33.66" Rapid traverse (X / Z) 472.4 / 590.5 ipm Guide ways (X / Z) Box Way Bed structure 45-deg Slant bed Ballscrew diameter (X / Z) 1.42"/1.97" Max. Axis feed thrust (X / Z) 7,415.48 / 8,135.75 lbs. Repeatability (X / Z) �0.00020" / �0.00039" TURRET Number of tool stations 10 Turret indexing speed (1 station) 0.3 seconds Curvic coupling 2 Piece hyd clamp/index Curvic coupling dia / Clamp force 9.84" / 10,492lbs. Tool size (turning and facing) 1" �� Wedge clamp Tool size (boring bar maximum dia) 2" Turret index repeatability �0.00012" TAILSTOCK Tailstock center (taper) MT #4 Built-in Quill diameter 5.12" Quill travel (by hydraulic) 4.72" Maximum thrust of quill 4379lbs (at 45bar) COOLANT SYSTEM Coolant pump motor 3hp (145 psi) Coolant tank capacity 61.82 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 5.38 gal. Hydraulic oil required (or equal) ISO VG32 Way lubrication tank capacity 0.47gal. Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor space requirements (L x W) 186.5" x 74.8" Machine weight 18,283 lbs. Power consumption 42 kVA Voltage 220V �10%, 60 Hz, 3 phase CNC CONTROL CNC model Fanuc 0i-TF PLUS Display unit 15" TFT LCD Color Monitor SHIPPING DIMENSIONS 170 x 89 x 96 in, 18,960 lbs Equipped With:SMEC OPTION PACKAGE: Tool Presetter(Manual) Oil Skimmer Programmable Tailstock (Body & Quill) Barfeeder Interface Manual Guide i BZI sensor Chip mesh for coolant Tank (right cover included) Patrol Light 18" Chuck Chip Conveyor - Side Discharge 145 PSI Coolant Pump 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light
