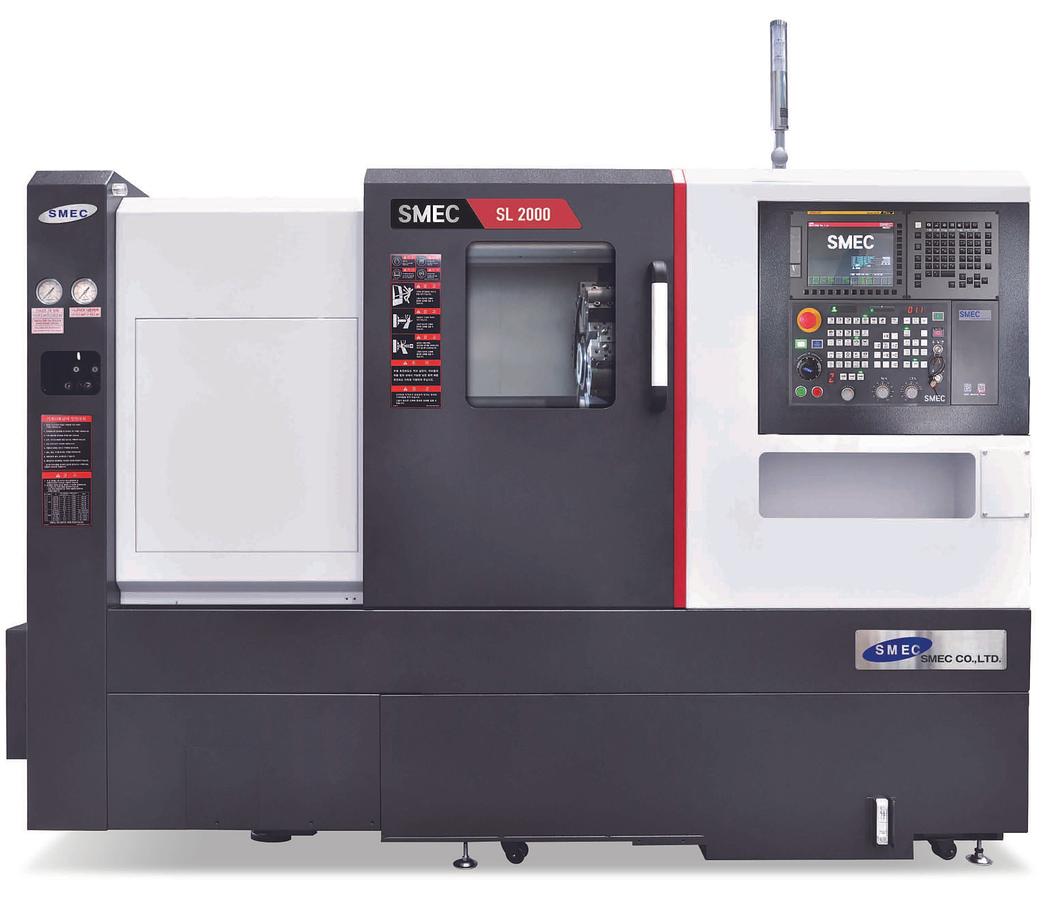

SMEC SL 2000BM CNC Turning Center with Live Tooling

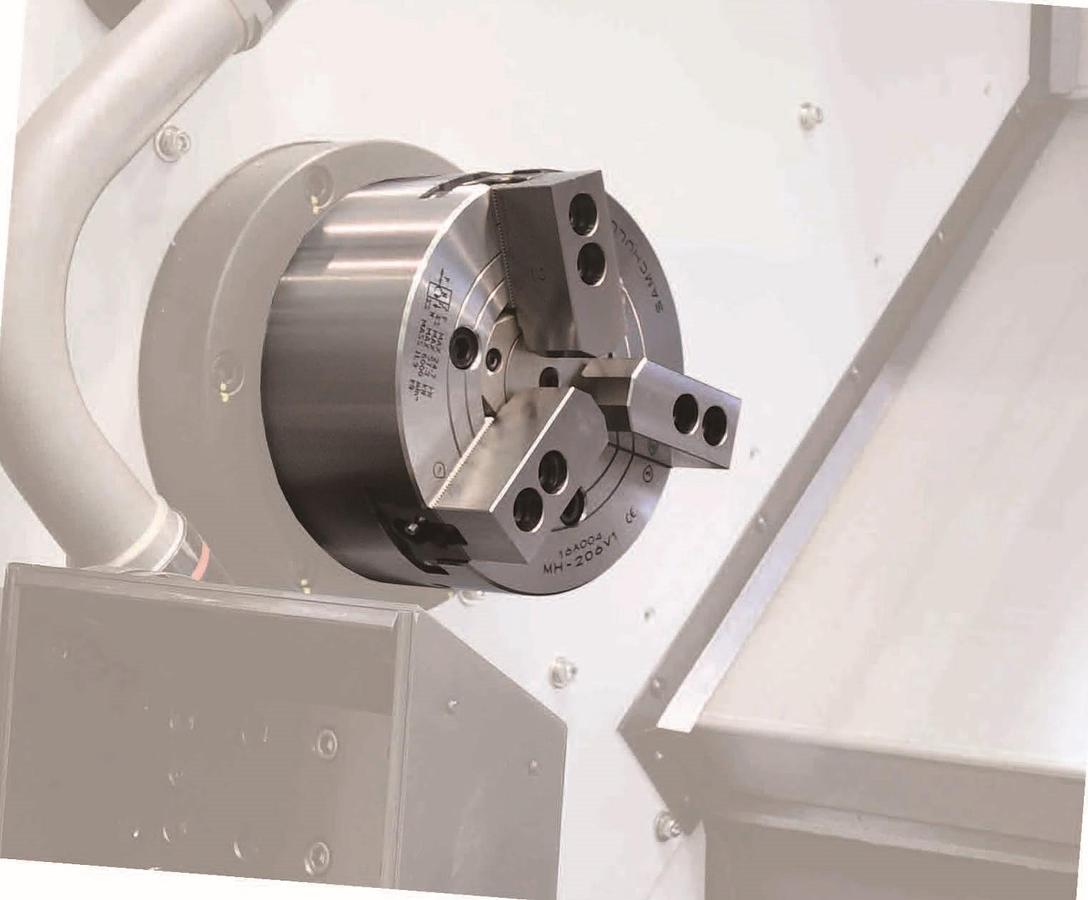

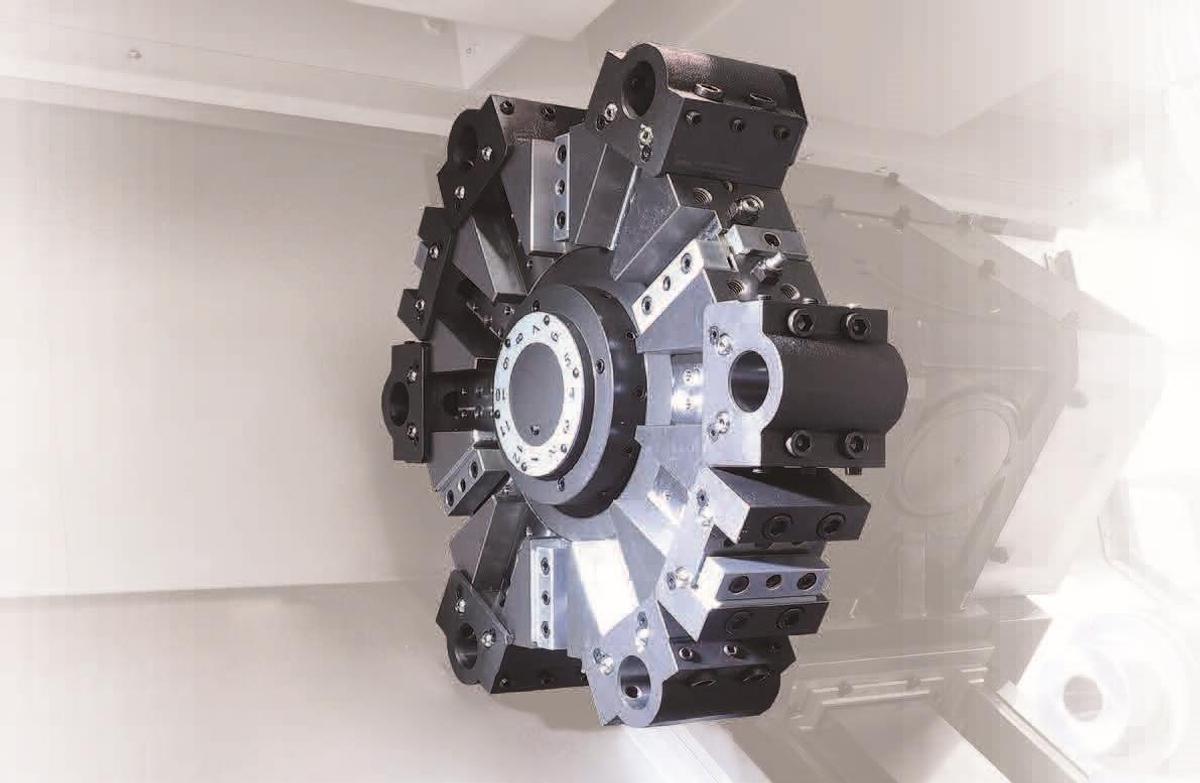

CAPACITY Swing over the bed 22.44" Swing over the cross slide 18.11" Maximum turning diameter 14.17" Maximum milling diameter 14.64" Maximum turning length 20.47" MAIN SPINDLE Chuck size 8" Spindle nose A2-6 (ASA) Main spindle motor (Duty / Cont.) 25 / 20 hp Spindle speed 4,500 rpm Bore diameter 2.99" Draw tube ID 2.67" Spindle torque (Max) 302.9 ft.-lbs. Spindle drive method Belt C-axis minimum programmable angle 0.001 deg C-axis position accuracy 0.0167 deg C-axis repeatability �0.0056 deg BED, SLIDE & CARRIAGE X axis travel 8.46" Z axis travel 22.04" Rapid traverse (X / Z) 945 ipm/1181 ipm Guide ways (X / Z) Box Way Bed structure 45deg Slant bed Ballscrew diameter (X / Z) 1.10" / 1.57" Axis feed thrust, Maximum (X/Z) 5,720 lbs./5,720 lbs. Repeatability (X/Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 (24) Tools (BMT55) Turret indexing speed 1 station 0.2 seconds Curvic coupling 3 Piece hyd clamp/Servo index Coupling diameter / Clamp force 6.57" / 7,833 lbs. Tool size (turning and facing) 1" Tool size (boring bar maximum diameter) 1.58" Rotating tool rpm 5,000 rpm Rotating tool spindle motor 7.5 hp Rotati ng tool spindle torque 25.8 ft-lbs. Turret index repeatability �0.000197" TAILSTOCK Tailstock center (Taper) MT #4 (Live Center) Quill diameter 2.95" Quill travel (by hydraulic) 3.14" Maximum thrust of quill 1135 lbs. COOLANT SYSTEM Coolant pump motor ( 1.2 hp / 65 psi) 3hp (145 psi) [value package]* Coolant tank capacity 53 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 3.7 gal. Hydraulic oil required (or equivalent) ISO VG32 Way lubrication tank capacity 0.48 gal. Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor Space Requirements (LxWxH) 147" x 61" x 76" Machine Weight 8,820 lbs. Power Consumption 31 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC Model Fanuc 0i-TF PLUS Display Unit 10.4" TFT LCD Color Monitor SHIPPING DIMENSIONS (L x W x H, Weight) Machine and Chip Conveyor 142" x 91" x 85", 11,464 lbs. Equipped With:SMEC OPTION PACKAGE: Tool Presetter Auto Parts Catcher Oil Skimmer Programmable Tailstock (Body and Quill) Barfeeder Interface Manual Guide i Chip Conveyor - Side Discharge 145 PSI Coolant Pump* 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light
