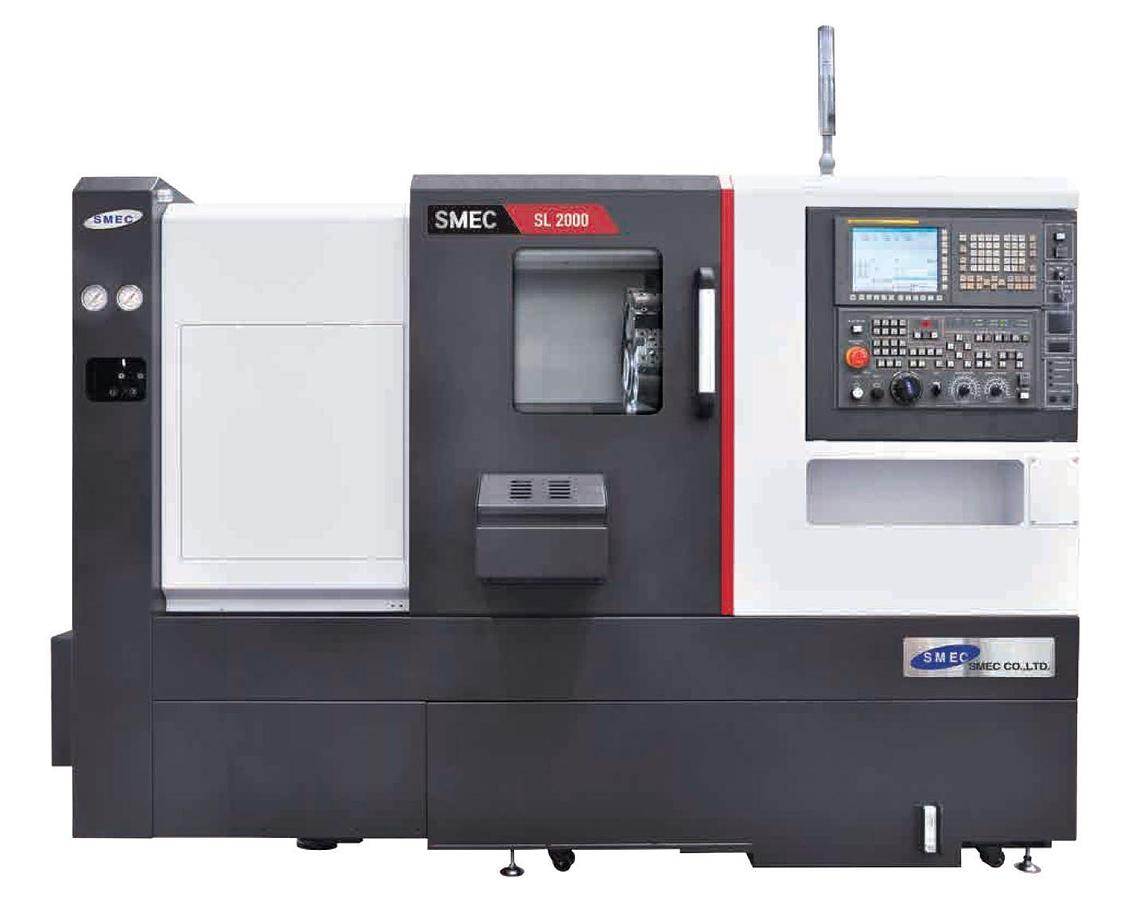

SMEC SL 2000BE CNC Turning Center

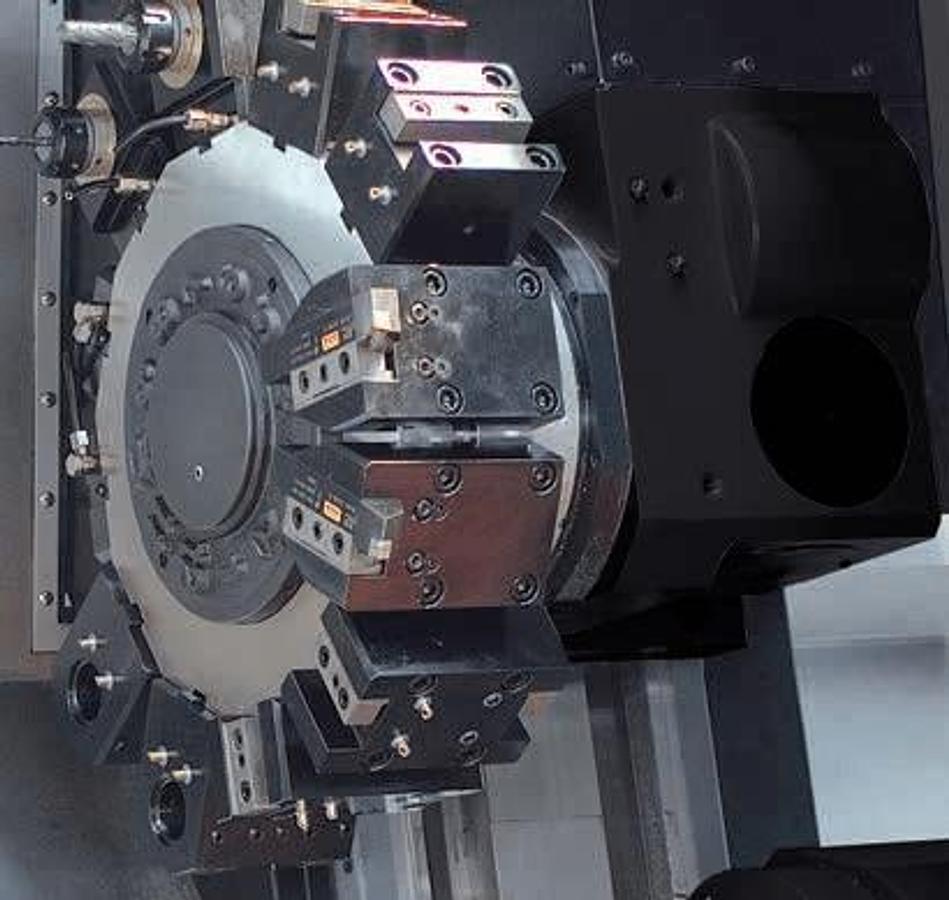

CAPACITY Swing over the bed 22.44" Swing over the cross slide 18.11" Maximum turning diameter 14.17" Maximum turning length 21.26" MAIN SPINDLE Chuck size 8" Spindle nose A2-6 (ASA) Main spindle motor (Duty / Cont.) 25 / 20 hp Spindle speed 4,500 rpm Bore diameter 2.99" Draw tube ID 2.67" Spindle torque (Max) 302.9 ft.-lbs. Spindle drive method Belt BED, SLIDE & CARRIAGE X axis travel 8.26" Z axis travel 22.04" Rapid traverse (X / Z) 944 ipm/1181 ipm Guide ways (X / Z) Box Way Bed structure 45deg Slant bed Ballscrew diameter (X / Z) 1.10" / 1.57" Axis feed thrust, Maximum (X/Z) 3,432 lbs./ 5,720 lbs. Repeatability (X/Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Tools (12) OD (12) ID Turret indexing speed 1 station 0.15 seconds Curvic coupling 3 Piece hyd clamp/Servo index Coupling diameter / Clamp force 6.57" / 7,833 lbs. Tool size (turning and facing) 1" Tool size (boring bar maximum diameter) 2" Turret index repeatability �0.00012" TAILSTOCK Tailstock center (Taper) MT #4 (Live Center) Quill diameter 2.95" Quill travel (by hydraulic) 3.93" Maximum thrust of quill 1135 lbs. COOLANT SYSTEM Coolant pump motor ( 1.2 hp / 65 psi) 1.2hp (65 psi) Coolant tank capacity 53 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 3.7 gal. Hydraulic oil required (or equivalent) ISO VG32 Way lubrication tank capacity 0.48 gal. Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor Space Requirements (LxWxH) 149" x 61" x 76" Machine Weight 8,600 lbs. Power Consumption 31 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC Model Fanuc 0i-TF PLUS Display Unit 10.4" TFT LCD Color Monitor SHIPPING DIMENSIONS (L x W x H, Weight) Machine and Chip Conveyor 146" x 91" x 85", 10,362 lbs. Equipped With:SMEC OPTION PACKAGE: Programmable Tailstock (Body and Quill) Barfeeder Interface Manual Guide I Chip Conveyor - Side Discharge 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light OPTIONAL EQUIPMENT ML2C92001A Auto Door - Single Door Open with Safety Release (retrofittable) $ 6,020.00 SL2000B PartC Auto Parts Catcher (retrofittable) $ 4,400.00 SL2000B ToolP Tool Presetter (retrofittable) $ 4,400.00 ML1290806B 145 PSI Coolant Pump, Replaces Standard Pump $ 1,630.00 ML4583803 290 PSI Coolant Pump, Replaces Standard Pump $ 4,010.00
