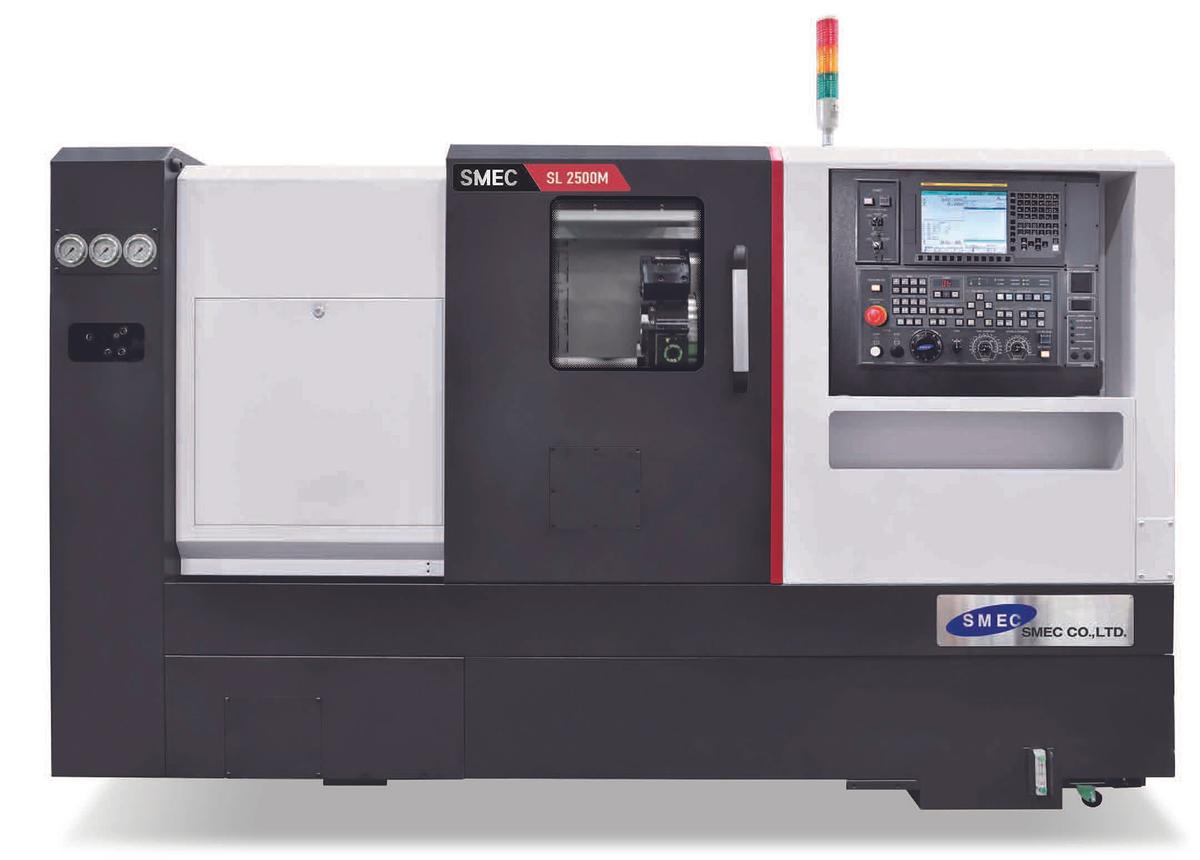

2024 SMEC SL 2500E CNC Turning Center

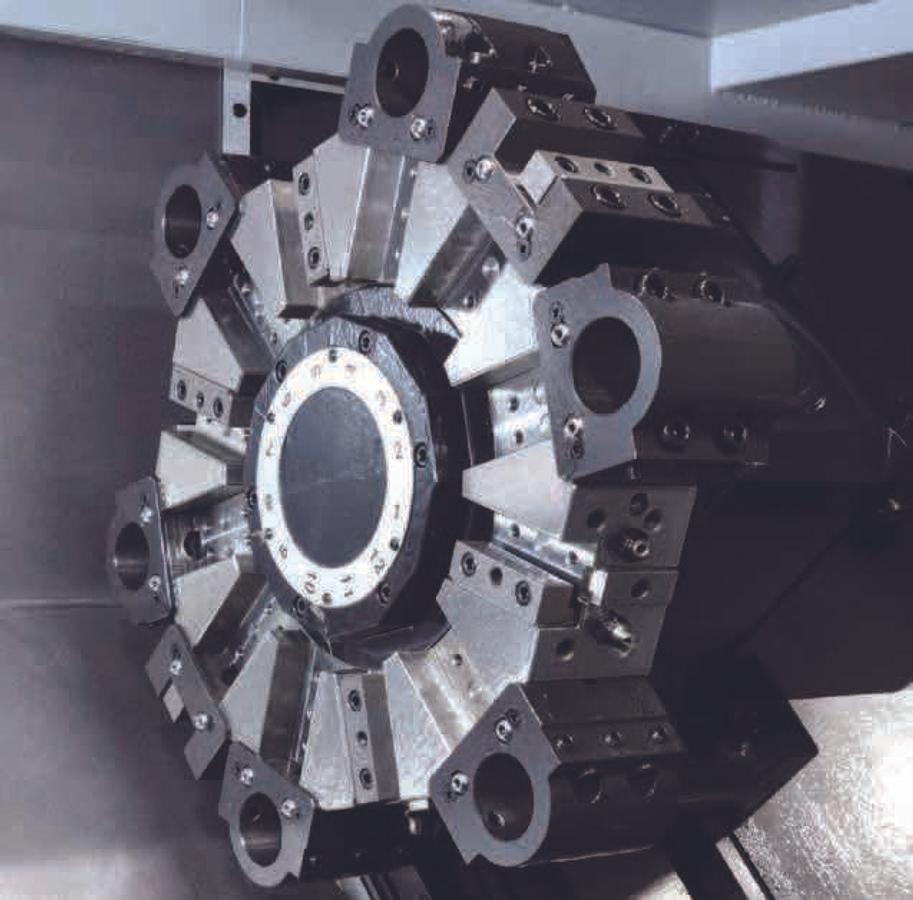

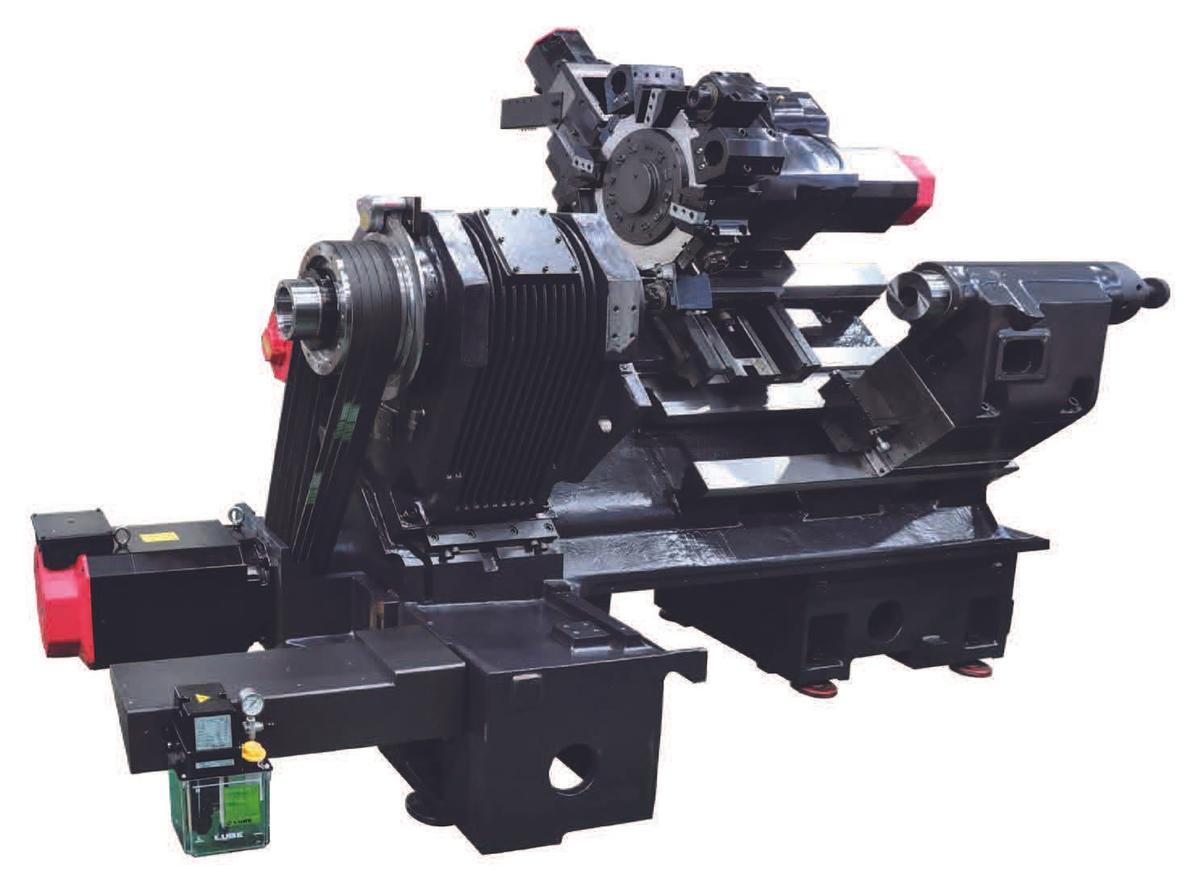

CAPACITY Swing over the bed 25.59" Swing over the cross slide 18.90" Maximum turning diameter 16.93" Maximum turning length 21.81" MAIN SPINDLE Chuck size 10" Spindle nose A2-8 (ASA) Main spindle motor (Max / Duty / Cont.) 35 / 30 / 25 hp Spindle speed 3,500 rpm with 10" chuck Bore diameter 3.39" Draw tube ID 3.03" Spindle torque (Max) 541.4 ft.-lbs. Spindle drive method Belt BED, SLIDE & CARRIAGE X axis travel 9.65" Z axis travel 23.62" Rapid traverse (X / Z) 945 ipm / 1181 ipm Guide ways (X / Z) Box Way Bed structure 45 deg Slant bed Ballscrew diameter (X / Z) 1.10" / 1.57" Axis feed thrust, Max (X / Z) 8,136 lbs. / 6,780 lbs. Repeatability (X / Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Tools (12) OD (12) ID Turret indexing speed (1 station) 0.15 Seconds Curvic coupling 3 Piece hyd clamp / Servo index Coupling diameter / Clamp force 7.05" / 10,438 lbs. Tool size (turning and facing) 1" �� wedge clamp Tool size (boring bar maximum diameter) 2" Turret index repeatability �0.00012" TAILSTOCK Tailstock center (taper) MT #4 (Built In) Quill diameter 4.33" Quill travel (by hydraulic) 3.94" Maximum thrust of quill 2,220 lbs. COOLANT SYSTEM Coolant pump motor 1.2 hp (65 psi) Coolant tank capacity 46.2 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 3.7 gal. Hydraulic oil required (or equivalent) ISO VG32 Way lubrication tank capacity 0.48 gal. Way lubrication oil required (or equivalent) ISO VG68 MACHINE SIZE Floor Space Requirements (L x W) 167" x 64" Machine Weight 11,244 lbs. Power Consumption 41 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC Model Fanuc 0i-TF PLUS Display Unit 10.4" TFT LCD Color Monitor SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 166" x 91" x 87", 12,787 lbs. Equipped With:SMEC A PACKAGE: - Programmable Tailstock (Body and Quill) - Built-in Tailstock Bearings MT #4 - Tool Presetter (*Retrofiitted upon Installation*) - Barfeeder Interface - Manual Guide I - Chip Conveyor - Side Discharge - 1 Set of Hard Jaws - 3 Sets of Soft Jaws - 3 Color Tower Light
