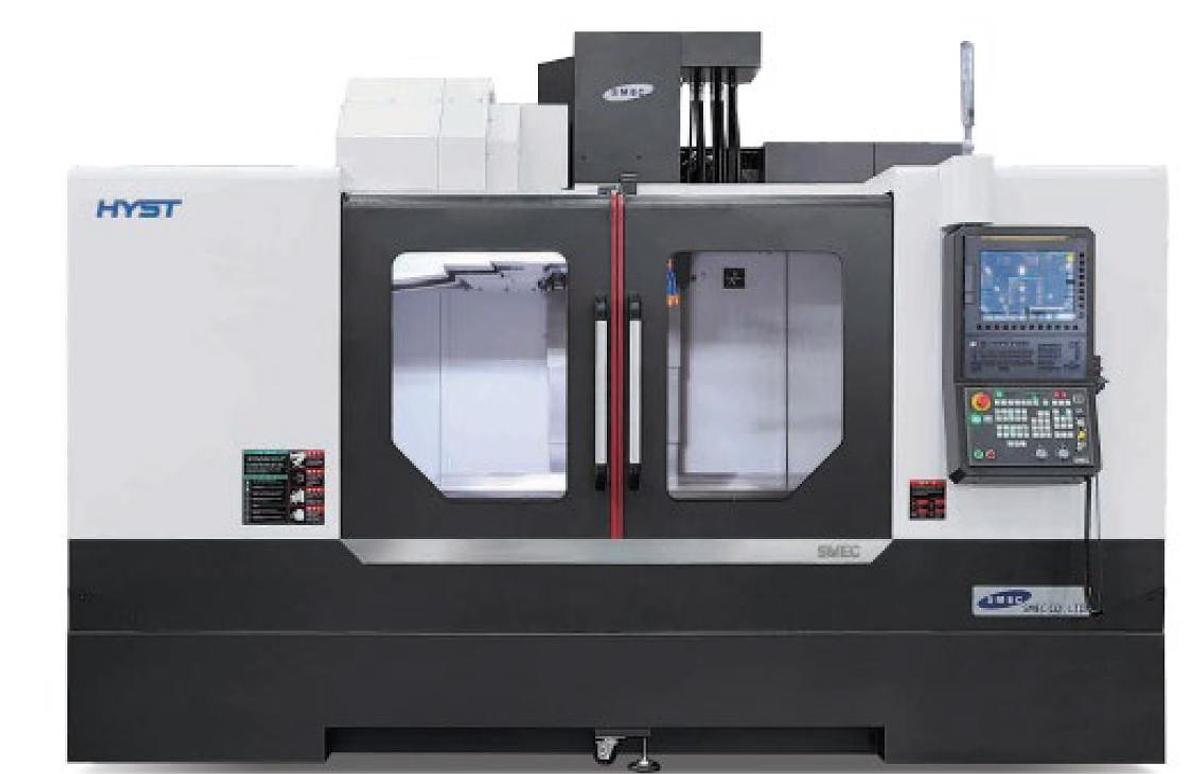

SMEC HYST 5700 (CAT 40) 12K RPM Vertical Machining Center

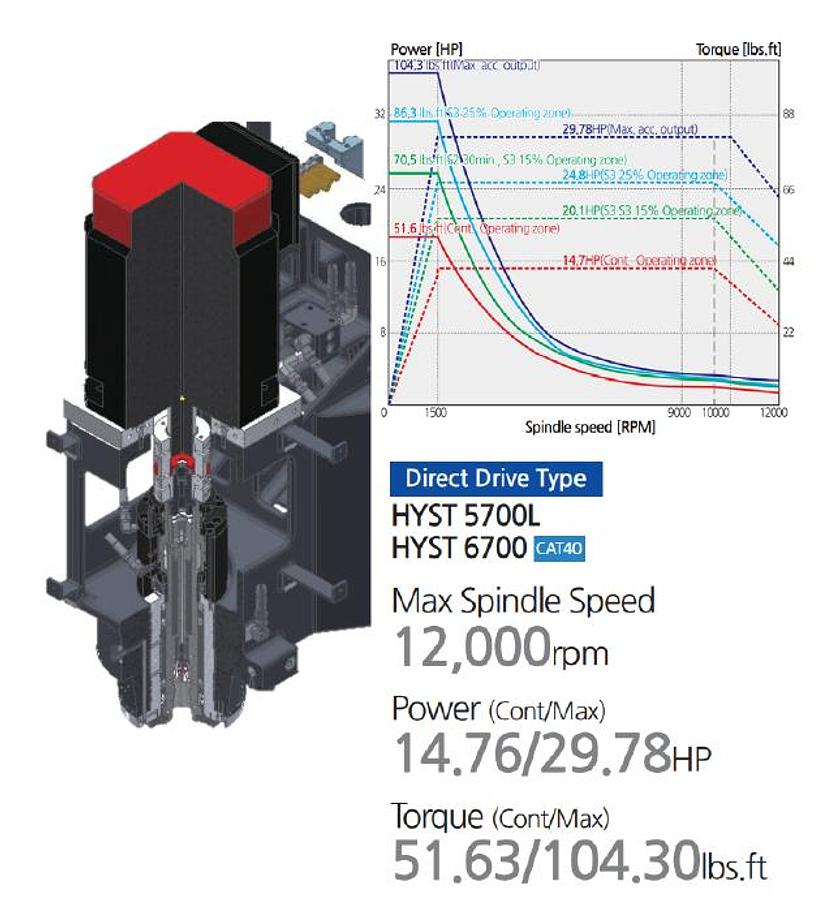

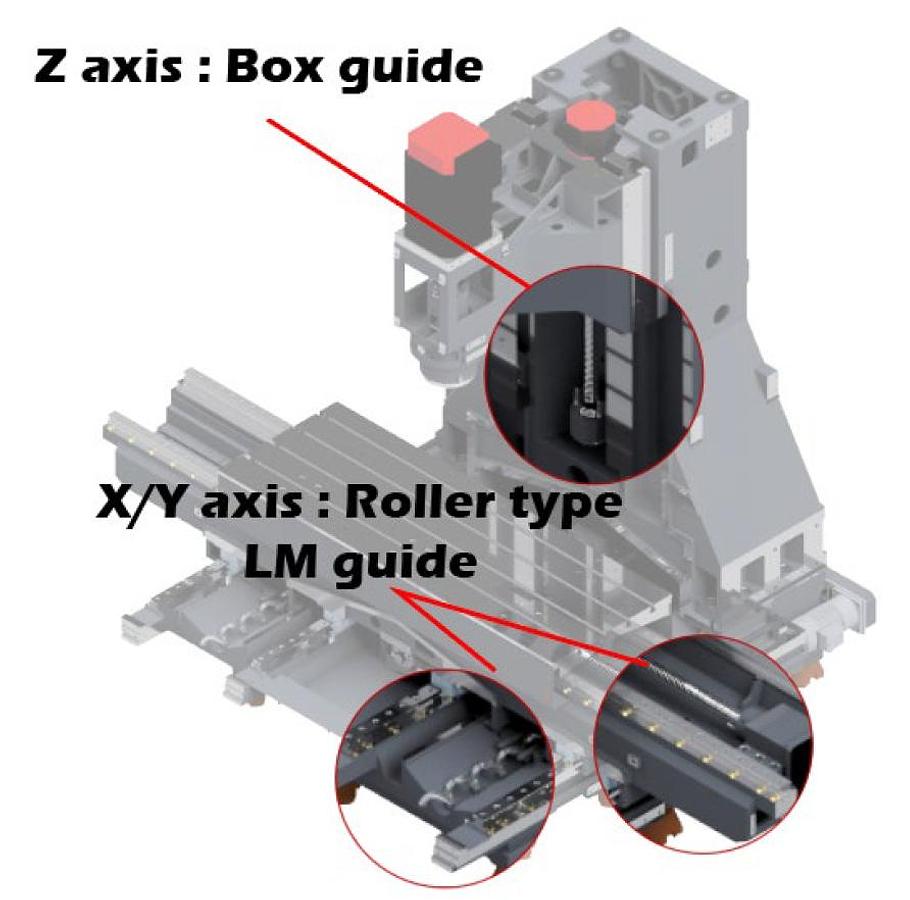

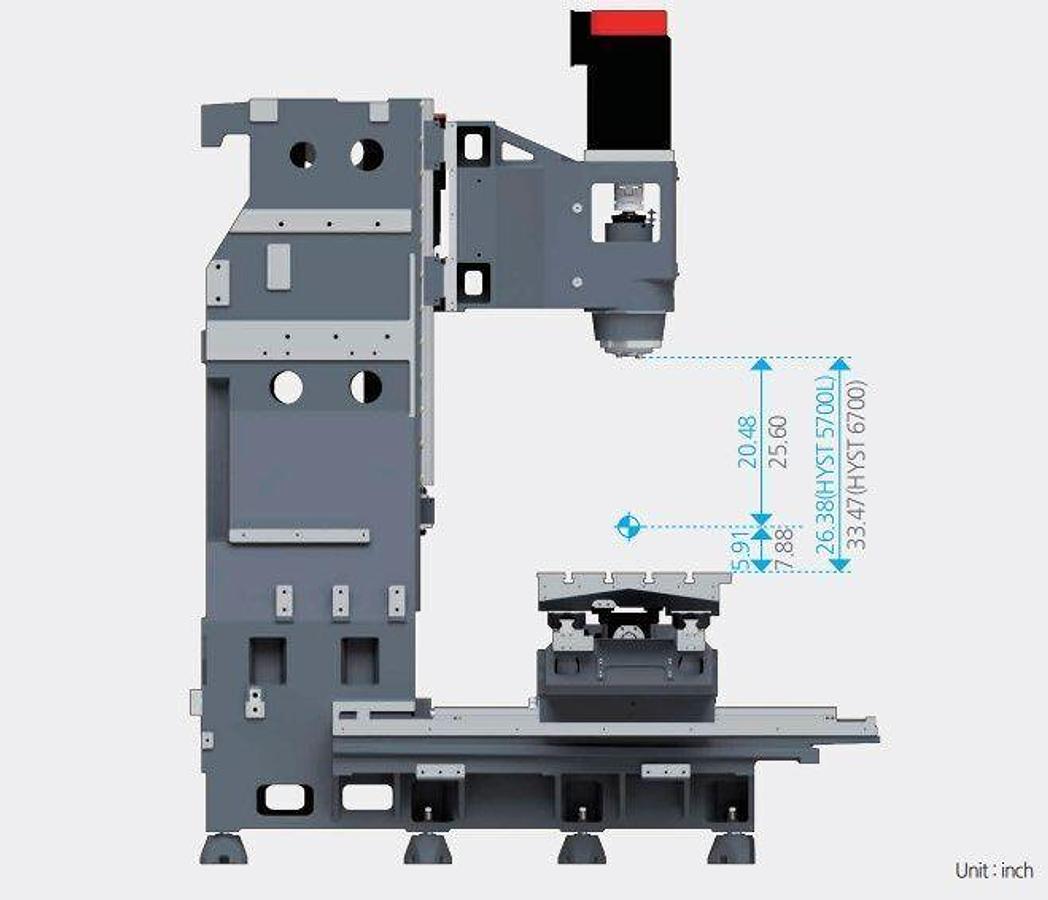

CAPACITY X axis travel 41.33" Y axis travel 22.44" Z axis travel 20.47" Table size 22.44" x 51.18" Table loading capacity 2,204 lbs. Table T-slot spacing x width (4) - 4.93" x 0.71" SPINDLE Distance from tabletop to spindle nose 5.90" ~26.37" Distance from column to spindle center 24.01" Spindle taper CAT40 (Big Plus) Spindle speed 12,000 rpm AC spindle motor (Max) 29.78 hp Maximum spindle torque (S3) 87.03 ft.-lbs. Spindle Drive Method Direct AUTO TOOL CHANGER Magazine capacity 30 Tool shank AT40 Pull stud type MAS P40T-1 Maximum tool diameter [adjacent empty] 3.15" [4.93"] Maximum tool length 11.82" Maximum tool weight 17.64 lbs. Tool selection method Memory Random Tool changing time (T-T) 1.3(60Hz) sec. FEED RATE Rapid traverse (X / Y / Z) 1,417ipm/1,417 ipm/1,181 ipm Cutting feed rate ipm 590.56 ipm SERVO DRIVE SYSTEM Feed motor (X / Y / Z) 4 / 4 / 7 (kw) Ballscrew diameter (X / Y / Z) 1.57" / 1.57" / 1.57" Axis feed thrust, Cont. (X / Y / Z) 3498 / 3419 x 4862 lbs. Slide ways (X / Y / Z) LM / LM /Box Slide way span (X / Y / Z) 15.15�� / 34.44" x 19.68" Slide way width (X / Y / Z) 1.77" / 1.77" / 4.72" Position accuracy �0.0001" Repeatability �0.00008" GENERAL Floor space (L) x W x H) 164.60" x 94" x 110" Machine weight 14,740 lbs. Power required 32 kVA Voltage 220V � 10% / 3 Phase CNC system Fanuc 0i-MF PLUS SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 126" x 94" x 110" (15,771 lbs) Crate #2 (Chip Conveyor) 181" x 91" x 77" ( 1,984 lbs.) Equipped With:SMEC A PACKAGE: 12,000 rpm with Spindle Cooling Unit 30 Tools Double Arm ATC 290 psi (Max) Through-Spindle Coolant System Oil Skimmer Full Enclosed Splash Guard 4th Axis Interface Prep Kit Renishaw Probe Ready Kit (OMI-2T) Rigid Tapping Manual Guide i AI Contour Control II SMEC A VALUE PACKAGE: Chip Conveyor Spindle Air Blow, External Coolant Gun 3 Color Tower Light ADDITIONAL OPTIONS: Renishaw OMP60 (AA) Spindle Probe - $ 4,880.00 Renishaw OTS (AA) Tool Setter - $ 2,540.00
