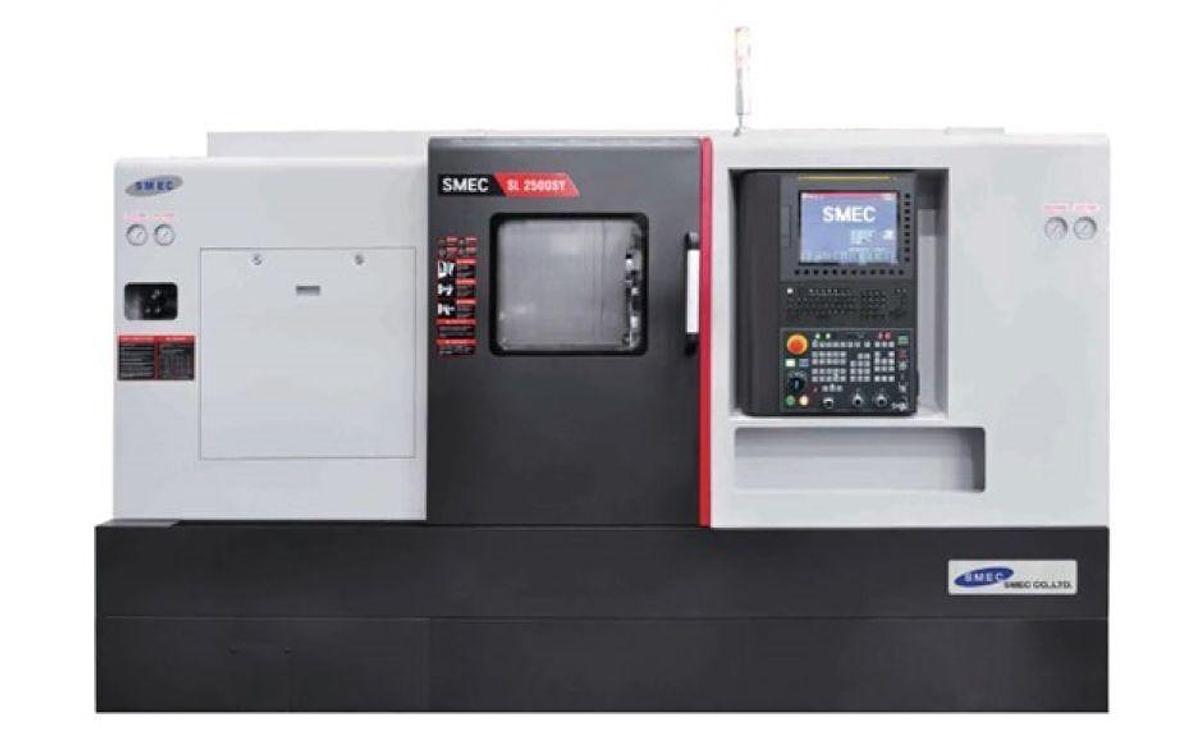

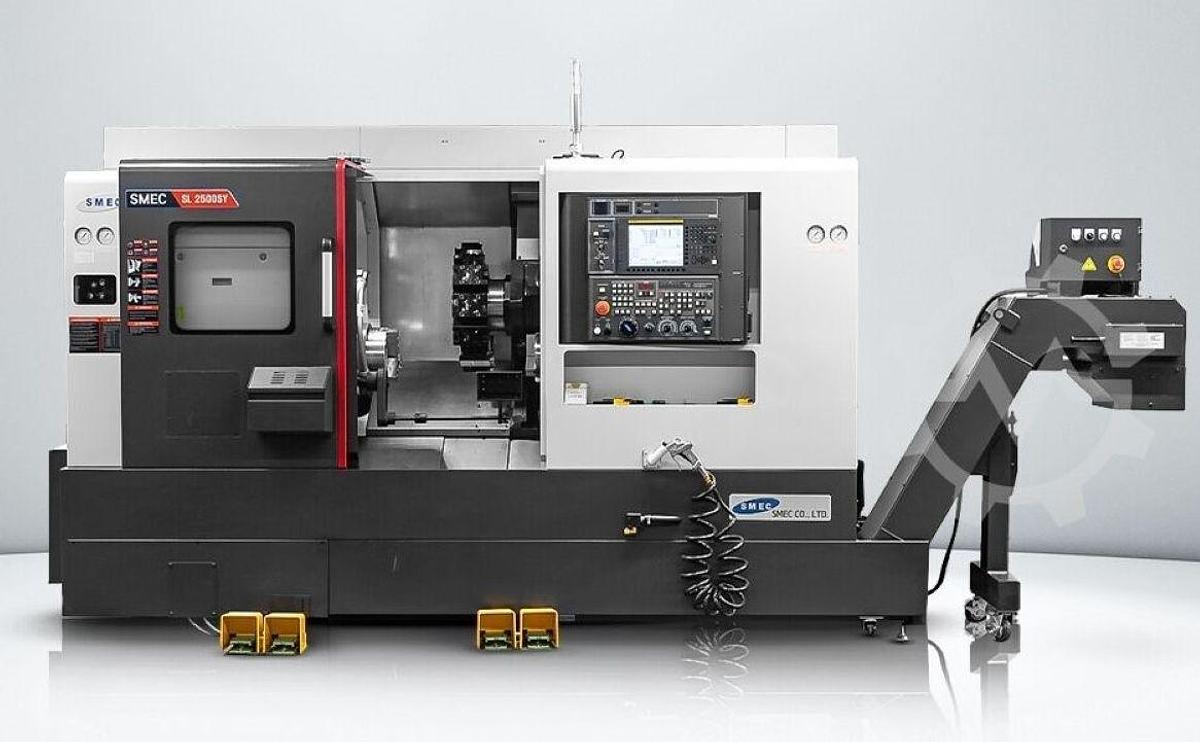

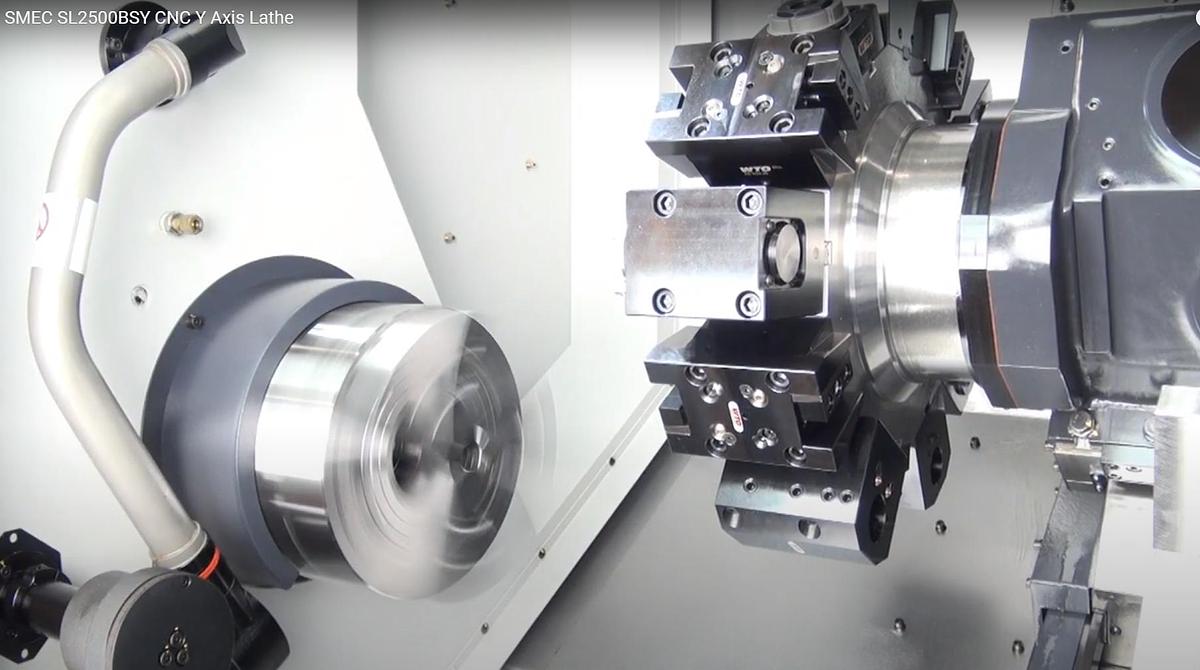

2025 SMEC SL 2500BSY

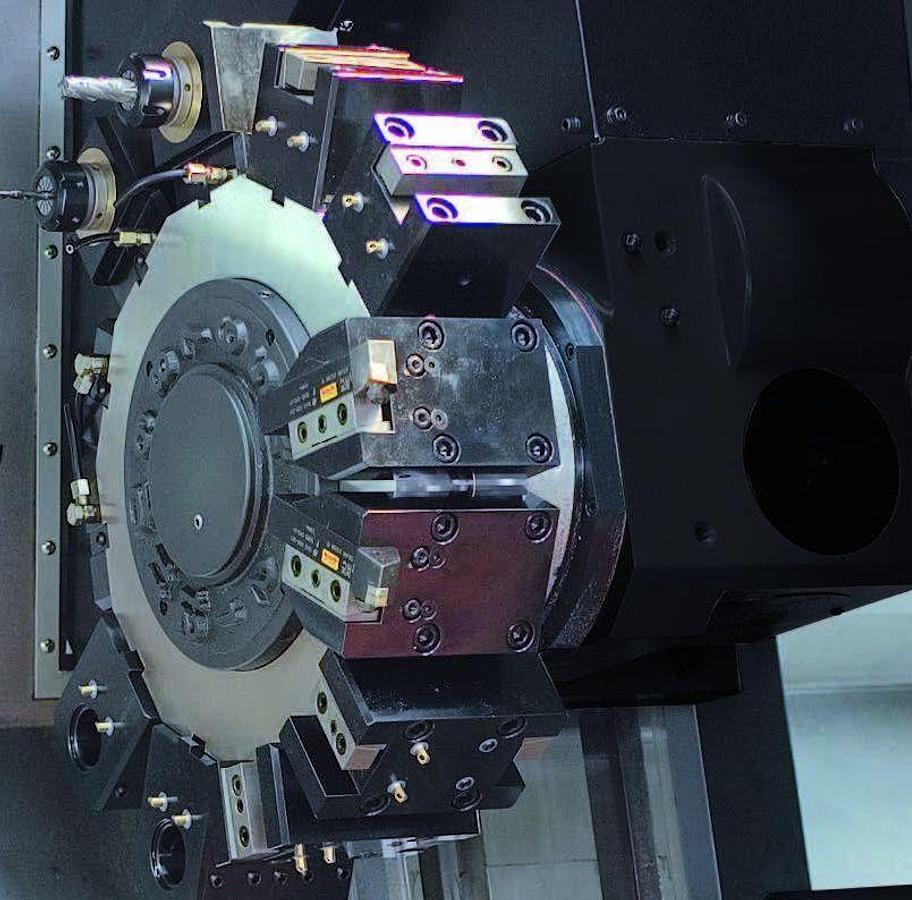

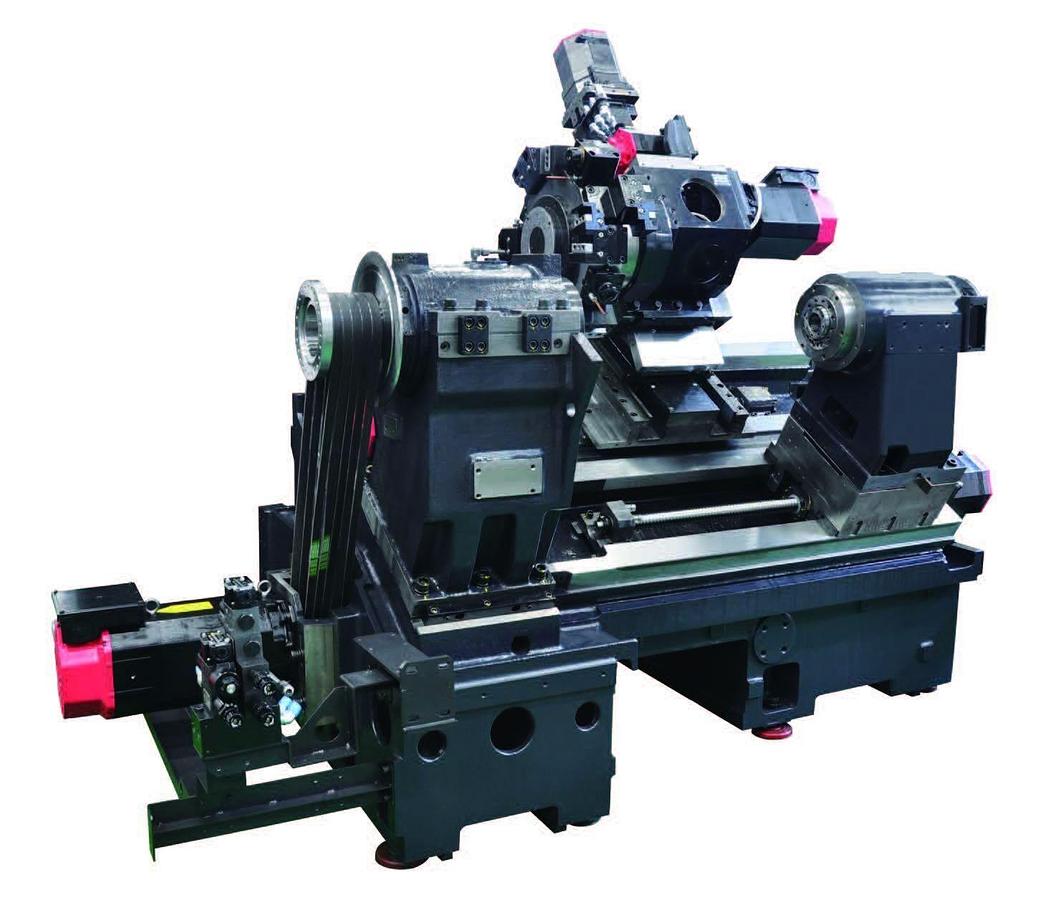

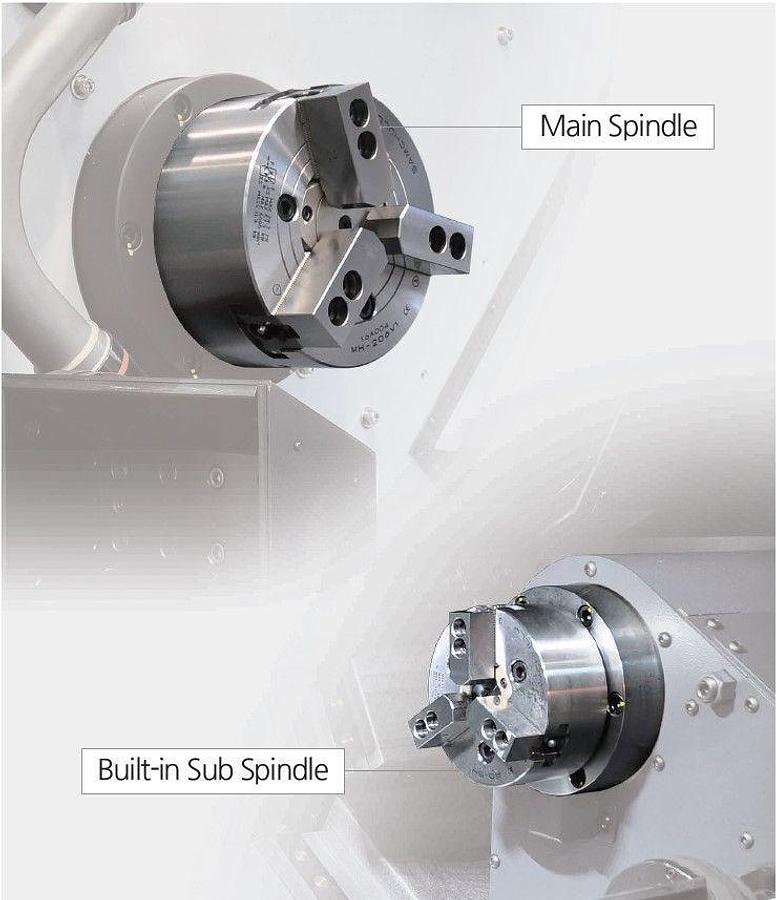

CAPACITY Swing over the bed 25.59" Swing over the cross slide 21.26" Maximum turning diameter 14.17" Maximum turning length 18.75" MAIN SPINDLE Chuck size 10" Spindle nose A2-8 (ASA) Main spindle motor (Max/Duty/Cont) 35 / 30 / 25 hp Spindle speed 3,500 rpm Bore diameter 3.39" Draw tube ID 3.03" Spindle torque (Max) 542.0 ft-lbs Spindle drive method Belt C axis minimum programmable angle 0.001 deg C axis position accuracy 0.0167 deg C-axis repeatability �0.0056 deg SUB SPINDLE Chuck size 8" Spindle nose A2-6 (ASA) Spindle motor 20 / 15 hp Spindle speed 4,000 rpm Bore diameter 2.40" Draw tube ID 2.05" Spindle torque 153.4 ft-lbs C axis minimum programmable angle 0.001 deg C axis position accuracy 0.0167 deg C-axis repeatability �0.0056 deg BED, SLIDE & CARRIAGE X / Y / Z / ZB axis travel 9.25"/3.94"/22.83"/22.24" Rapid traverse (X / Y / Z / ZB) 709 ipm/394 ipm/945 ipm/945 ipm Guide ways (X / Y / Z / ZB) Box Way Bed structure 30-deg Slant bed Ballscrew diameter (X / Y / Z / ZB) 1.42" / 1.42" / 1.57" / 1.57" Axis feed thrust, Max (X/Y/Z/ZB) 4,449lbs/8,898lbs/6,780lbs/8,136lbs Repeatability (X / Y-Z-ZB) �0.00008" / �0.00012" TURRET Number of tool stations 12 (24) Tools (BMT65) Turret indexing speed (1 station) 0.2 seconds Curvic coupling 3 Piece hydraulic clamp / Servo index Coupling diameter / Clamp force 7.05" / 10,431 lbs. Tool size (turning and facing) 1" �� Wedge clamp Tool size (boring bar max diameter) 2" Rotating tool rpm 5,000 rpm Rotating tool spindle motor 7.5 hp Rotating tool spindle torque 27.7 ft-lbs. Turret index repeatability �0.00012" COOLANT SYSTEM Coolant pump motor 1.2 hp (65 psi) Coolant tank capacity 45.7 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 3.7 gal. Hydraulic oil required (or =) ISO VG32 Way lubrication tank capacity 0.79 gal Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor Space Requirements (L x W) 183.7" x 76.0" Machine Weight 13,228 lbs. Power Consumption 45 kVA 66 kVA Voltage 220V�10% 60 Hz, 3 phase CNC CNC Model Fanuc 0i-TF PLUS Display Unit 15" TFT LCD SL 2500BSY SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 201" x 91" x 94", 16,535 lbs. Equipped With:SMEC PACKAGE: Tool Presetter Oil Skimmer Barfeeder Interface Parts Ejector-Pneumatic Air Blow for Main/Sub-Spindle Coolant Flush Thru Sub-Spindle Manual Guide i Helical Interpolation SMEC VALUE PACKAGE: Chip Conveyor - Side Discharge Internal Parts Catcher / Parts Conveyor 145 PSI Coolant Pump 2 Sets of Hard Jaws 6 Sets of Soft Jaws 3 Color Tower Light FANUC OPTIONS: (Included In Price) Helical Interpolation (Standard) Arbitrary Speed Threading function Spindle Speed Variation function
