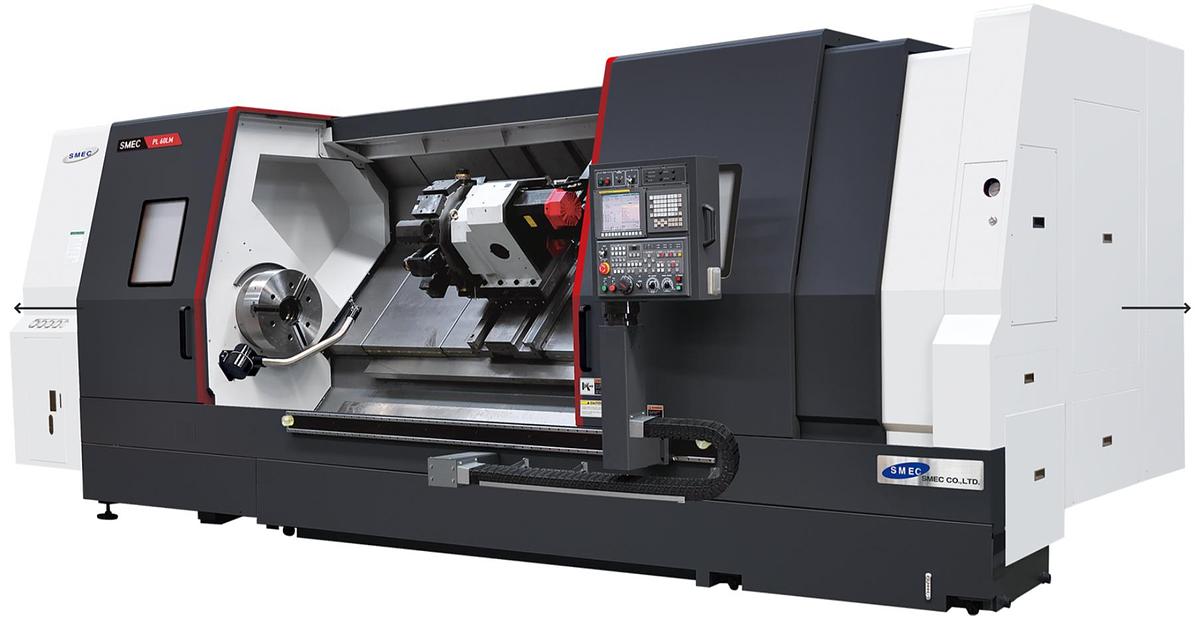

2024 SMEC SL 6500BLM

CAPACITY Swing over the bed 40.55" Swing over the cross slide 31.49" Maximum turning diameter 35.43" Maximum milling diameter 33.18" Maximum turning length 3200 125.98" MAIN SPINDLE Chuck size 24" Spindle nose A2-15 (ASA) Main spindle motor (Cont./30min/Max) 50/ 60/ 74hp Spindle speed 1,200 rpm (24" chuck) Bore diameter 5.98" Draw tube ID 5.51" Spindle torque (Max) 4,955 ft.-lbs. Spindle drive method 3 Speed gear C axis minimum programmable angle 0.001 deg C axis position accuracy 0.0167 deg C-axis repeatability �0.0056 deg BED, SLIDE & CARRIAGE X axis travel 18.50" Z axis travel 3200 128.73" Rapid traverse (X) 472 ipm Rapid traverse (Z) 393 ipm Guide ways (X / Z) Box Way Bed structure 45 deg Slant bed Ballscrew diameter (X / Z) 1.97" / 2.48" Axis feed thrust, Max. (X / Z) 10,550 lbs / 13,771 lbs Repeatability (X / Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Tools (BMT85) Turret indexing speed (1 station) 0.25 seconds Curvic coupling 3 Piece hyd clamp / Servo index Coupling diameter / Clamp force 12.64"/ 40,156 lbs. Tool size (turning and facing) 1.25" Wedge clamp Tool size (boring bar maximum diameter) 3" Rotating tool rpm 3,000 rpm Rotating tool spindle motor 14.7 hp Rotating tool spindle torque 103.3 ft-lbs. Turret index repeatability �0.00012" vs. �0.00039" TAILSTOCK Tailstock center (taper) MT #6 (Built-in) Quill diameter 7.09" Quill travel (by hydraulic) 5.91" Maximum thrust of quill 9,744 lbs. vs. 14,397 COOLANT SYSTEM Coolant pump motor(1.2 hp / 65 psi) 3 hp (145 psi) Coolant tank capacity 158 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 17.44 gal. Hydraulic oil required (or equivalent) ISO VG32 Way lubrication tank capacity 0.79 gal. Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor Space Req. (L x W x H) 332" x 109" x 103" Machine Weight 48,510 lbs. Power Consumption 69 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC Model Fanuc 0i-TF PLUS Display Unit 15" TFT LCD Color Monitor SL6500BLM (3200) SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 303" x 95" x 117", 49,163 lbs. Crate #2 (Chip Conveyor) 270" x 91" x 75", 3,527 lbs. Equipped With:SMEC PACKAGE: Tool Presetter Programmable Tailstock (Body & Quill) Built-in Tailstock Bearings MT #6 Barfeeder Interface Manual Guide i Chip Conveyor - Side Discharge 145 PSI Coolant Pump* 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light Hydraulic Steady Rest Preparation - Includes Bracket, Hydraulic Connections, Fully Programmable along Z-Axis
