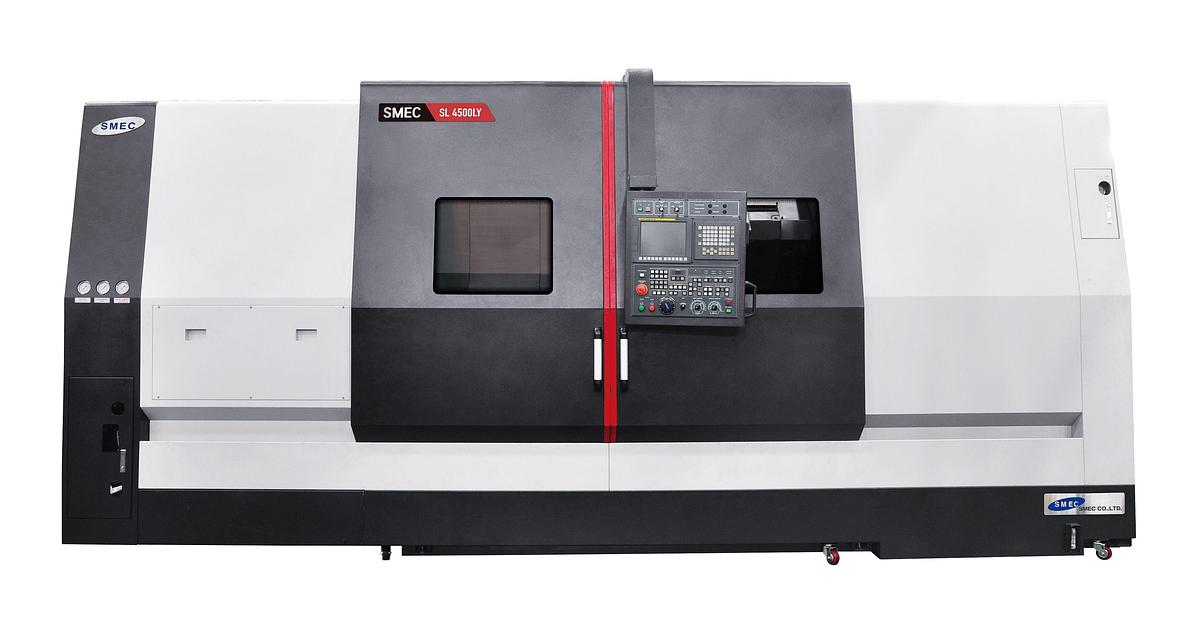

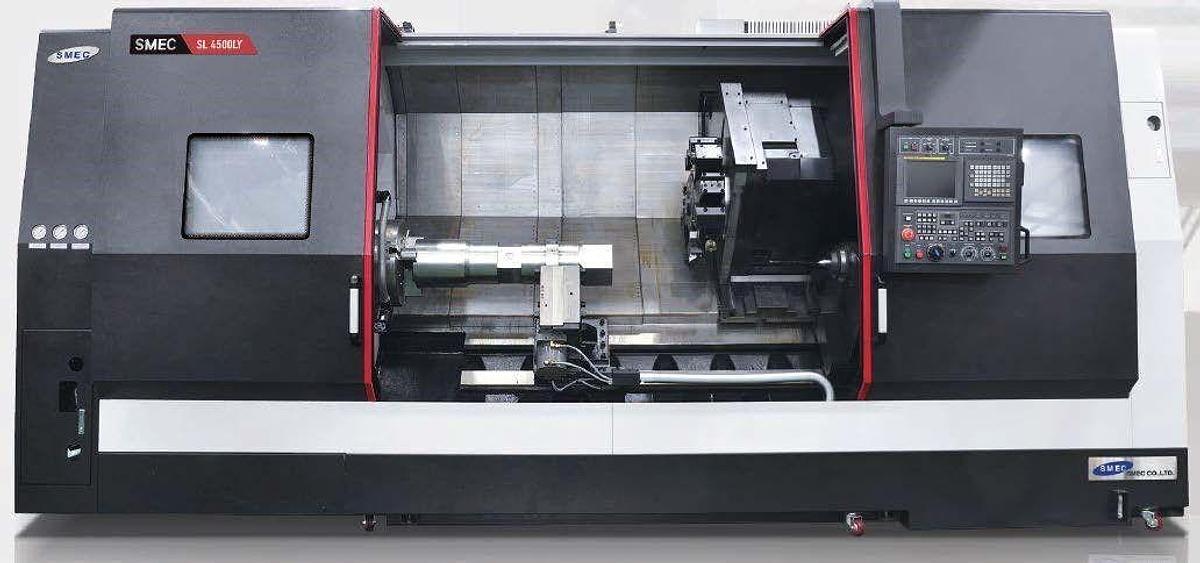

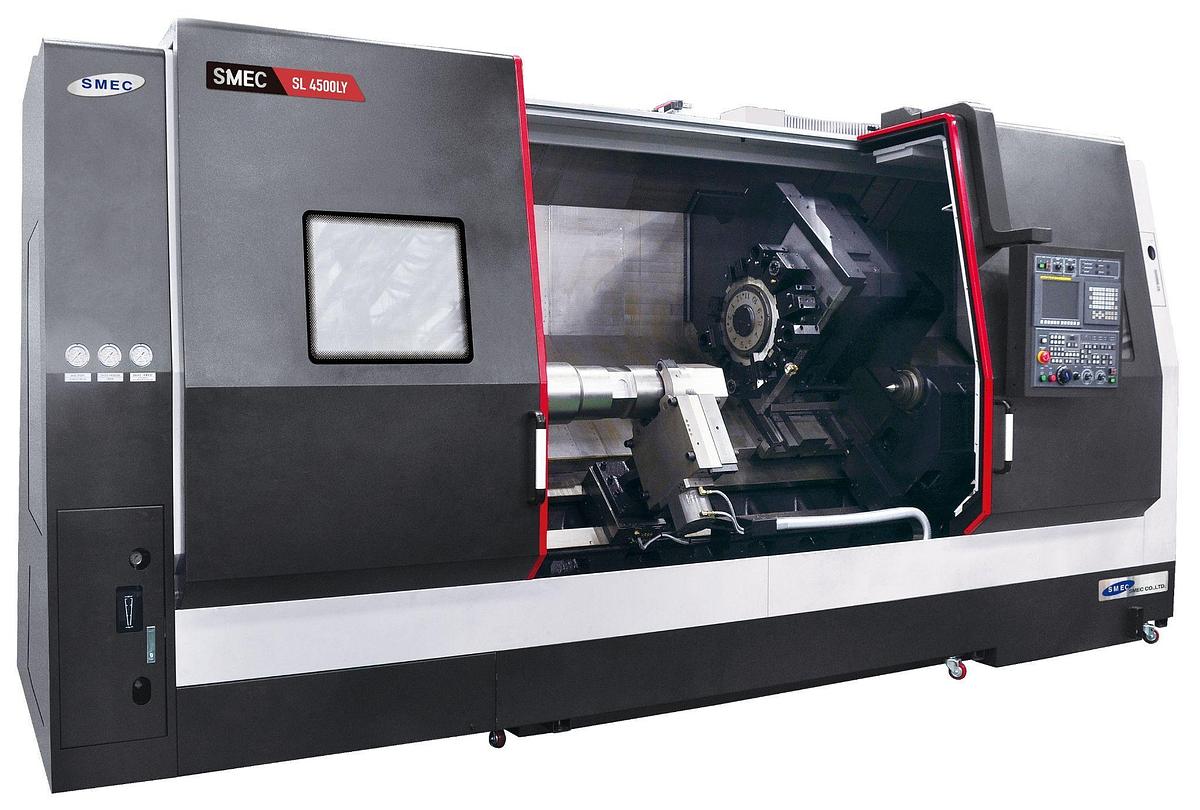

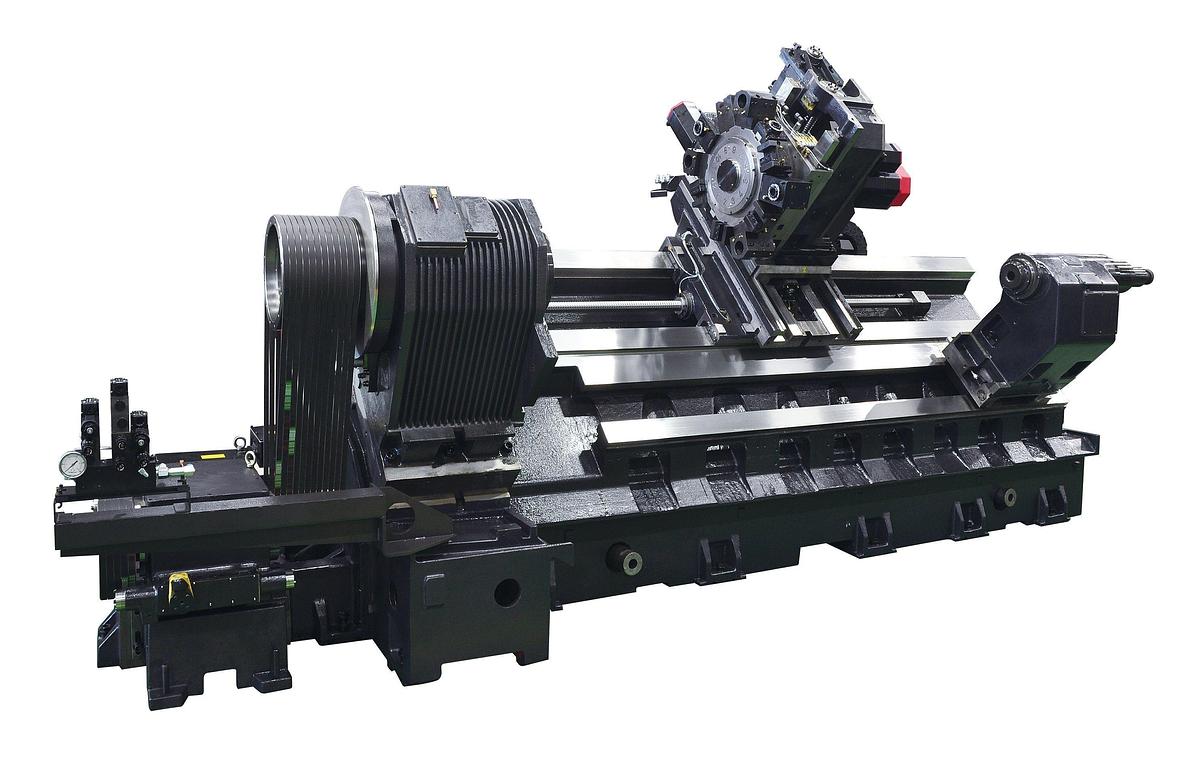

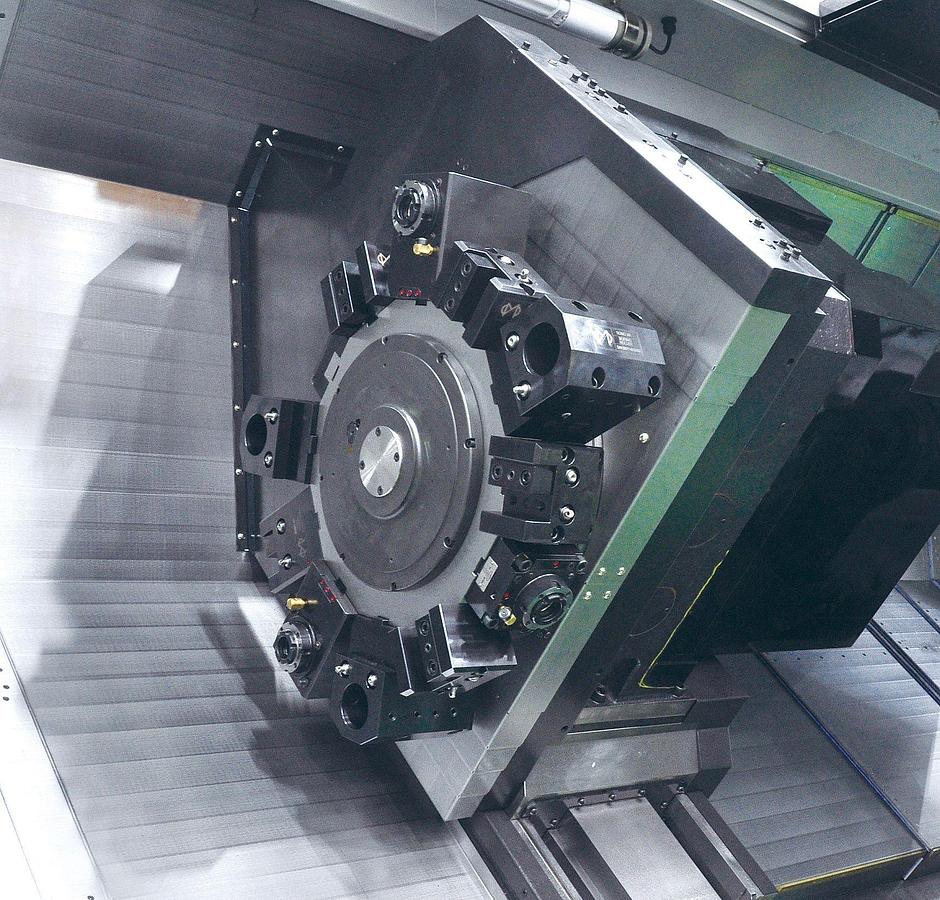

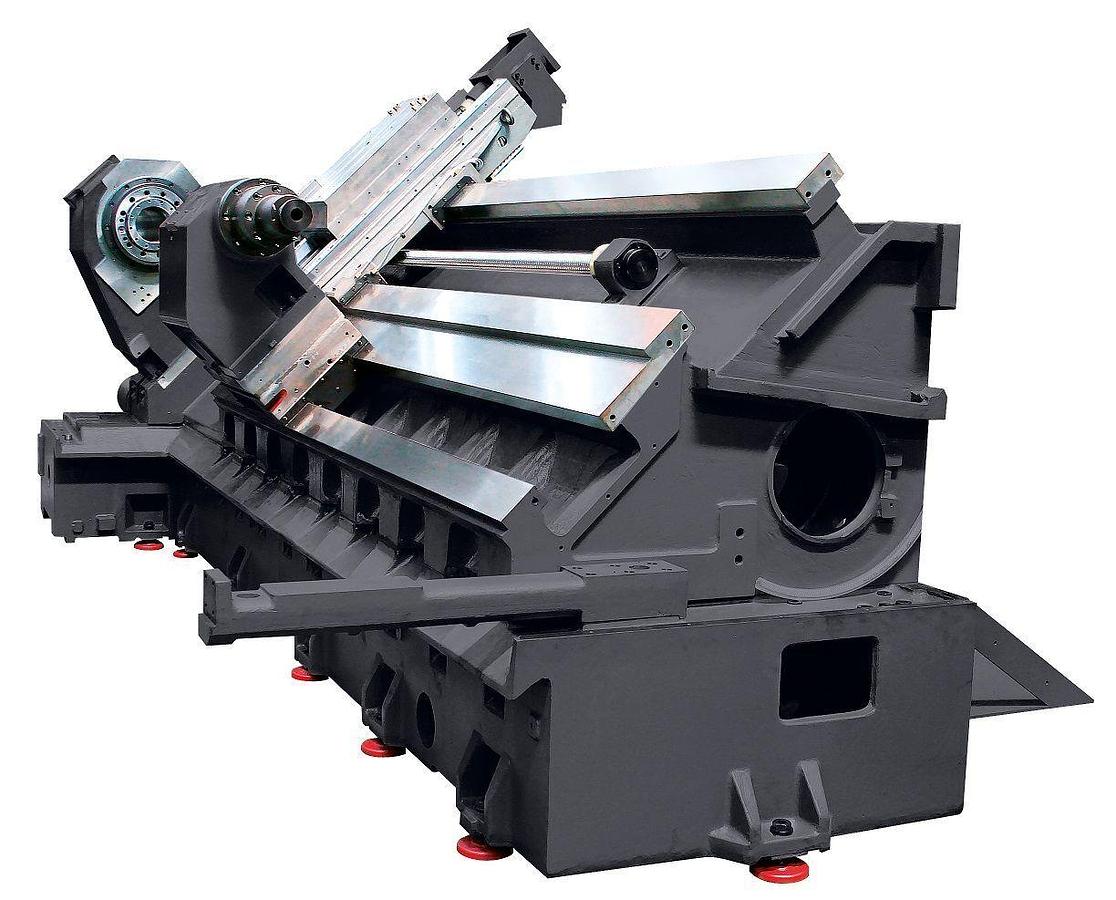

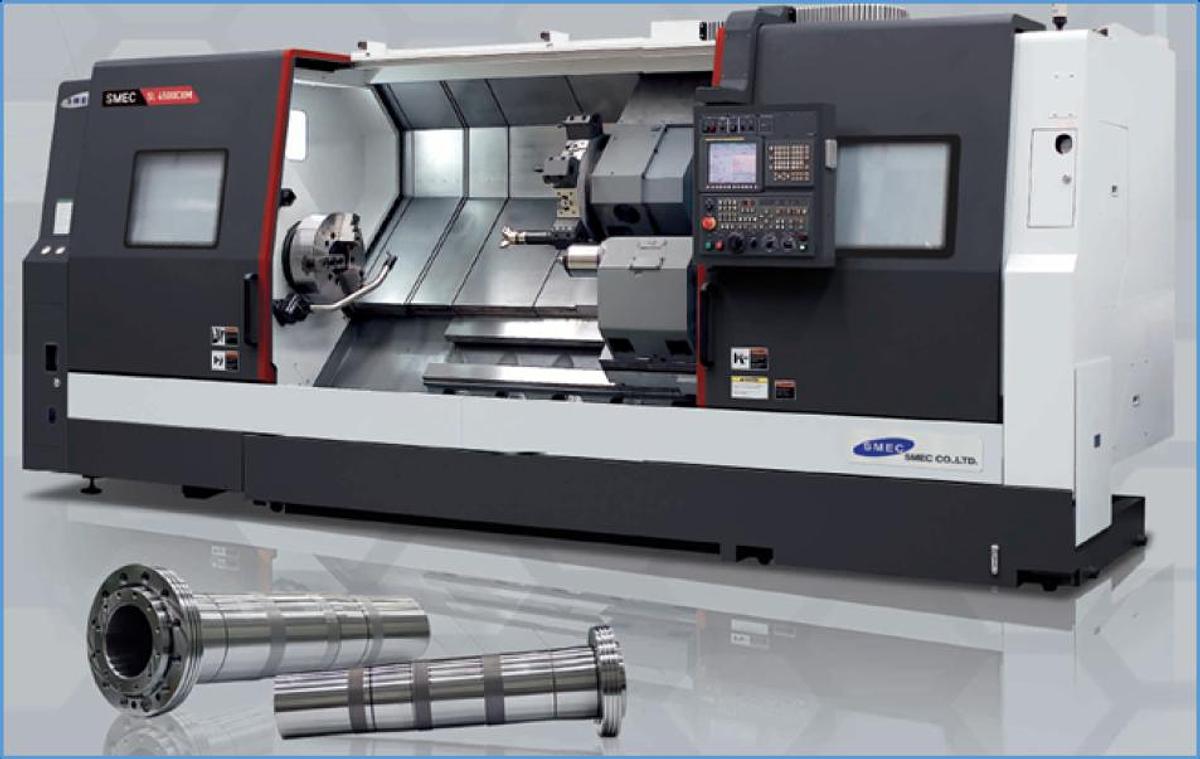

SMEC SL 4500CLY - 24" chuck / Y-Axis CNC Lathe

CAPACITY Swing over the bed 38.39" Swing over cross slide 32.68" Maximum turning diameter 24.41" Maximum milling diameter 28.03" Maximum turning length 115.35" MAIN SPINDLE Chuck size 24" Spindle nose A2-15 Main spindle motor (Max/Cont) 60 / 40 hp Spindle speed 1,200rpm Bore diameter 7.125" Draw tube ID 6.555" Spindle torque (Max.) 3,103.5 ft.-lbs. Spindle drive method 2 Speed gear box C axis minimum programmable angle 0.001 deg C axis position accuracy 0.0167 deg C axis repeatability �0.0056 deg BED, SLIDE & CARRIAGE X axis travel 13.78" Y axis travel 7.87" (� 3.94") Z axis travel 120.47" Rapid traverse (X/Y/Z) 787 ipm / 590 ipm / 394 ipm Guide ways (X/Y/Z) Box Way Bed Structure 45 deg slant bed Ballscrew diameter (X/Y/Z) 1.57" / 1.41" / 1.97" Axis feed thrust, Continuous (X/Y/Z) 3,814 lbs / 2,548 lbs / 4,500 lbs Repeatability (X /Y-Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Tools (BMT75) Turret indexing speed (1 station) 0.25 Seconds Curvic coupling 3 Piece hyd clamp/Servo index Coupling diameter / Clamp force 10.55" / 14,118 lbs. Tool size (turning and facing) 1-1/4" Wedge clamp Tool size (boring bar max dia) 2-1/2" Rotating tool rpm 4,000 rpm Rotating tool spindle motor 10 hp Rotating tool spindle torque 44 ft-lbs. Turret index repeatability �0.000197" TAILSTOCK Tailstock center (taper) MT #5 (Built In) Dead Center Quill diameter 6.30" Quill travel (by hydraulic) 5.91" Maximum thrust of quill 3,924 lbs. COOLANT SYSTEM Coolant pump motor (Max 290 psi) 3 hp (145 psi) Coolant tank capacity 158 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 6.34 gal. Hydraulic oil required (or equal) ISO VG32 Way lubrication tank capacity 0.79 gal. Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor Space Requirements (LxWxH) 289" x 91" x 105" Machine Weight 39,940 lbs. Power Consumption 63 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC Model Fanuc 0i-TF PLUS Display unit 15" TFT LCD Color Monitor Equipped With:SMEC A PACKAGE: Tool Presetter Oil Skimmer Programmable Tailstock (Body & Quill) Built-In Tailstock Bearings MT #5 Barfeeder Interface Manual Guide i Helical Interpolation Chip Conveyor - Side Discharge 145 PSI Coolant Pump 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light Hydraulic Steady Rest Preparation Kit - Includes Bracket, Hydraulic Connections, Fully Programmable along Z-Axis
