2024 SMEC SL 4500CL

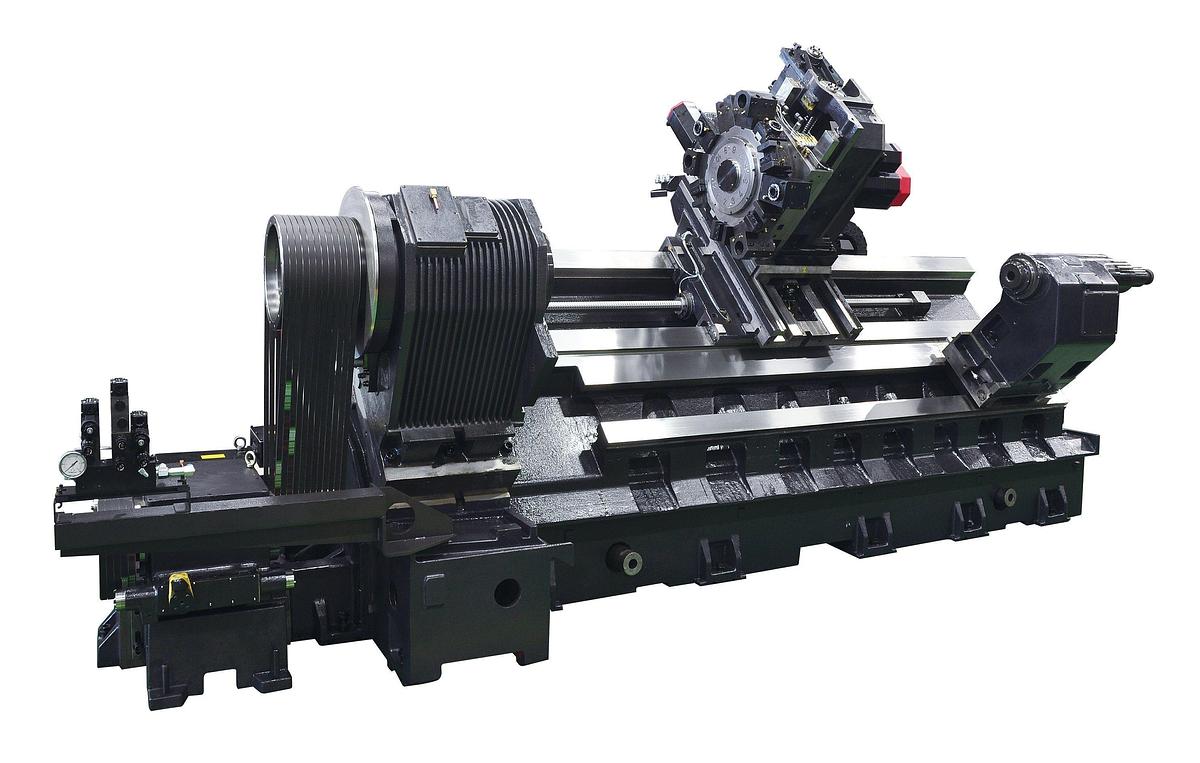

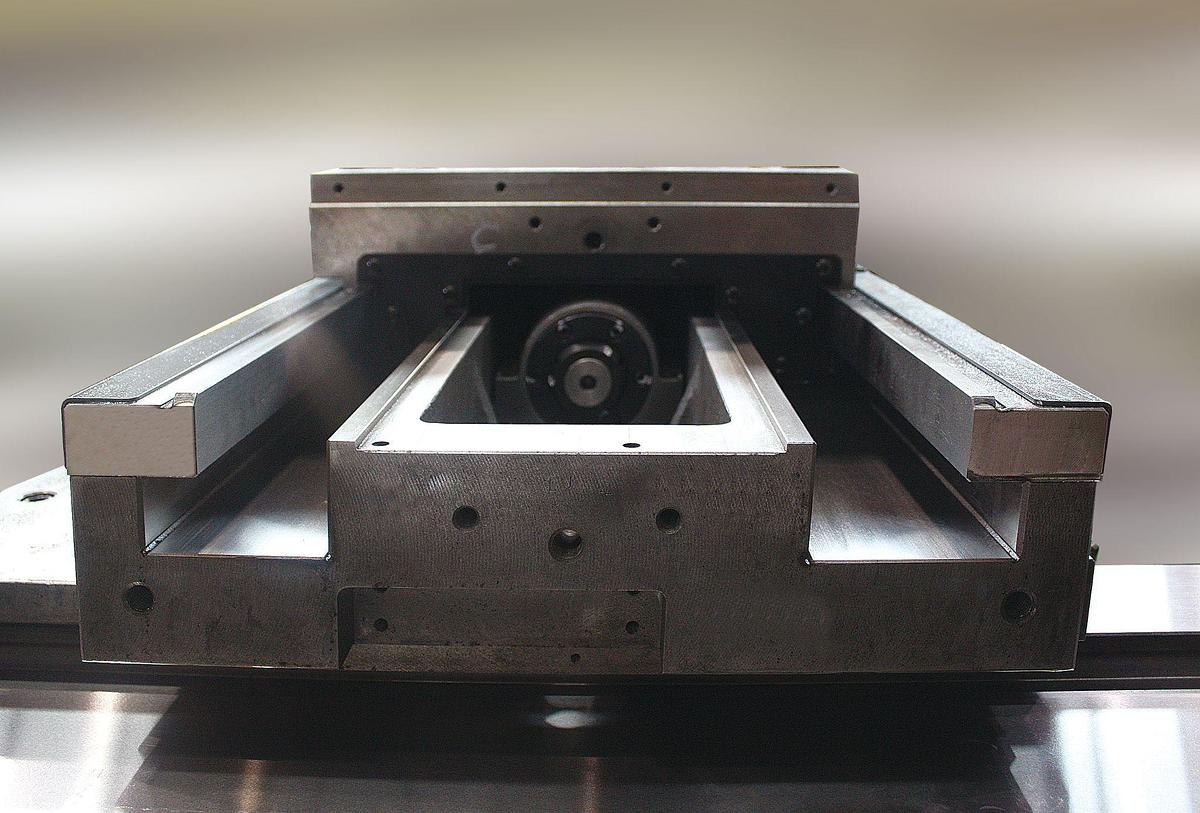

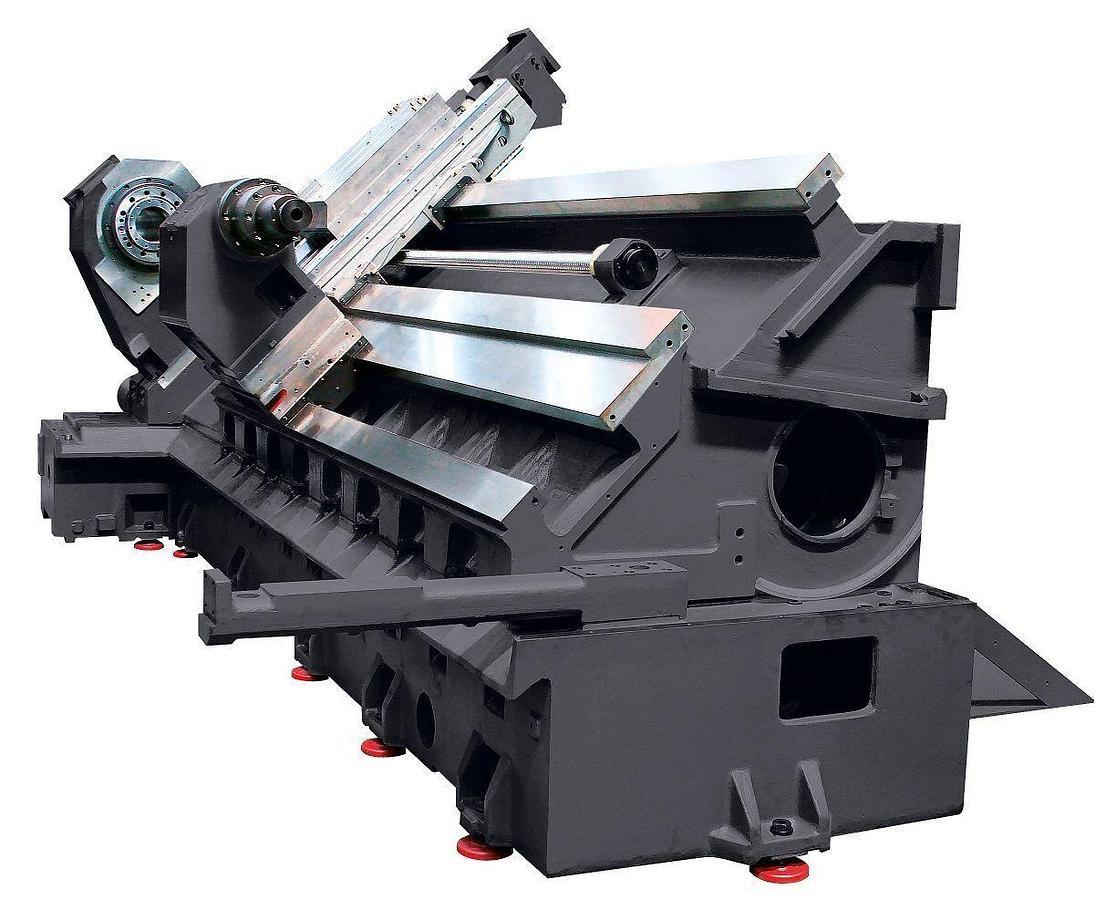

CAPACITY Swing over the bed 30.51" Swing over cross slide 24.90" Maximum turning diameter 27.17" Maximum turning length 120.28" MAIN SPINDLE Chuck size 24" Spindle nose A2-15 Main spindle motor (Max/Cont) 50 / 40 hp Spindle speed 1,200rpm Bore diameter 7.125" Draw tube ID 6.555" Spindle torque (Max.) 3,103.5 ft.-lbs. Spindle drive method 2 Speed gear box BED, SLIDE & CARRIAGE X axis travel 13.78" Z axis travel 123.23" Rapid traverse (X/Z) 787 ipm / 394 ipm Guide ways (X/Y/Z) Box Way Bed Structure 45 deg slant bed Ballscrew diameter (X/Z) 1.57" 1.97" Axis feed thrust, Continuous (X/Z) 10,550 lbs. / 13,771 Repeatability (X / Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Tools (BMT75) Turret indexing speed (1 station) 0.2 Seconds Curvic coupling 3 Piece hyd clamp/Servo index Coupling diameter / Clamp force 9.96" / 18,524 lbs. Tool size (turning and facing) 1-1/4" Wedge clamp Tool size (boring bar max dia) 2-1/2" TAILSTOCK Tailstock center (taper) MT #5 (Built In) Dead Center Quill diameter 6.30" Quill travel (by hydraulic) 5.91" Maximum thrust of quill 7,062 lbs. COOLANT SYSTEM Coolant pump motor (Max 290 psi) 3 hp (145 psi) Coolant tank capacity 158 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 6.34 gal. Hydraulic oil required (or equal) ISO VG32 Way lubrication tank capacity 0.79 gal. Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor Space Requirements (LxWxH) 288" x 91" x 92" Machine Weight 36,817 lbs. Power Consumption 60 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC Model Fanuc 0i-TF PLUS Display unit 15" TFT LCD Color Monitor Equipped With:SMEC OPTION PACKAGE: Tool Presetter Oil Skimmer Programmable Tailstock (Body & Quill) Built-in Tailstock Bearings MT #5 Barfeeder Interface Manual Guide i Chip Conveyor - Side Discharge 145 PSI Coolant Pump* 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light Hydraulic Steady Rest Preparation Kit: Includes Bracket, Hydraulic Connections, Fully Programmable along Z-Axis
