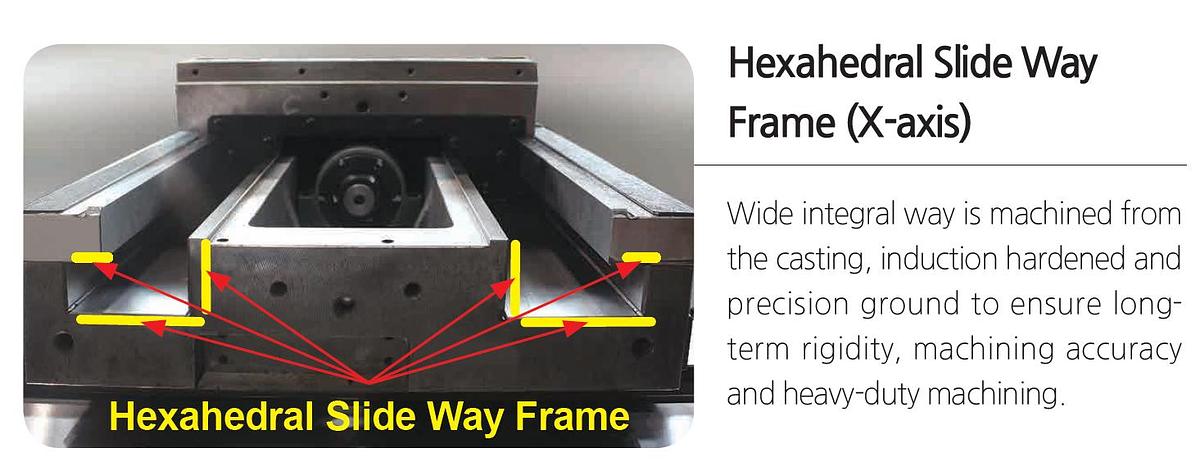

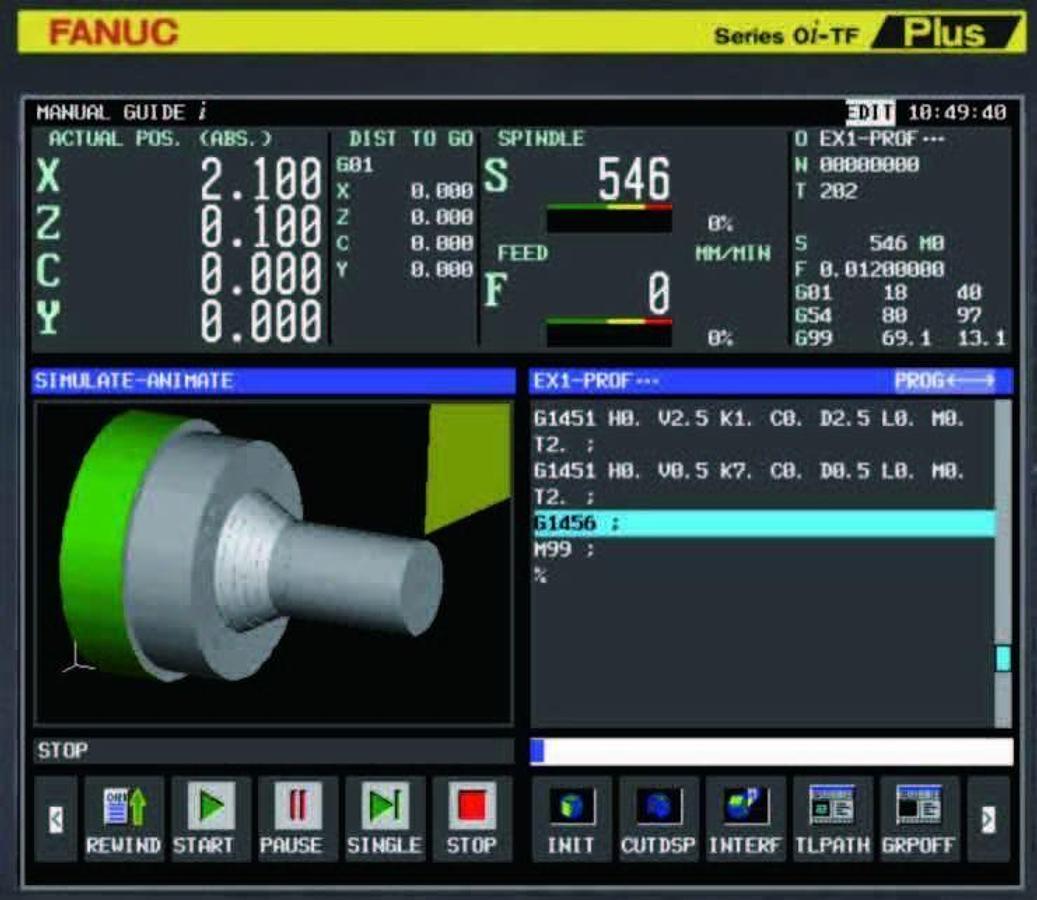

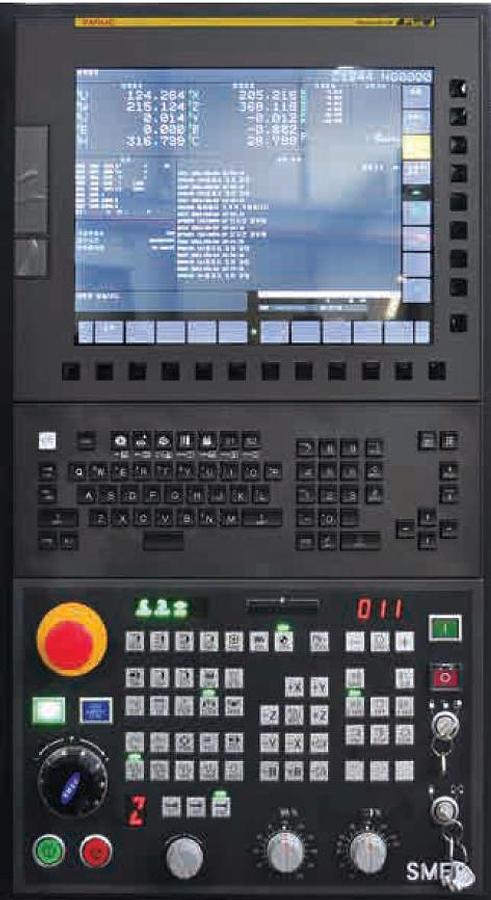

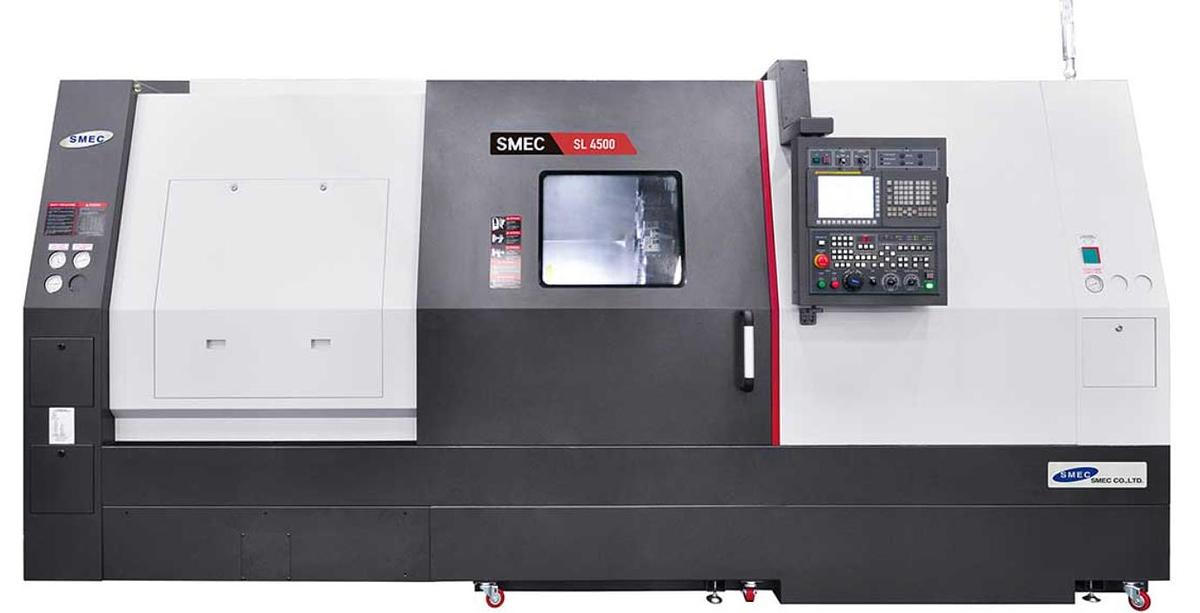

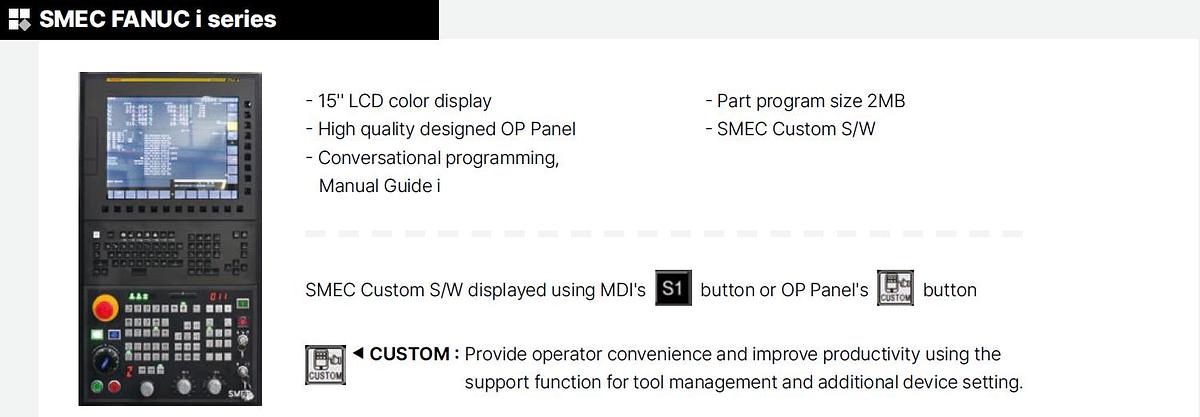

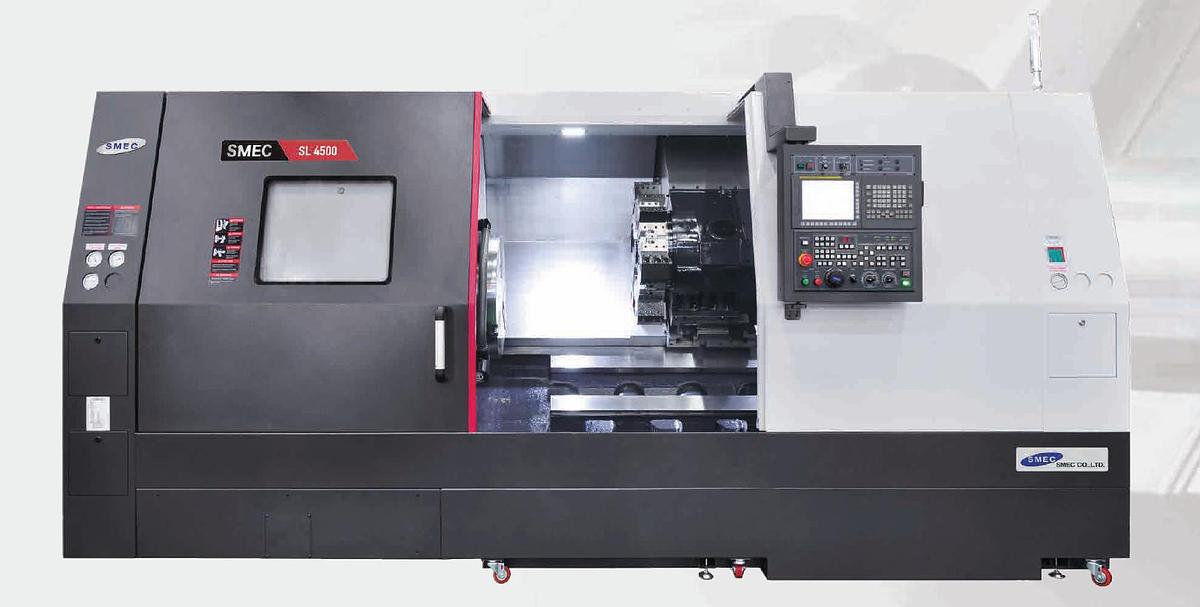

SMEC SL 4500A (18" Chuck CNC Lathe)

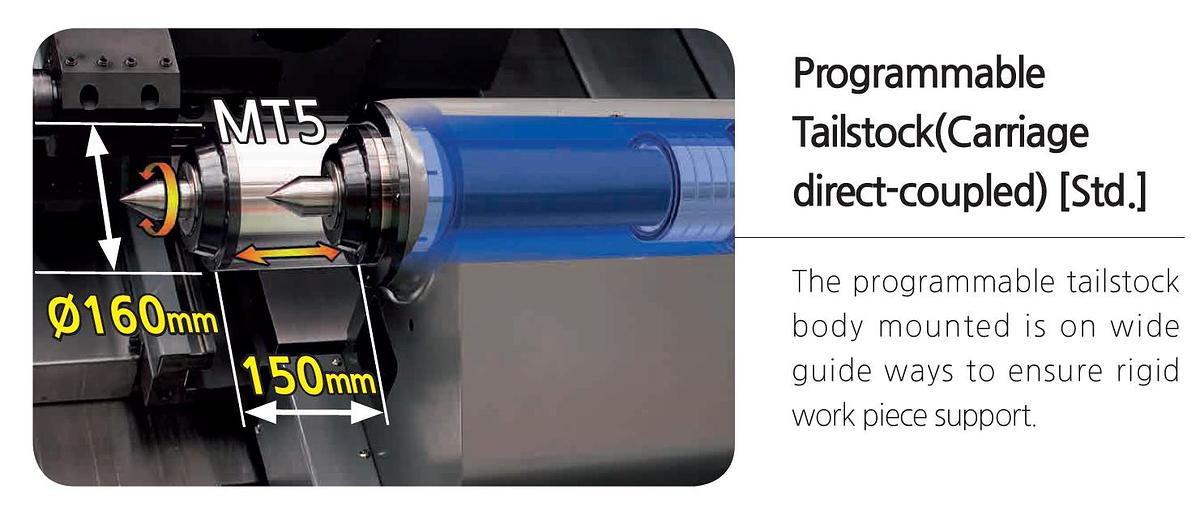

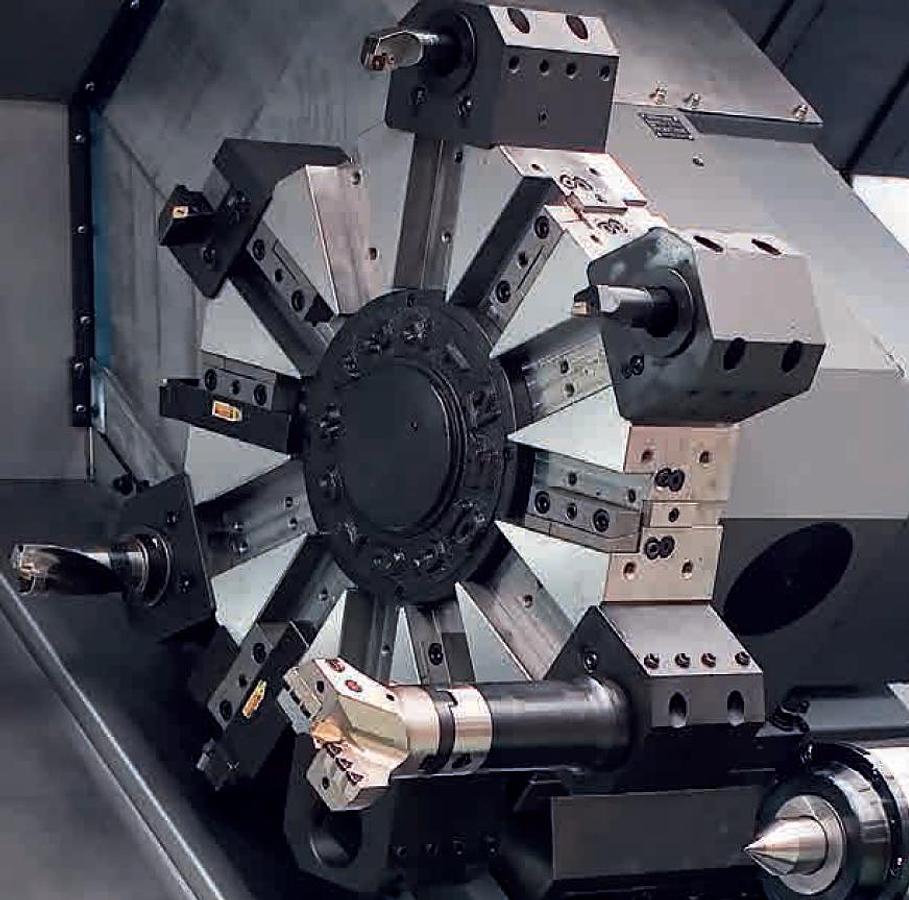

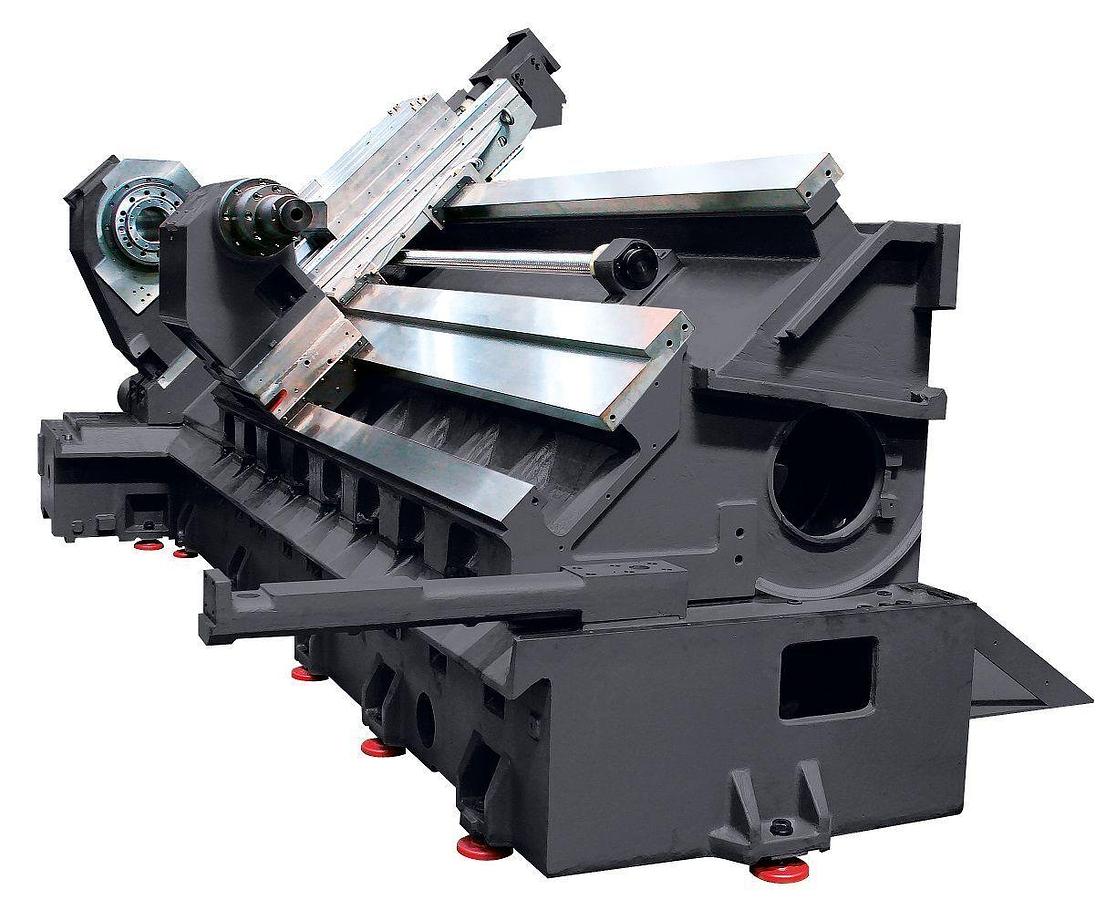

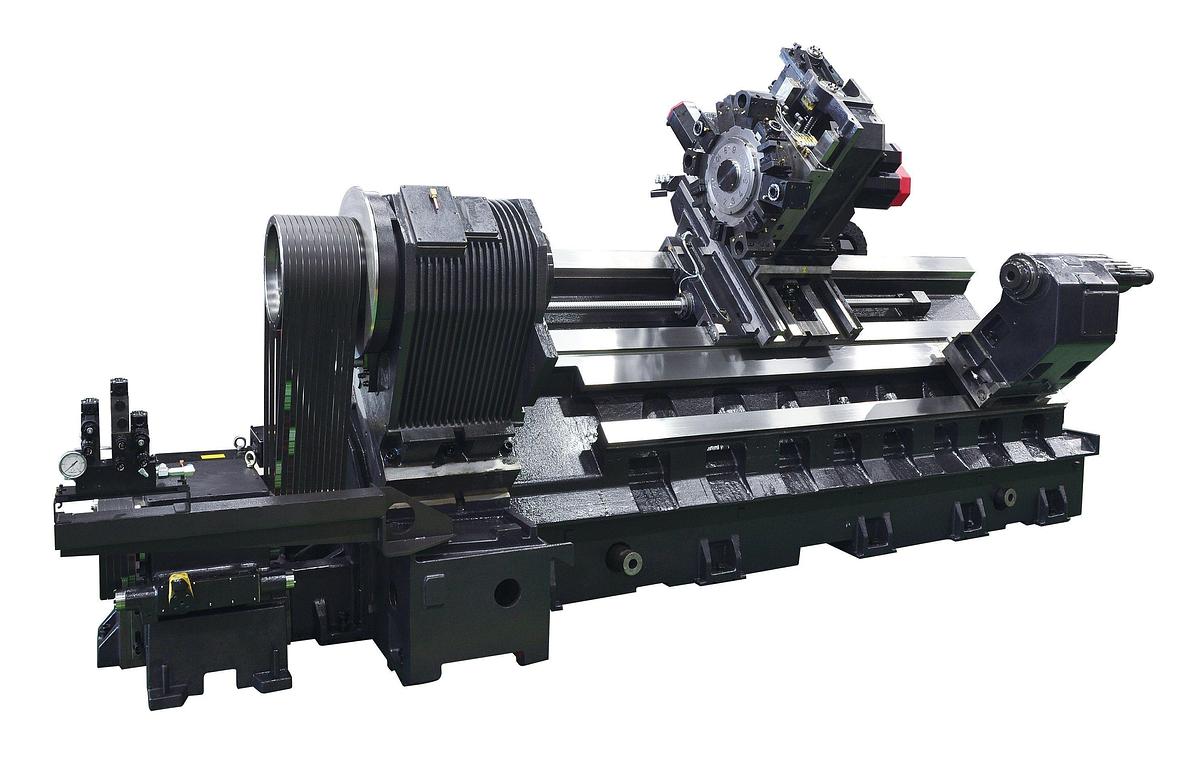

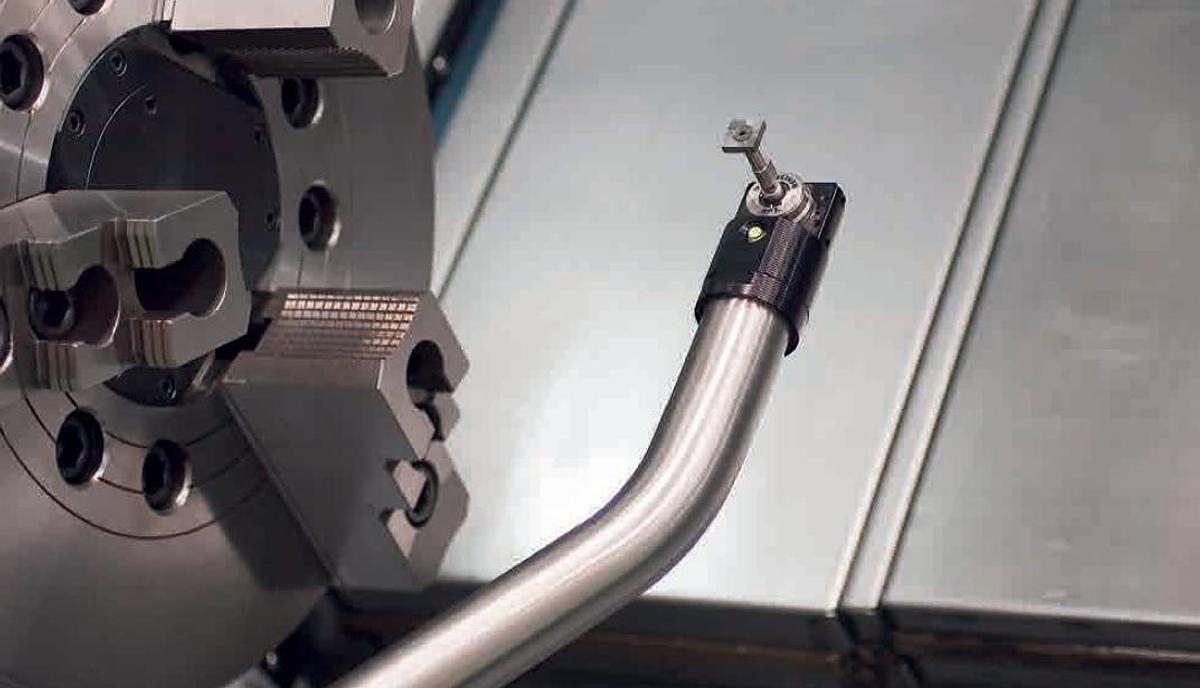

MACHINE SPECIFICATIONS CAPACITY Swing over the bed 30.51" Swing over the cross slide 24.80" Maximum turning diameter 27.20" Maximum turning length 49.21" SPINDLE Chuck size 18" Spindle nose A2-11 Main spindle motor (Duty / Cont.) 60 / 40 hp Spindle speed 1,800 rpm Bore diameter 5.20" Draw tube ID 4.63" Spindle torque (Max) 2,341.1 ft.-lbs. Spindle drive method 2 Speed gear BED, SLIDE & CARRIAGE X axis travel 13.78" Z axis travel 52.16" Rapid traverse ipm (X / Z) 787 / 709 Guide ways (X / Z) Box Way Bed structure 45-deg Slant bed Ballscrew diameter (X / Z) 1.57" / 1.97" Axis feed thrust, Continuous (X/Z) 4,767 lbs. / 4,831 lbs. Repeatability (X / Z) �0.00008" / �0.00012" TURRET Number of tool stations 12 Tools (12) OD (12) ID Turret indexing speed (1 station) 0.2 seconds Curvic coupling 3 Piece hyd clamp / Servo index Curvic coupling dia / Clamp force 9.96" / 18,524 lbs. Tool size (turning and facing) 1.25" �� Wedge clamp Tool size (boring bar maximum dia) 2.5" Turret index repeatability �0.00020" TAILSTOCK Tailstock center (taper) MT #5 (built-in) Quill diameter 6.30" Quill travel (by hydraulic) 5.91" Maximum thrust of quill 7,062 lbs. COOLANT SYSTEM Coolant pump motor 3 hp (145 psi) Coolant tank capacity 92 gal. System type Removable / Independent HYDRAULIC / LUBRICATION Hydraulic tank capacity 6.34 gal. Hydraulic oil required (or =) ISO VG32 Way lubrication tank capacity 0.79 gal. Way lubrication oil required (or =) ISO VG68 MACHINE SIZE Floor space requirements (LxWxH) 233" x 86" x 91" Machine weight 23,046 lbs. Power consumption 59 kVA Voltage 220V�10%, 60 Hz, 3 phase CNC CNC model Fanuc 0i-TF PLUS Display unit 15" TFT LCD Color Monitor SL 4500A 18" / 1250 SHIPPING DIMENSIONS (L x W x H, Weight) Crate #1 (Machine) 201 x 91 x 101; 23,180 lbs. Crate #2 (Chip Conveyor) 170 x 34 x 78; 2,205 lbs. Equipped With:SMEC INCLUDES OPTIONBS: Tool Presetter Oil Skimmer Programmable Tailstock (Body & Quill) Built-in Tailstock Bearings MT #5 Barfeeder Interface Manual Guide i Chip Conveyor - Side Discharge 145 PSI Coolant Pump 1 Set of Hard Jaws 3 Sets of Soft Jaws 3 Color Tower Light
