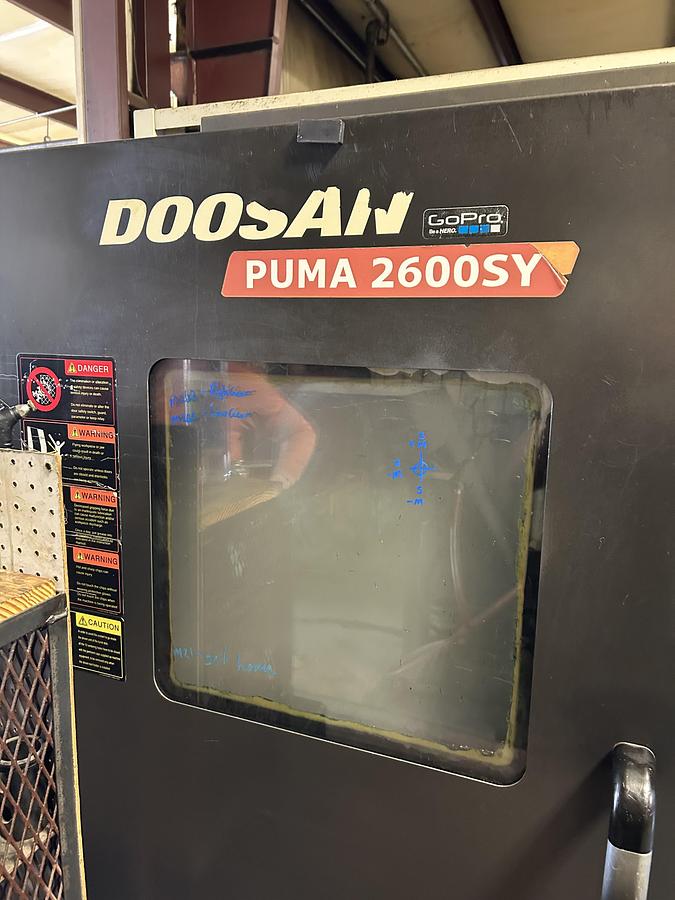

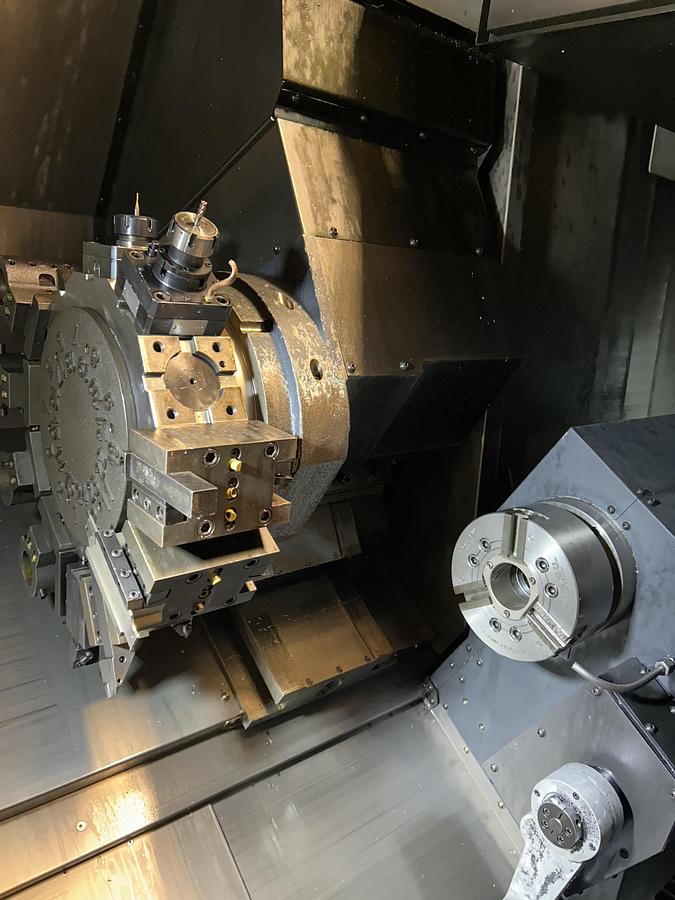

2011 DOOSAN PUMA 2600SY CNC Turning Center with Bar Feeder Sub Spindle Y-Axis Low Hours
2011 DOOSAN PUMA 2600SY CNC Turning Center with Bar Feeder Sub Spindle Y-Axis Low Hours
Description

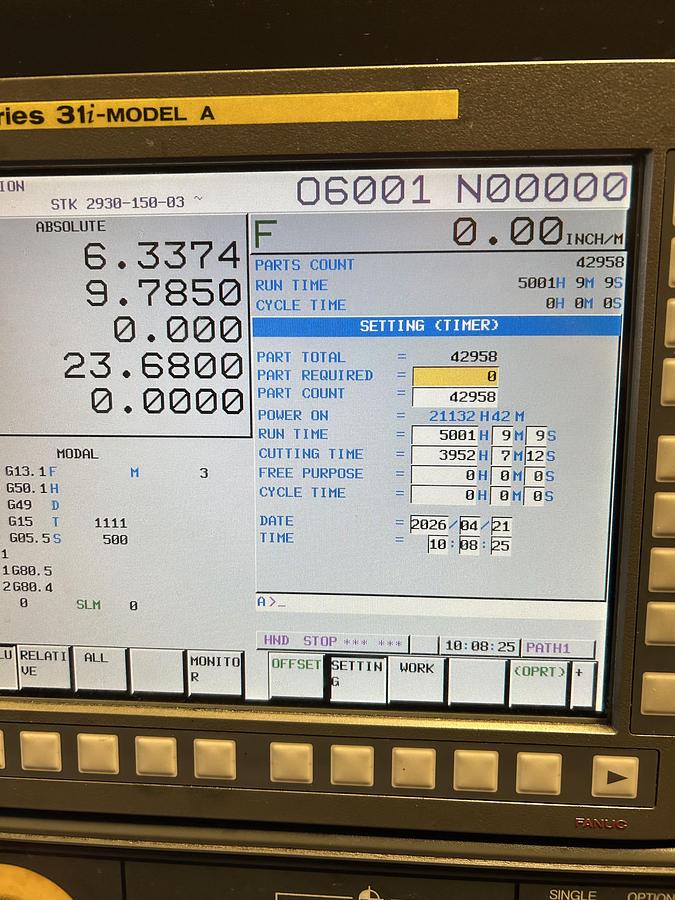

Excellent Condition Low Hours only 3,952 Cutting Hours

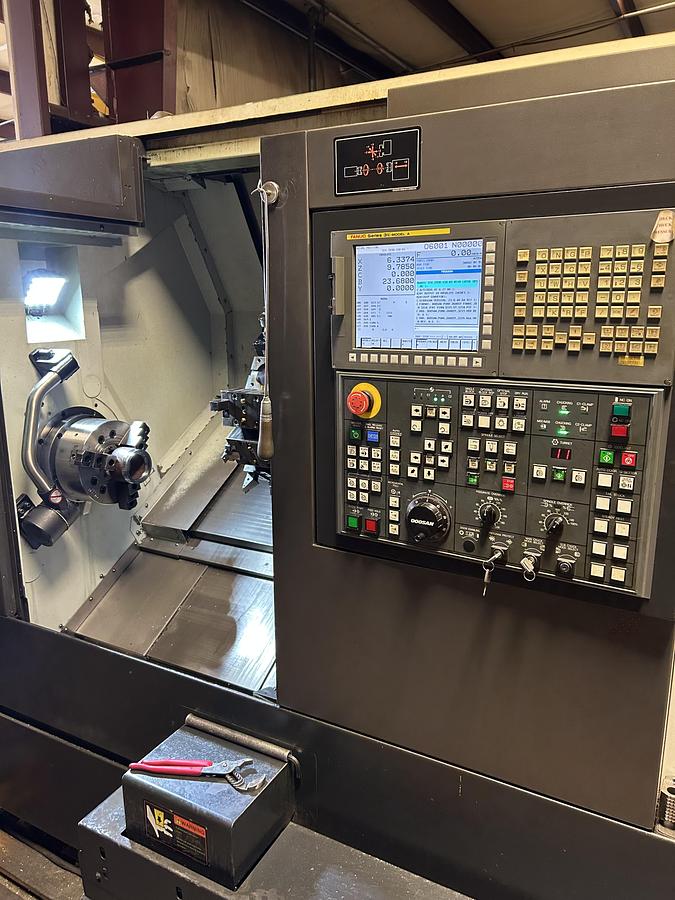

Fanuc I series Plus Control
4,000 rpm Main Spindle 10" Chuck Size

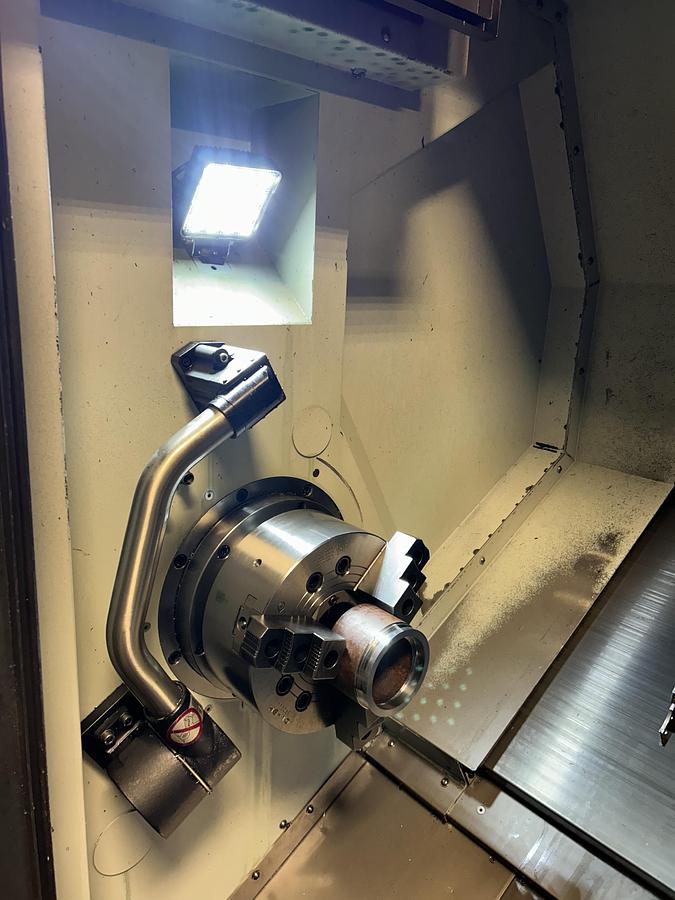

6,000 rpm Sub Spindle 8" Chuck Size
5,000 rpm Live Tooling Speed

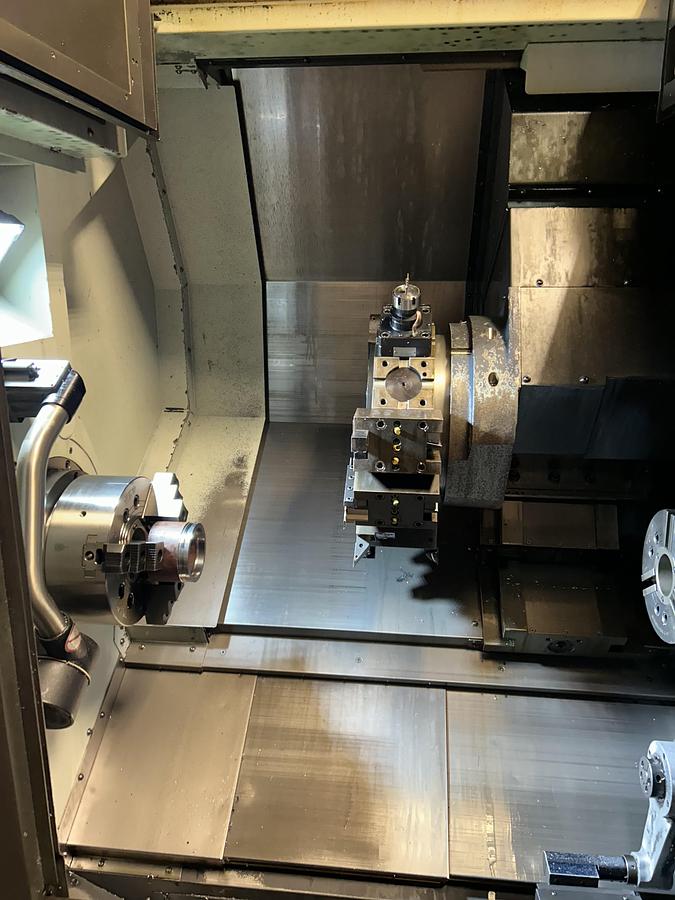

24 Station BMT-65 Live Tooling Turret
10.2" X-Axis Travels
4.1 ± 2.1" Y-Axis Travels
32.7" Z-Axis Travels
32.7" B-Axis Travels
14.8" Max Turning Diameter
29.9" Max Turning Length
3.2" Through Hole
460 PSI High Pressure Coolant
Automatic Tool Pre-Setter
Parts Catcher & Parts Conveyor
Turbo LNS Chip Conveyor

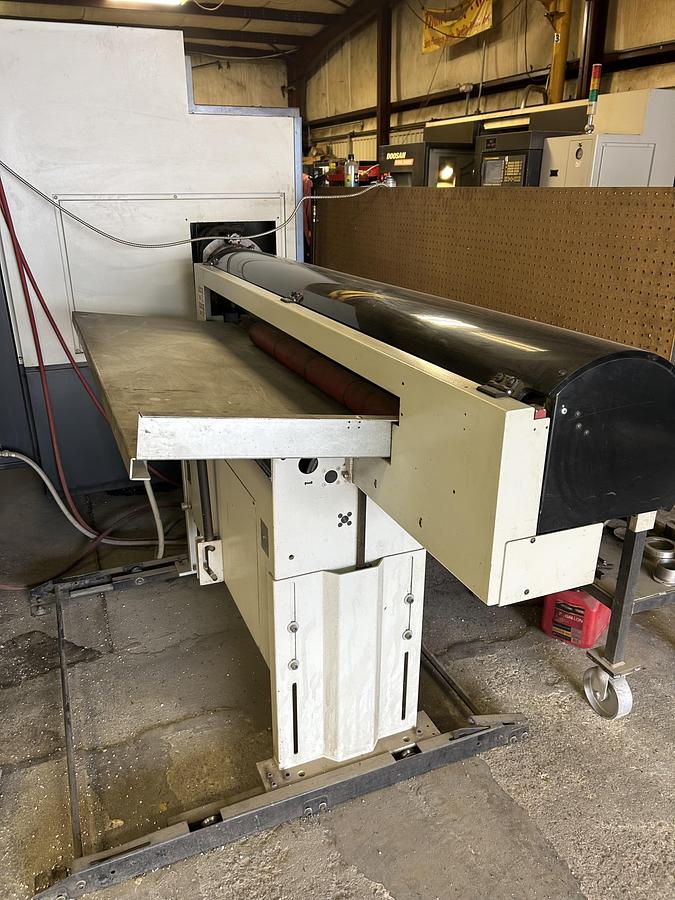

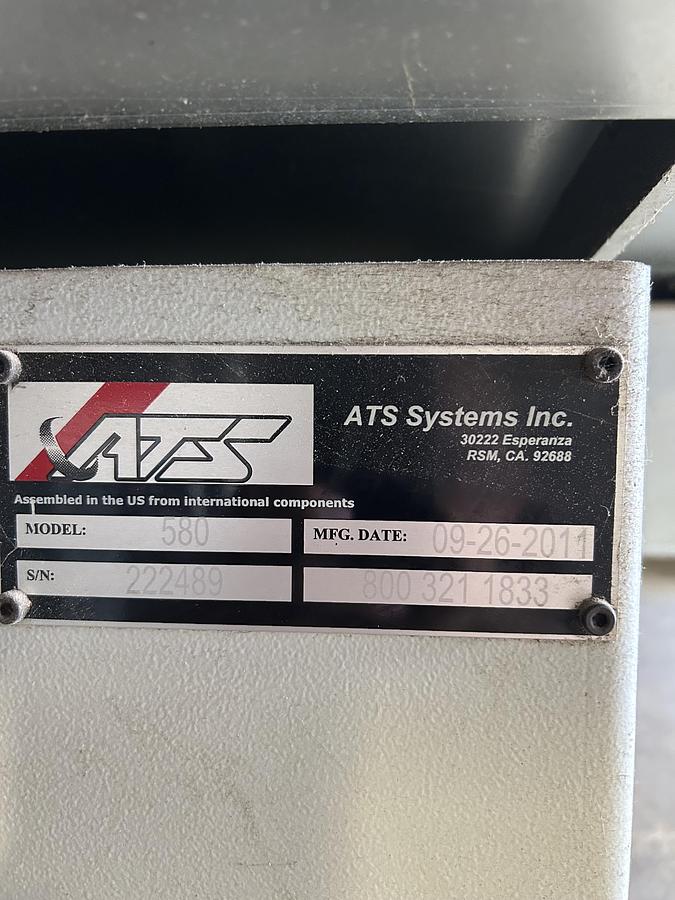

ATS 580 Bar Feeder
1181 ipm Rapid Traverse X-axis
394 ipm Rapid Traverse Y-axis
1181 ipm Rapid Traverse Z-axis
200 ipm Rapid Traverse C-axis
Box Ways
Coolant Tank and Pump
Specifications
| Manufacturer | DOOSAN |
| Model | PUMA 2600SY CNC Turning Center with Bar Feeder Sub Spindle Y-Axis Low Hours |
| Year | 2011 |
| Condition | Used |

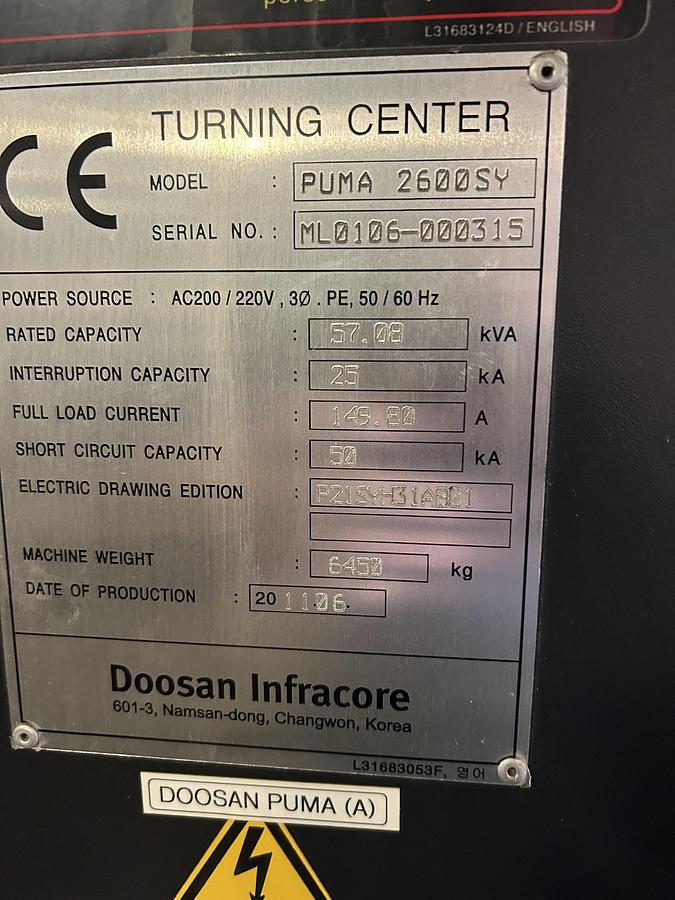

| Serial Number | ML0106-000315 |
| Stock Number | 1174829 |
