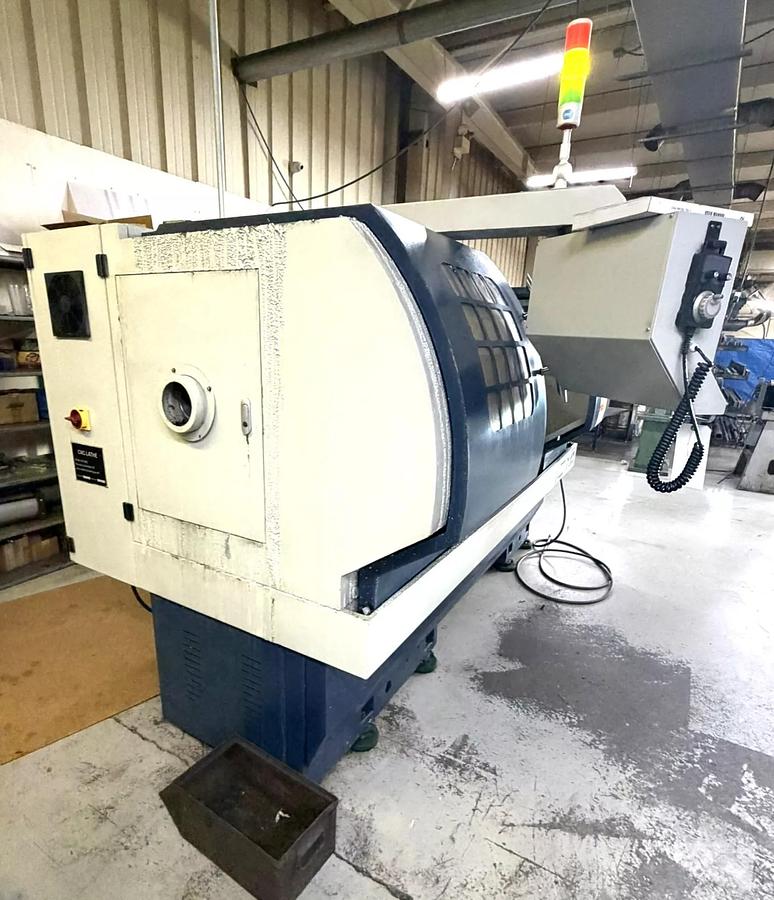

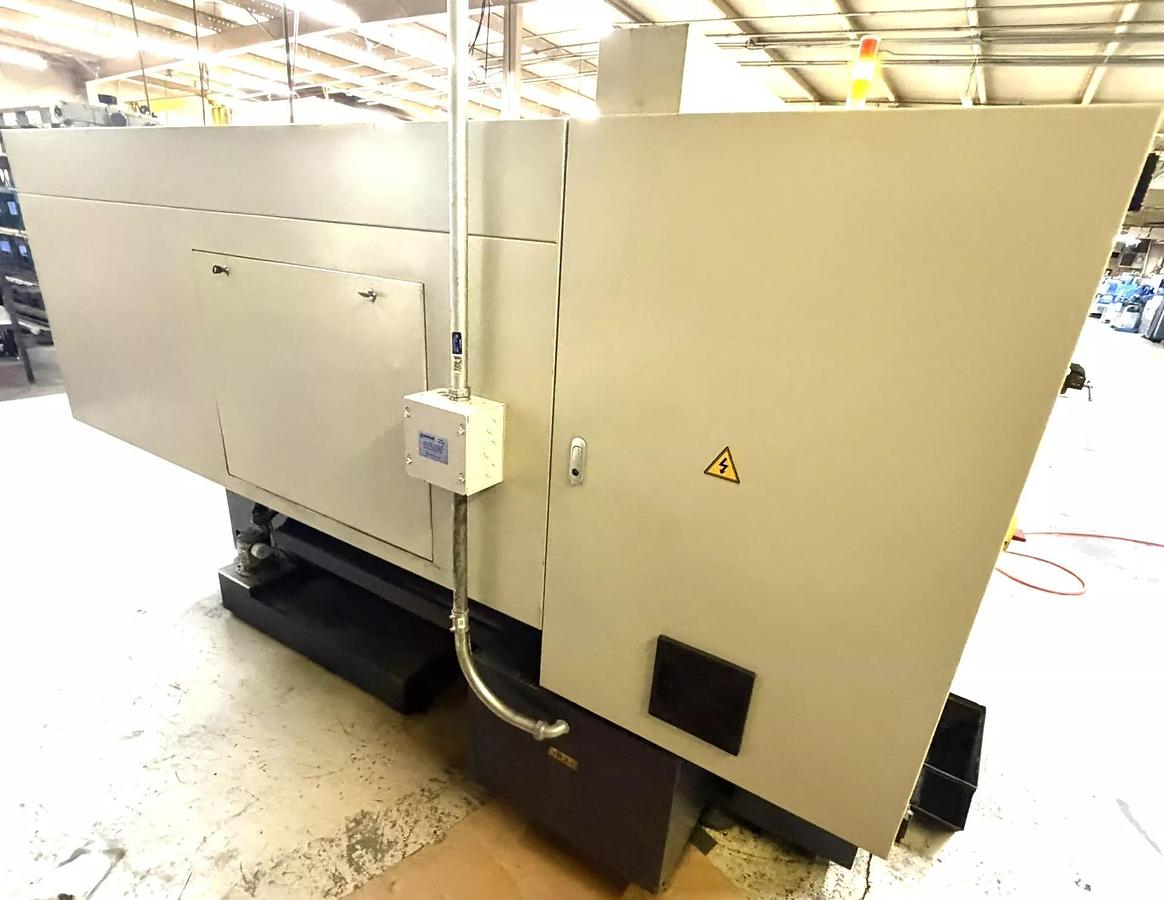

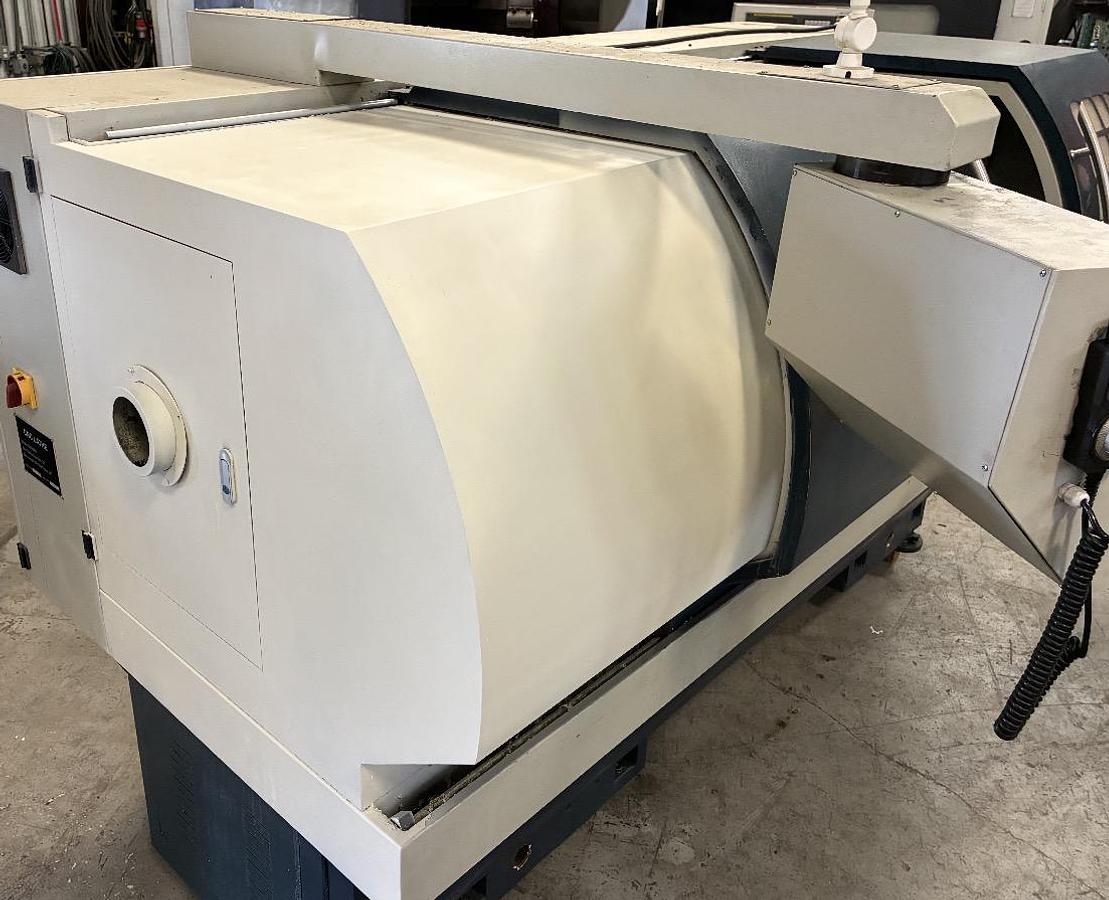

2017 BOLTON TOOLS CBT-260 CNC Lathe

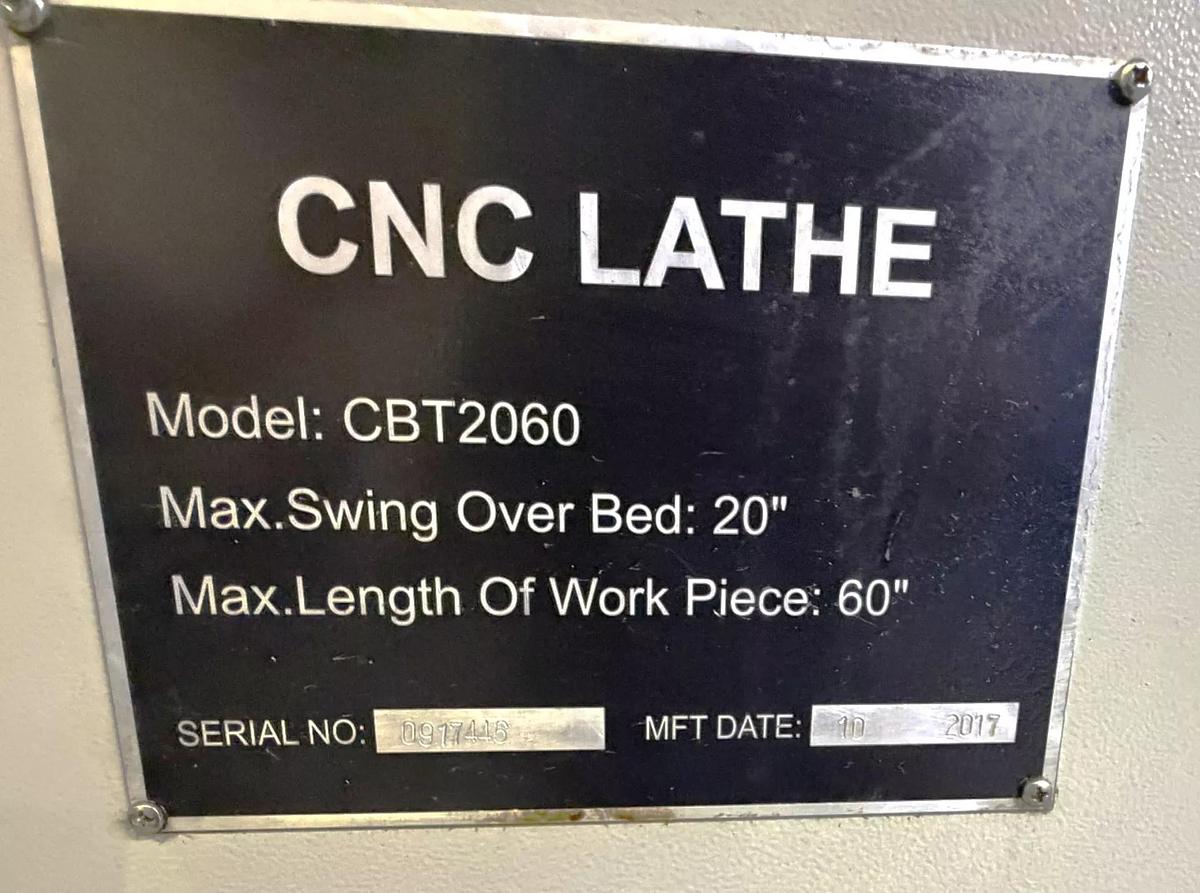

2017 Bolton Tools CBT-2060 CNC Lathe, SN 0917446

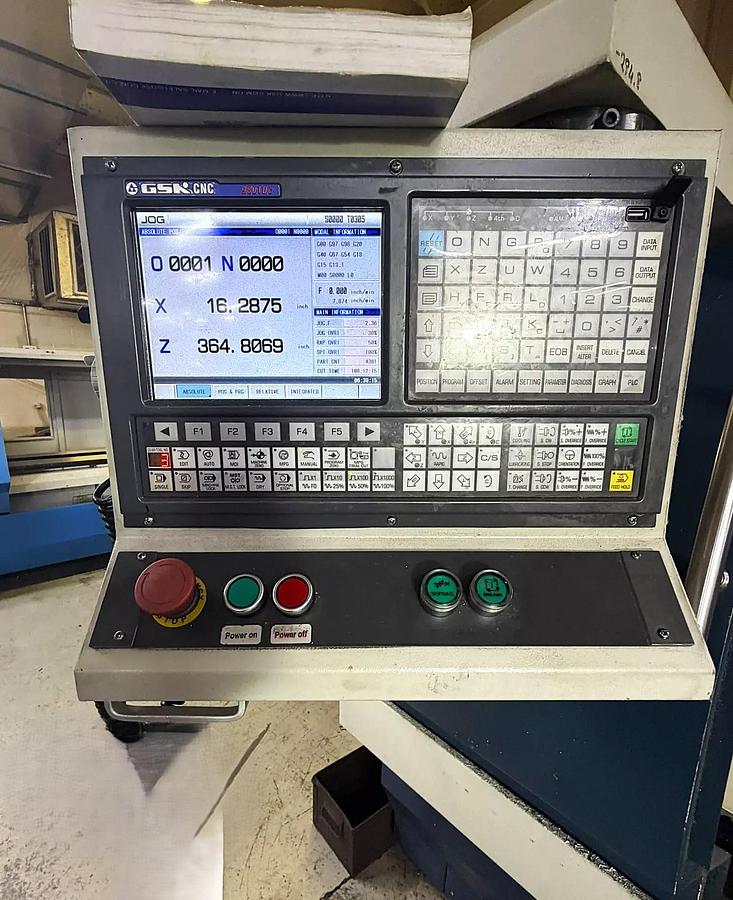

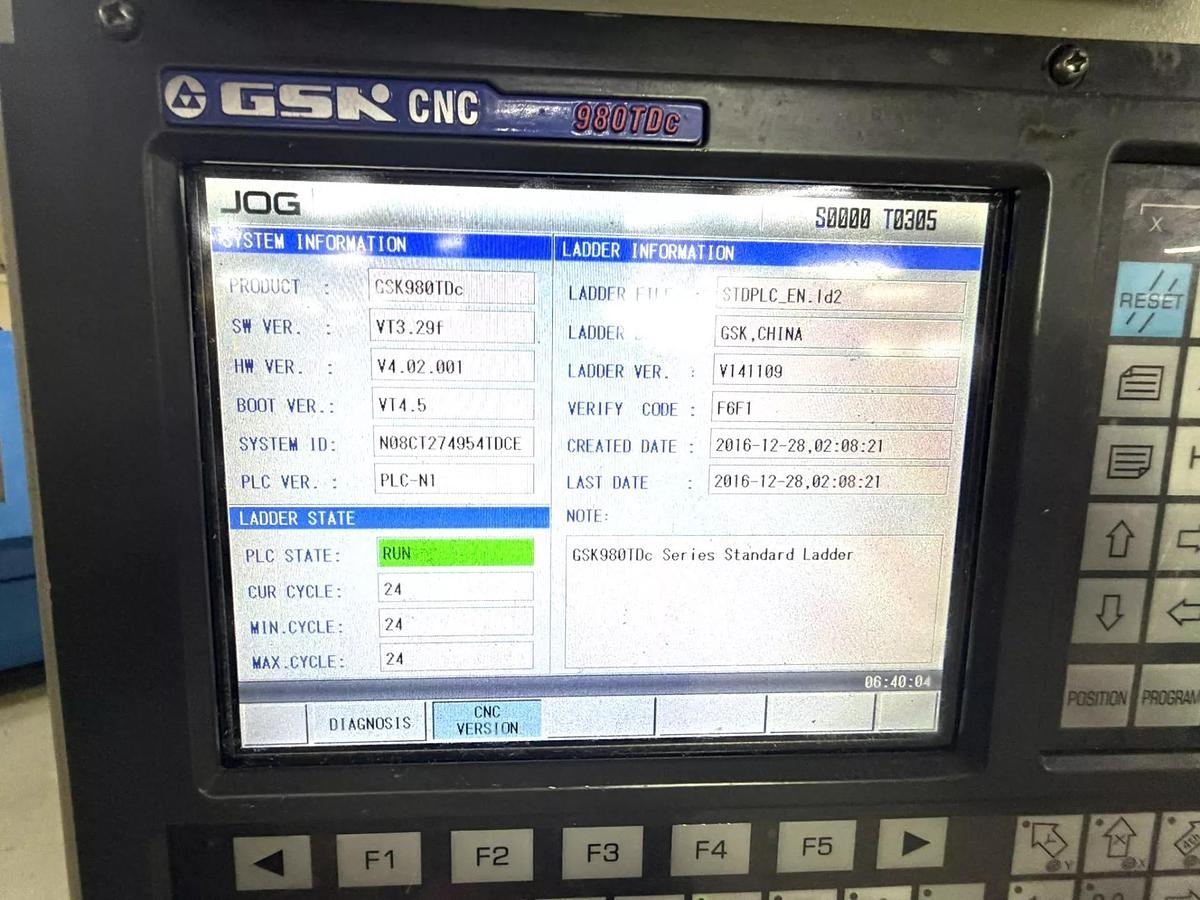

GSK CNC980TDC Control

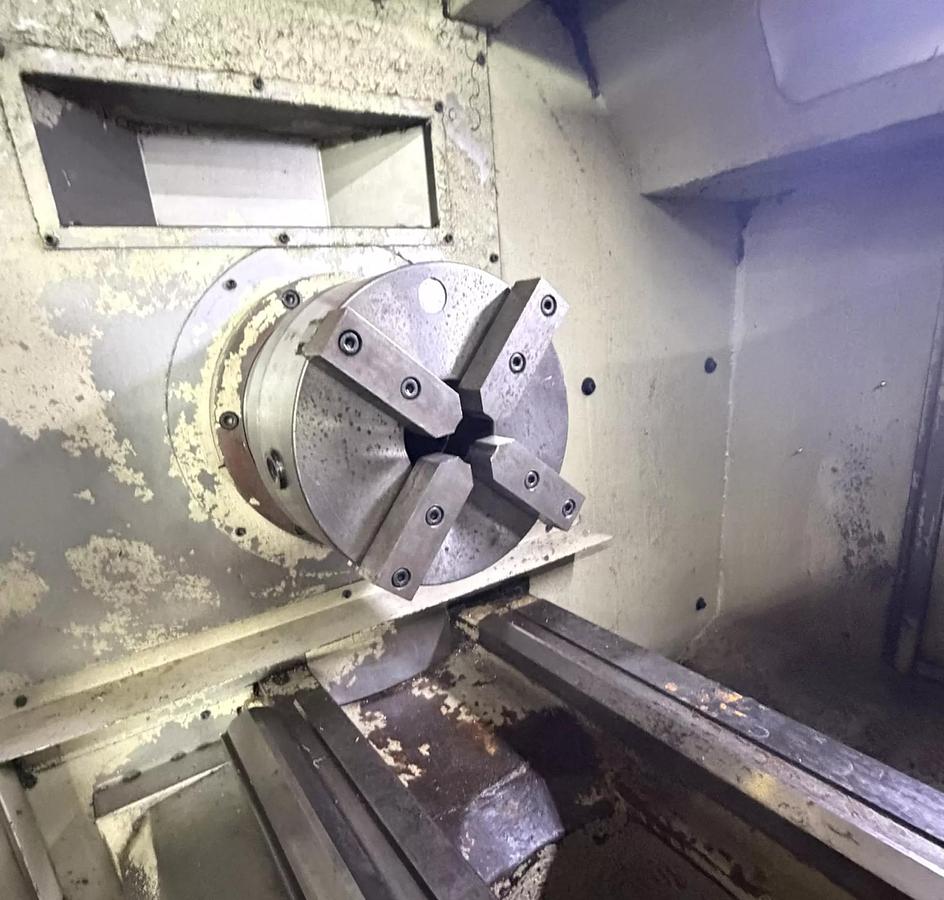

10" Chuck

Swing over bed: 20"

Max. turning dia. of workpiece: 10 5/8"

Max. length of workpiece: 59 1/16"

Spindle speed: 1800 RPM

Spindle bore: 3 1/4"

Spindle nose: D1-8

Max. travel for X axis: 13"

Max. travel for Z axis: 59 1/16"

Max. swing over cross slide: 10 5/8"

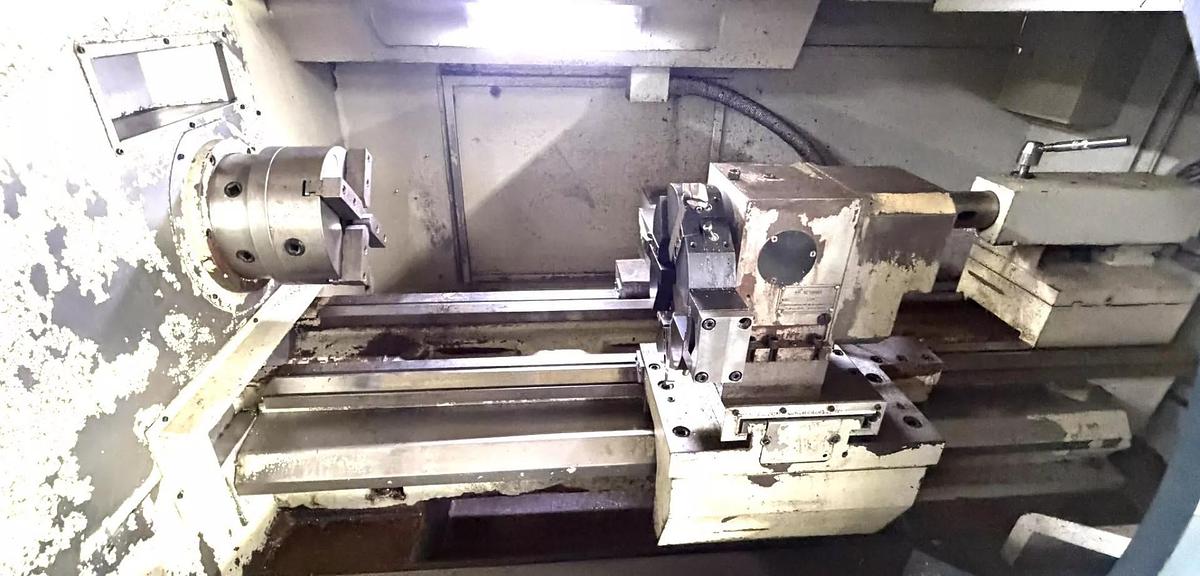

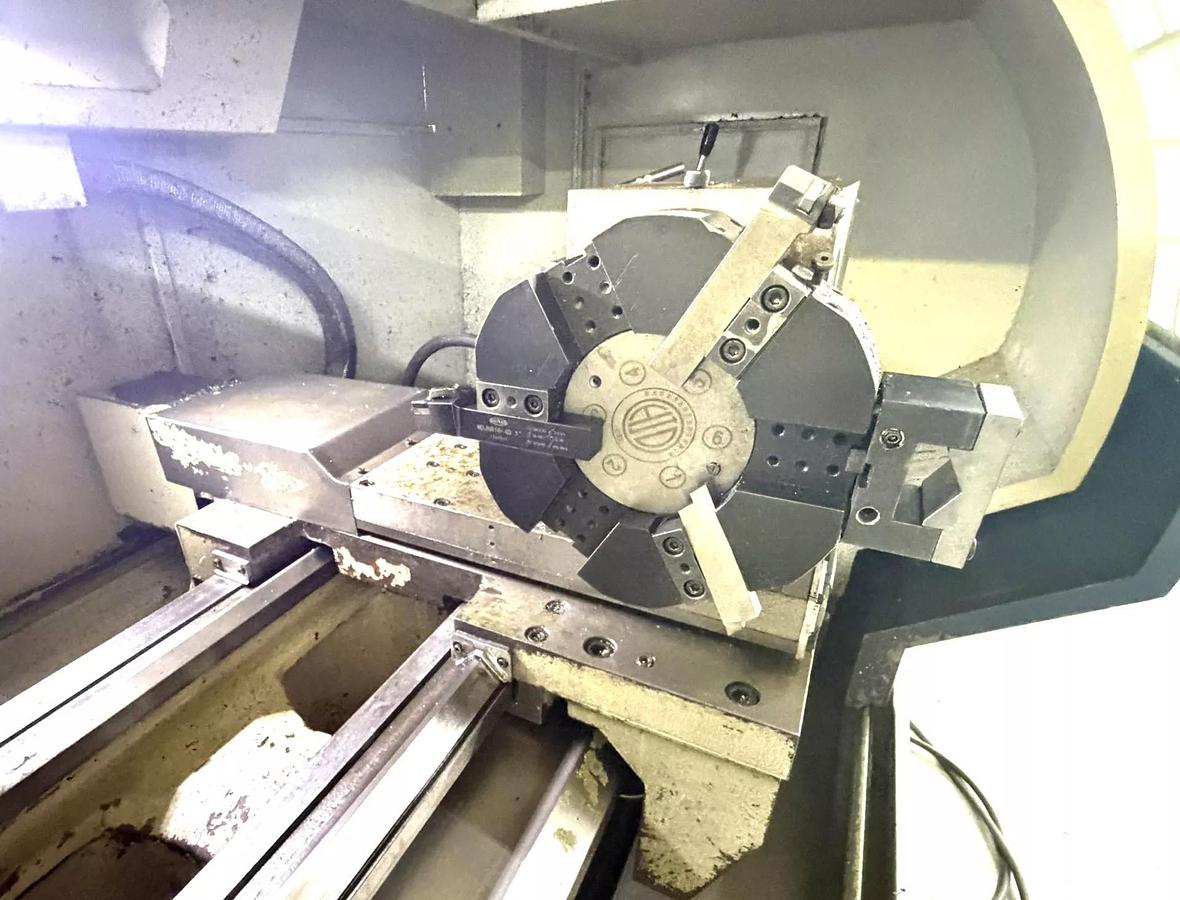

6 Station Automatic Turret

Width of Bed: 15 3/4"

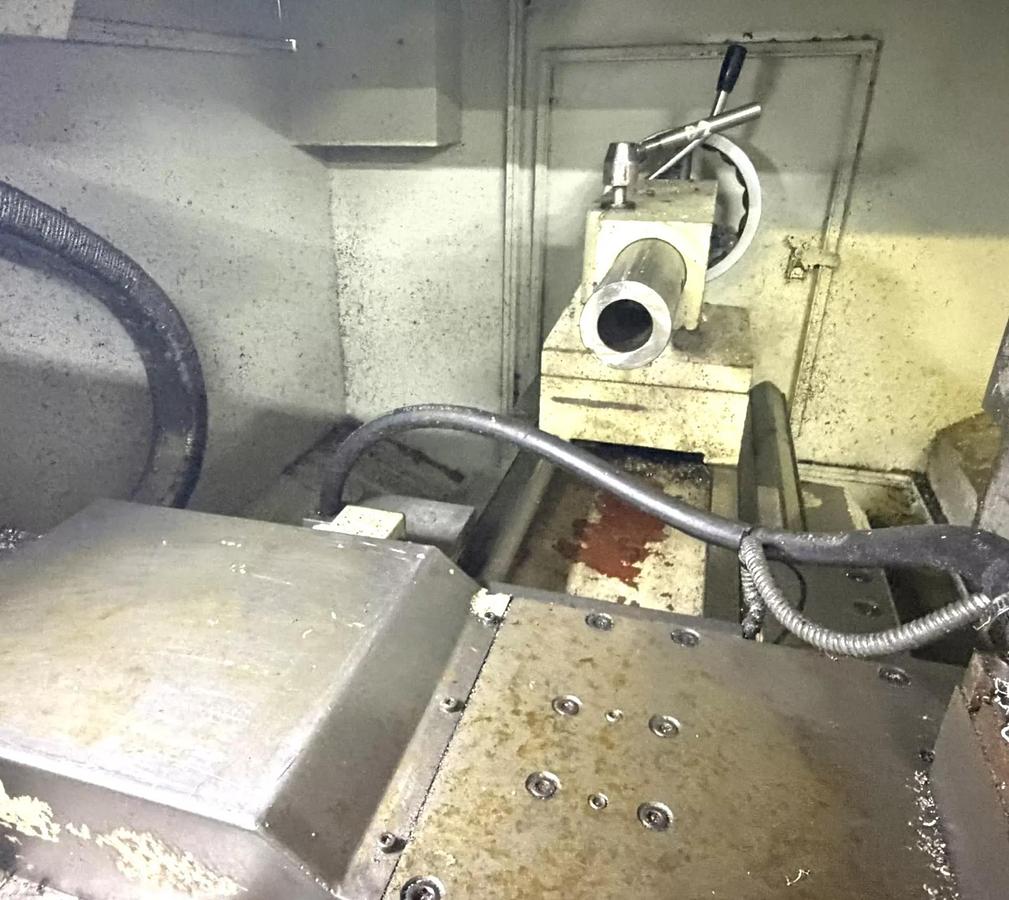

Diameter tailstock quill: 3"

Max. travel of tailstock quill (manual): 6" M.T. #5

Motor: 14 1/2 HP

Electric: 220V / 440V, 3 phase

Coolant pump: 1/8 HP

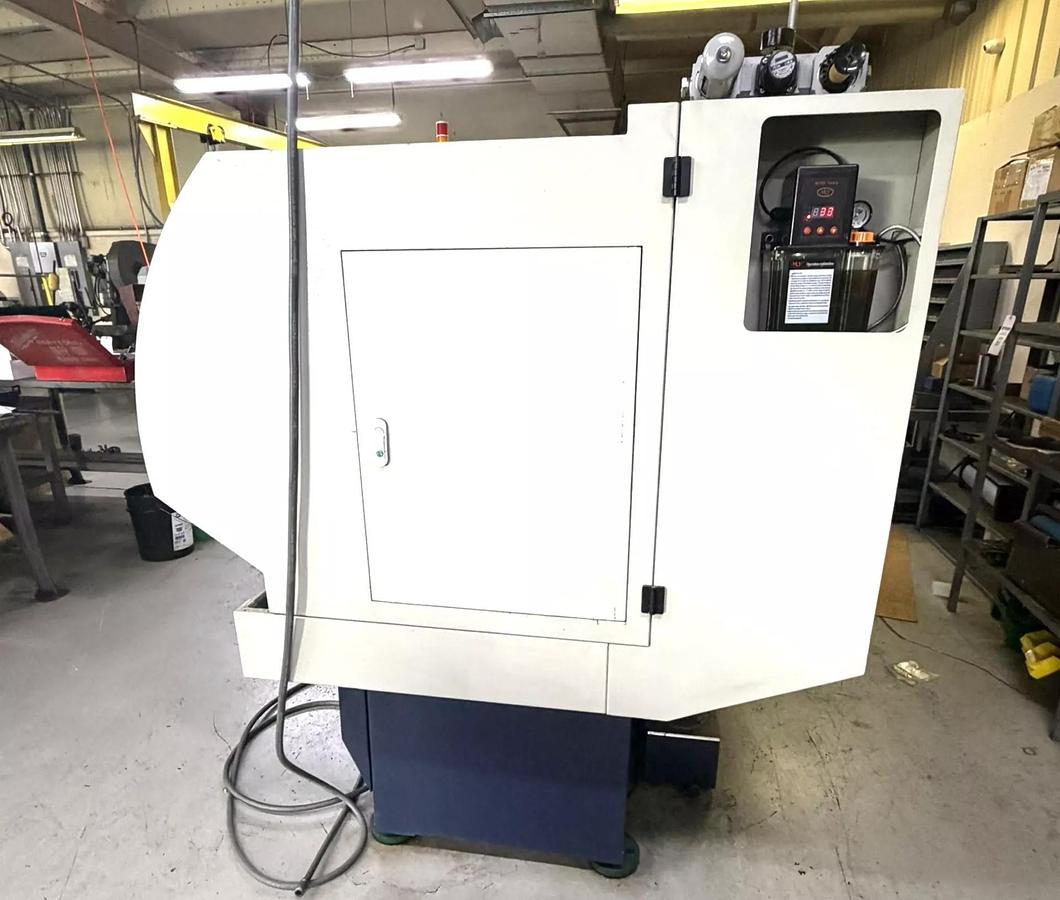

Auto lubrication: 1/16 HP
