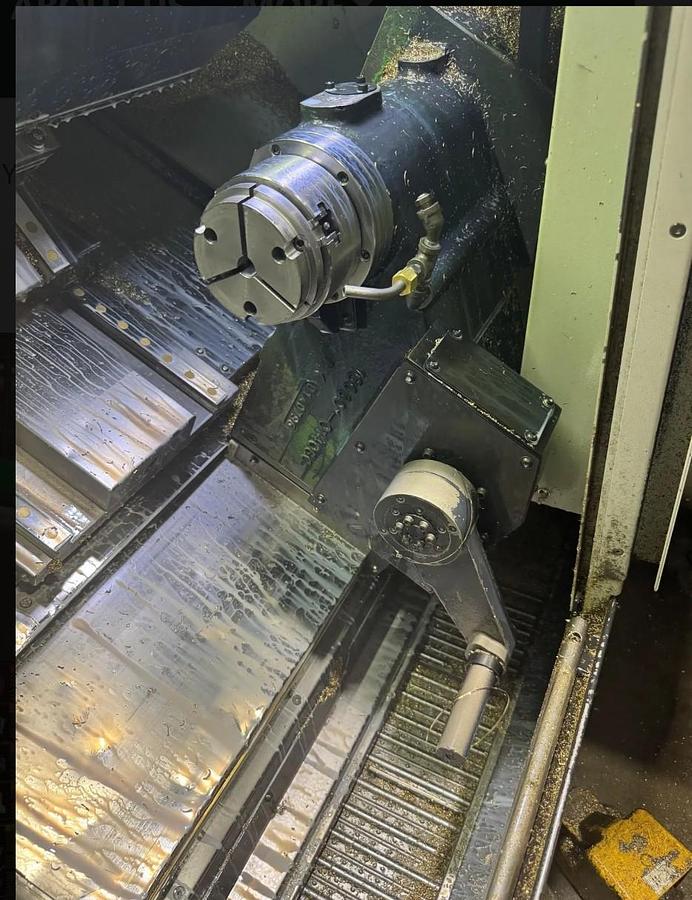

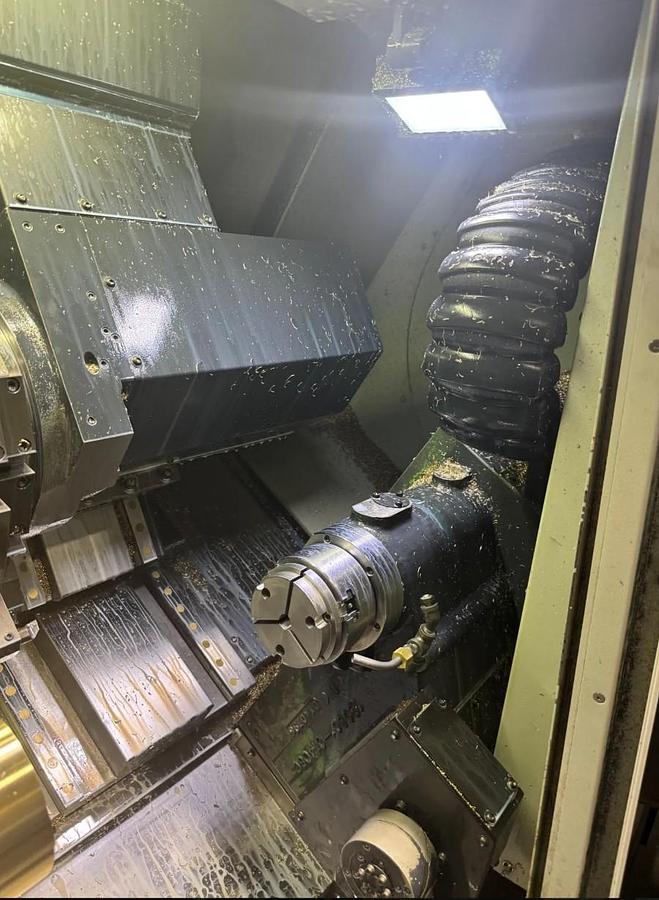

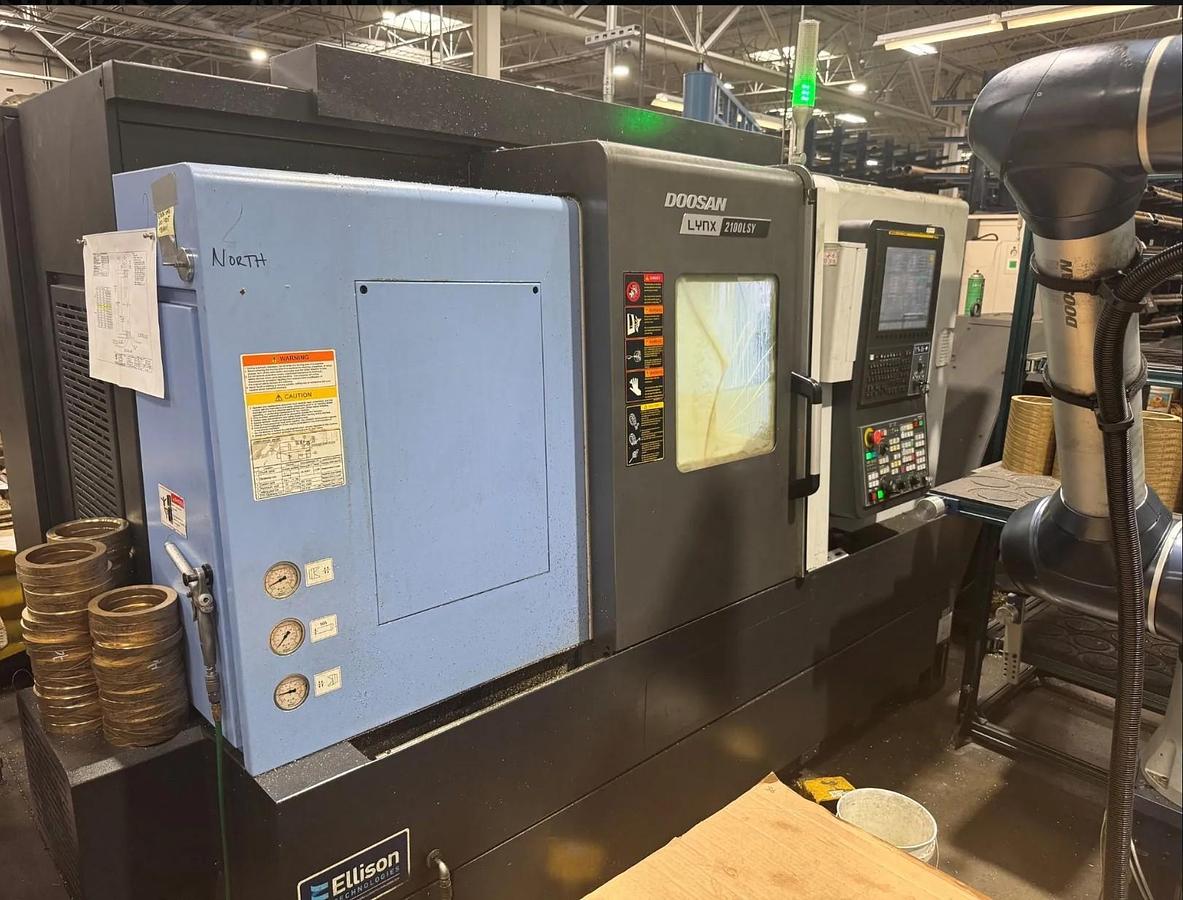

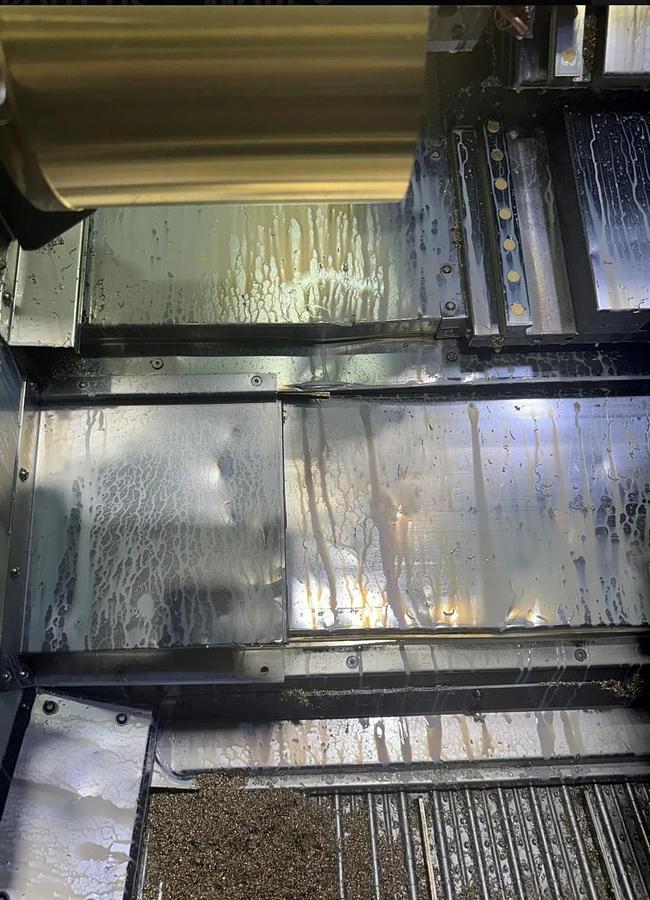

2021 DOOSAN Lynx 2100LSYB Sub Spindle Live Tooling Y-Axis CNC Lathe

Excellent Condition

FANUC i Series control

4,500 RPM Main Spindle

6,000 RPM Sub Spindle

6,000 RPM Live Tooling

8" 3-Jaw Hydraulic Samchully Main Chuck

5.3" 3-Jaw Sub Chuck

2.6" Bar Capacity

23.6" Swing over bed

15.7" Swing over carriage

11.8" Maximum turning diameter

20.0" Maximum turning length

30.4" Distance between main and sub spindle nose

8.07" X axis travel

±2.065” Y-Axis travel

22.0" Z-Axis travel

12 Station Turret

Sub Spindle

65 psi multi-stage coolant pumps

12 Station Turret / 24 Position Indexing

1,417 ipm Z axis rapid traverse

Full contouring C-Axis on main and sub spindle

Rigid Tapping

20 HP Motor

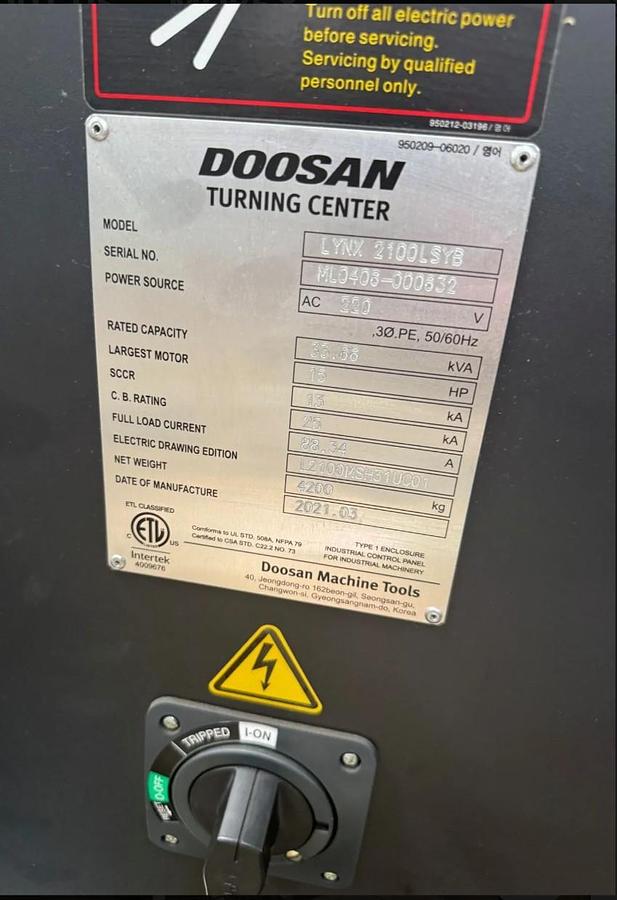

Serial Number:ML0406-000632
