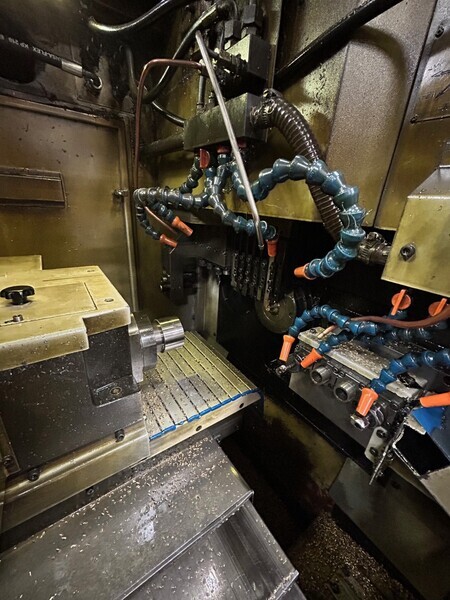

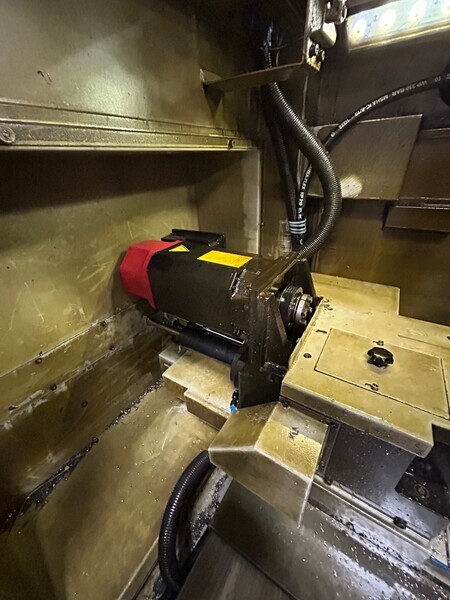

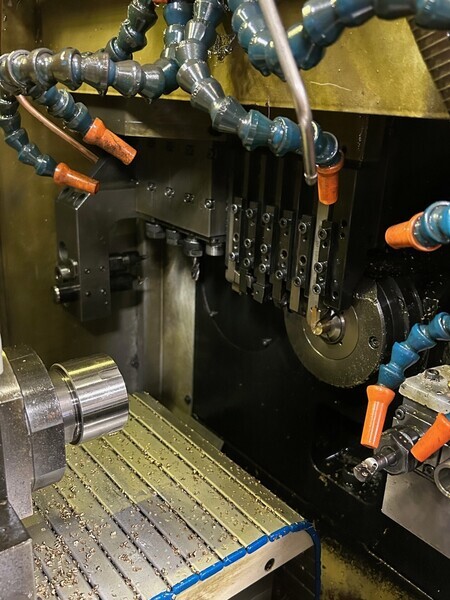

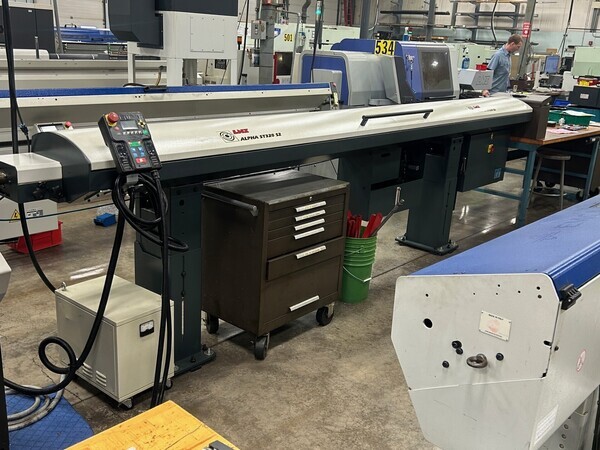

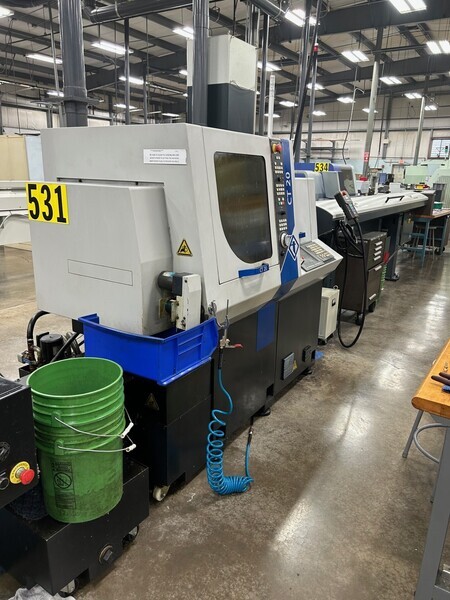

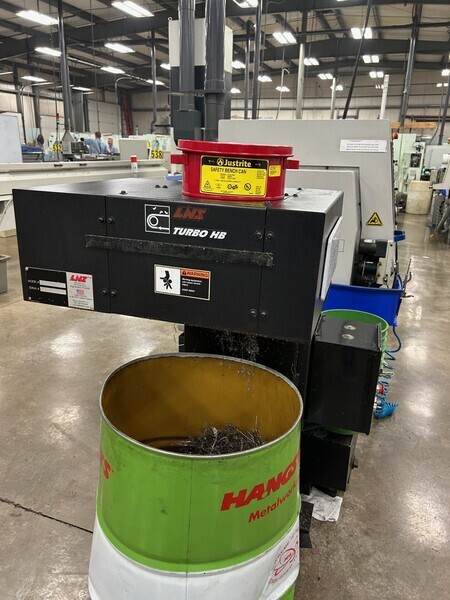

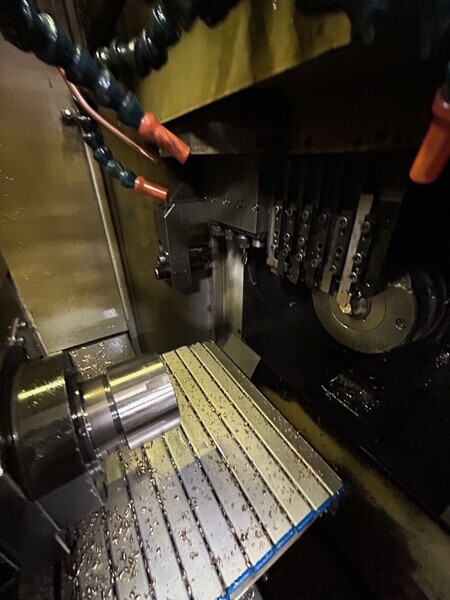

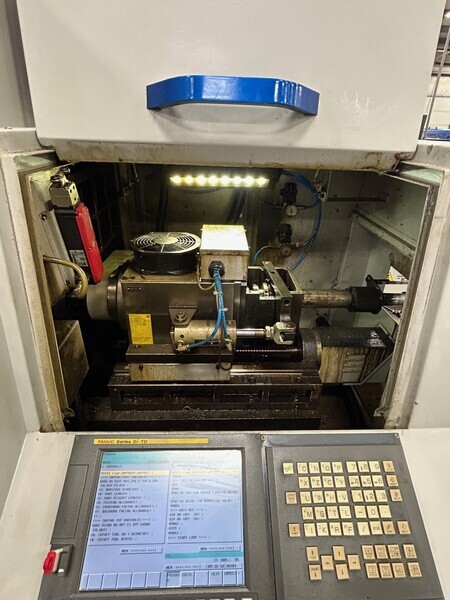

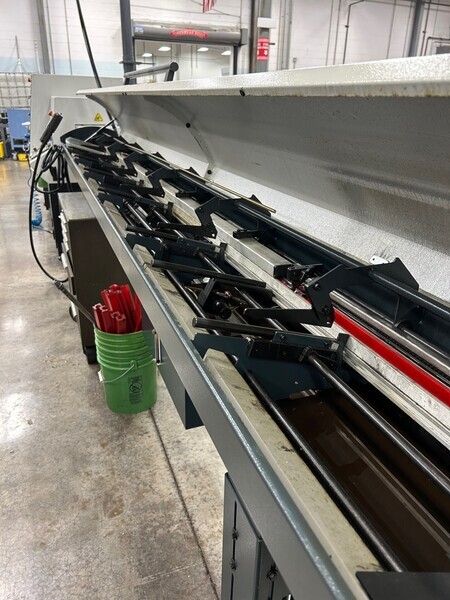

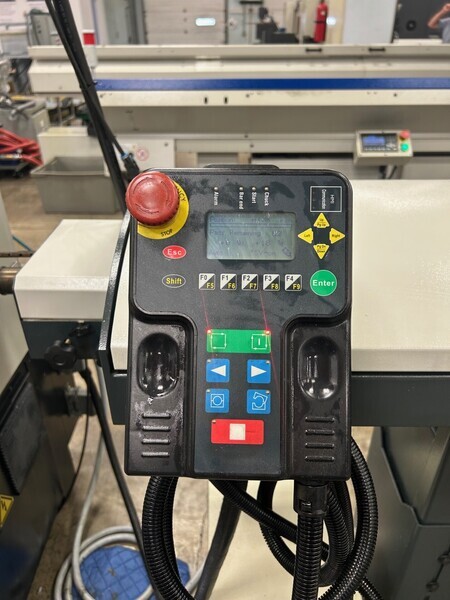

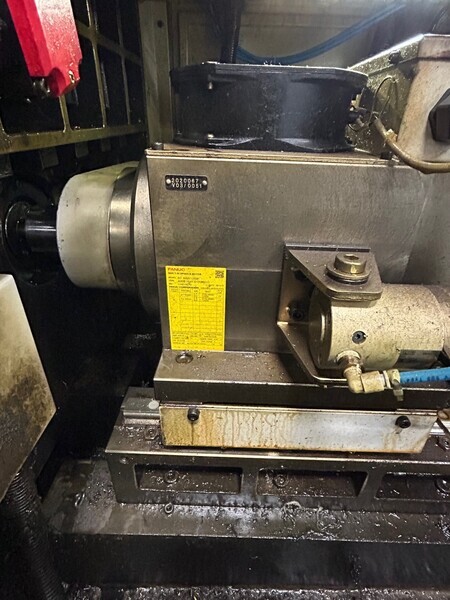

2017 TORNOS CT20 CNC Swiss Lathe with Bar Feeder

Main spindle

20mm Max. bar diameter

8,000 rpm spindle

C-Axis

Standard workpiece length with guide bush 210mm

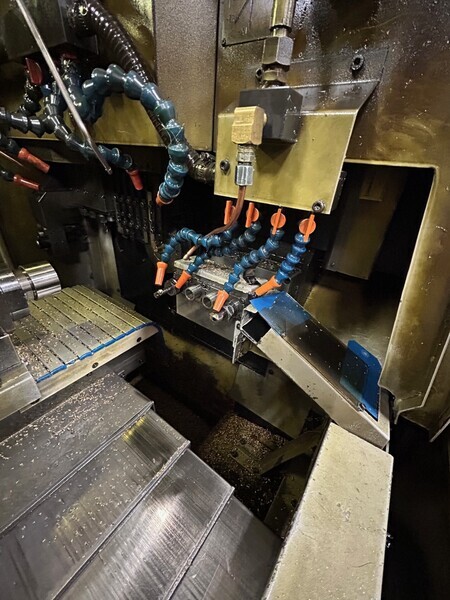

Max number of turning tools 6

Turning tool section 12x12

Max. drilling diameter (front/rear cutting tool) dia 10 mm (ER 16)

Max. tapping diameter (front/rear cutting tool) M8 (ER16)

Max. radial drilling diameter dia 7mm

Max. number of front tools (op/cop) 5 /(5)

Cross-rotating tools 4 max. (in base)

Cross-rotating tool speed 8,000 rpm

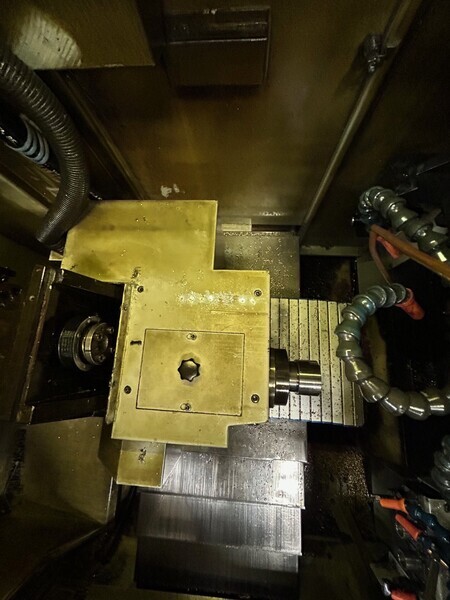

Counter spindle

20mm Max. bar diameter

80mm Max. parts length (without rear discharge)

Ejector stroke 80mm

Maximum counter spindle speed 8,000 rpm

C-Axis

Counter operation

Max. number of tools 5

Rotating tools 5

Rotating tool speed 4,000 rpm

Machining for main operation with back slide

Rotating tools (next to the counter spindle) 2 maximum (option)

Rotating tool speed rpm 8,000

Drive power capacity Counter spindle motor

Max. number of tools 27

Tooling breakdown in operation/ counter operation (with options) 17 /10

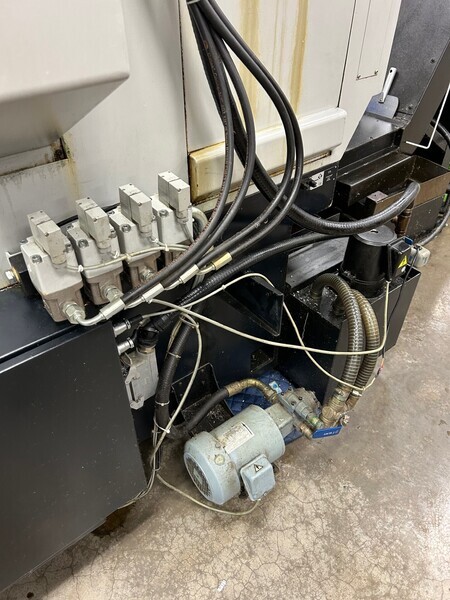

210 Liter Coolant Tank & Pump
